Main Relay (Computer/Fuel System): Diagrams

8w-10-2:



8w-10-6:

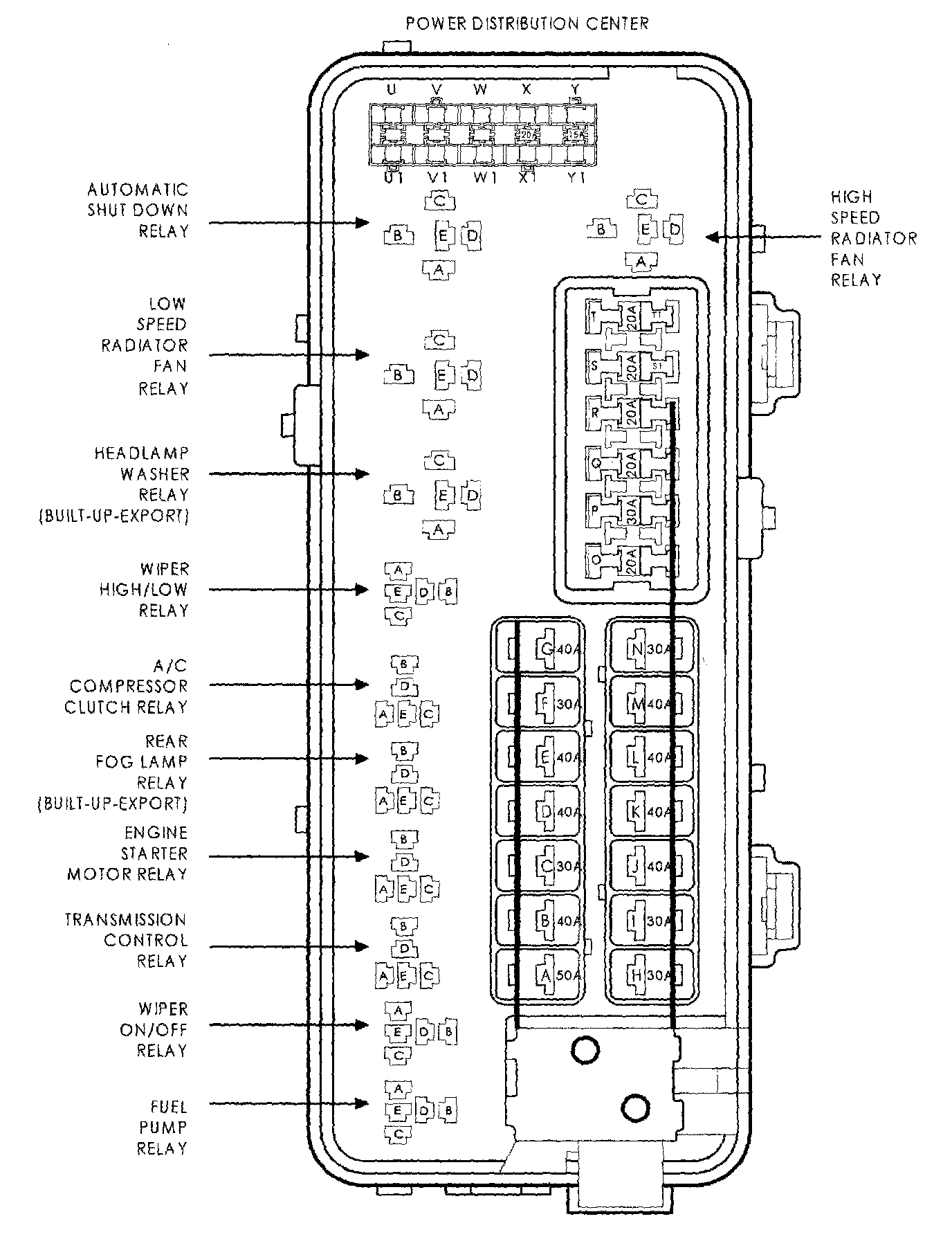

Power Distribution Center:

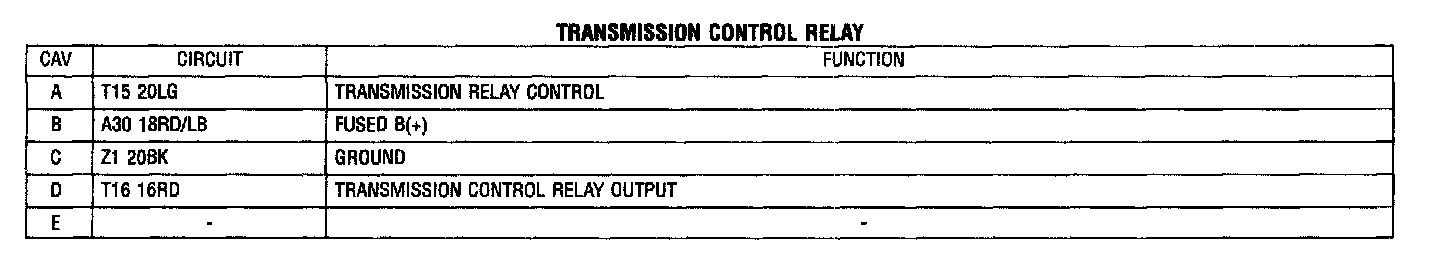

Transmission Control Relay:
