Checking IAC Motor

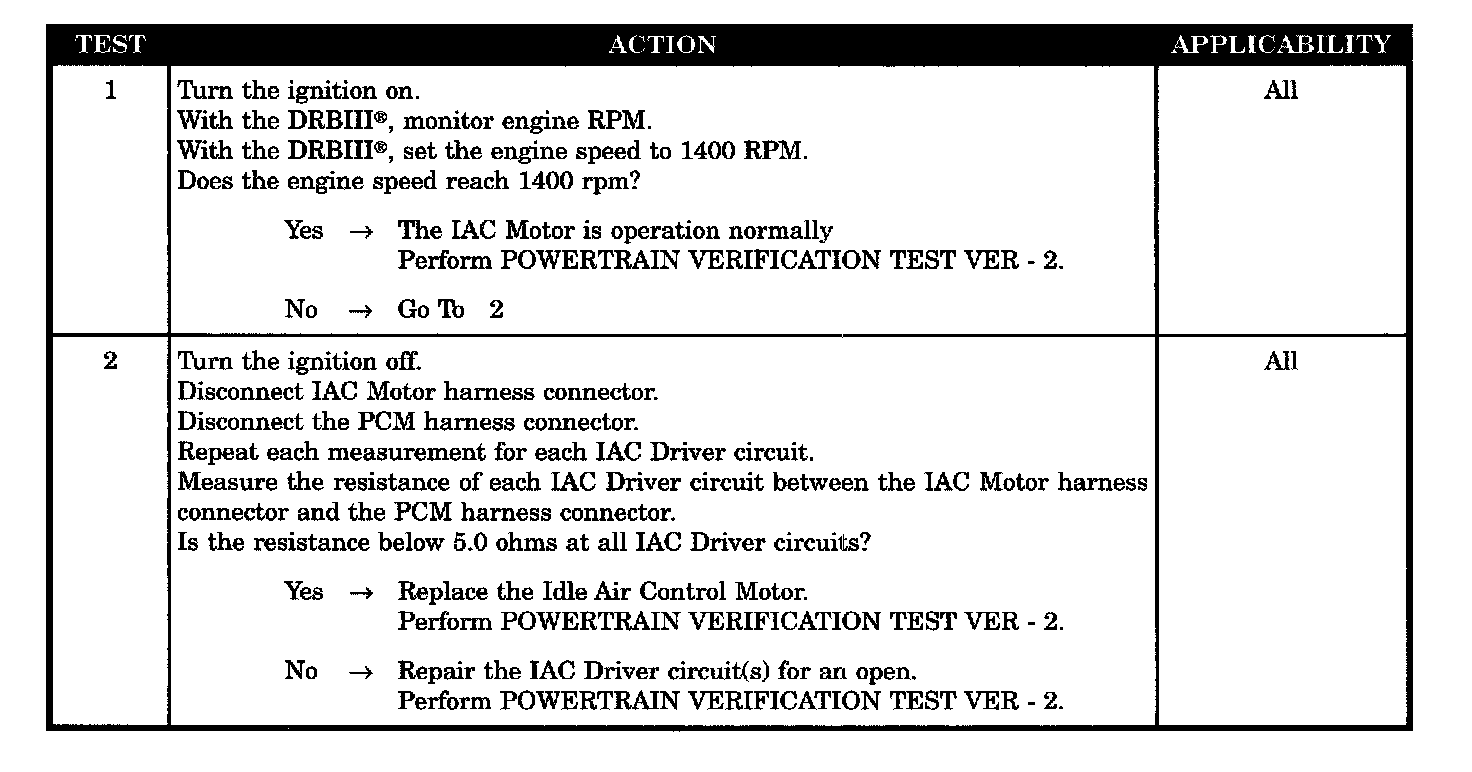

Tests 1 - 2:





SYMPTOM
*CHECKING IAC MOTOR

POSSIBLE CAUSES
- IAC motor operation
- IAC driver circuits open
- IAC motor
