Checking Radiator Fan Relay Output

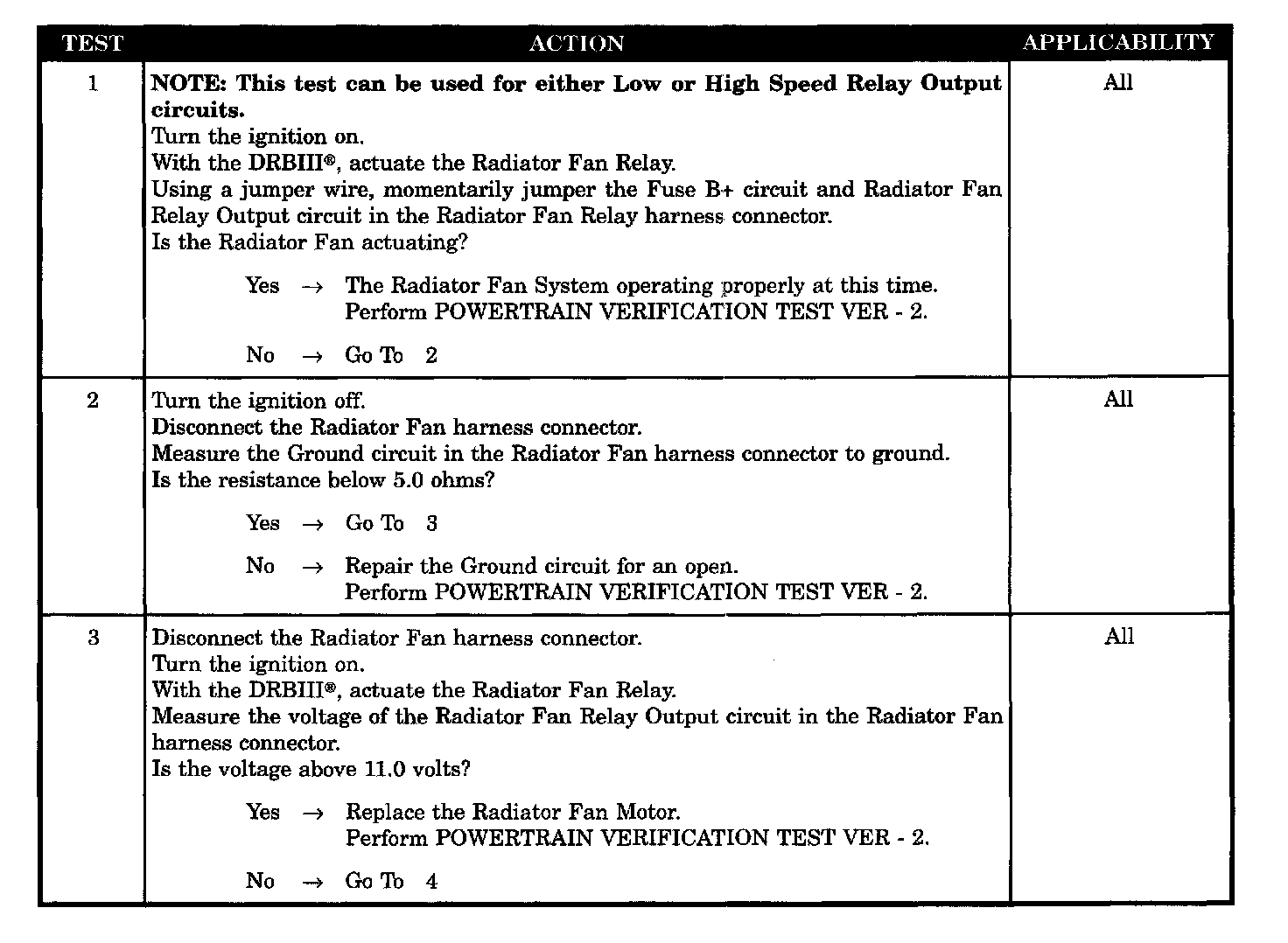

Tests 1 - 3:

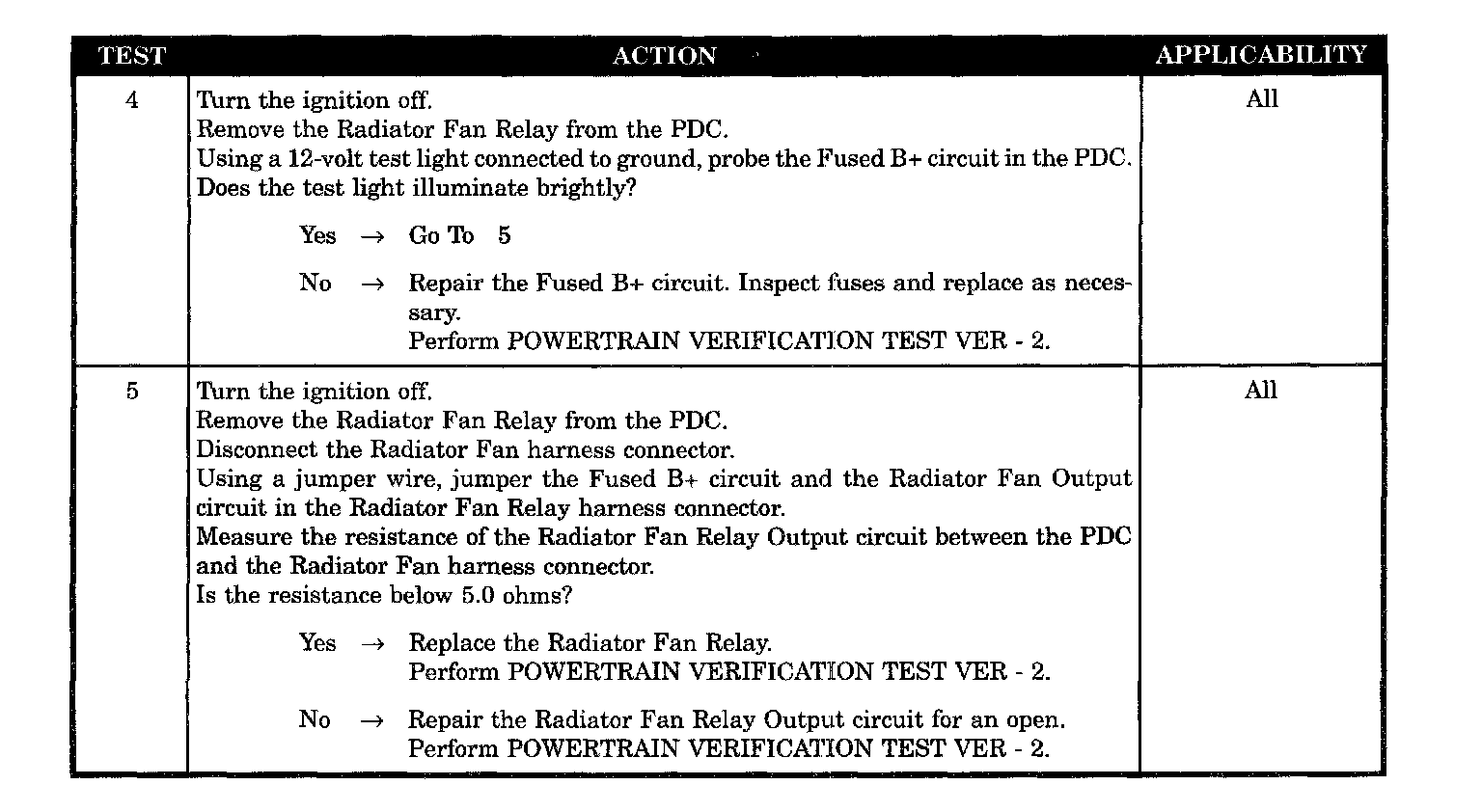

Tests 4 - 5:





SYMPTOM
*CHECKING RADIATOR FAN RELAY OUTPUT

POSSIBLE CAUSES
- Radiator fan relay operation
- Ground circuit open
- Radiator fan motor
- Fused B+ circuit
- Radiator fan relay output circuit
- Radiator fan relay
