Electrical Component Locator: Grounds
GROUNDS LOCATION
| Component | Location |
|---|---|
| G100 (2.7L) | At right rear side of engine. See Figure. |
| G100 (3.2L) | On right cylinder head. See Figure. |
| G100 (3.5L) | On right cylinder head. See Figure. |
| G101 (2.7L) | At left rear side of engine. See Figure. |
| G101 (3.2L) | On left side of engine. See Figure. |
| G101 (3.5L) | On left side of engine. See Figure. |
| G102 | Behind left headlight. |
| G103 | Behind left headlight. |
| G104 | Behind left headlight. |
| G105 | Near right horn. |
| G106 | Near right horn. |

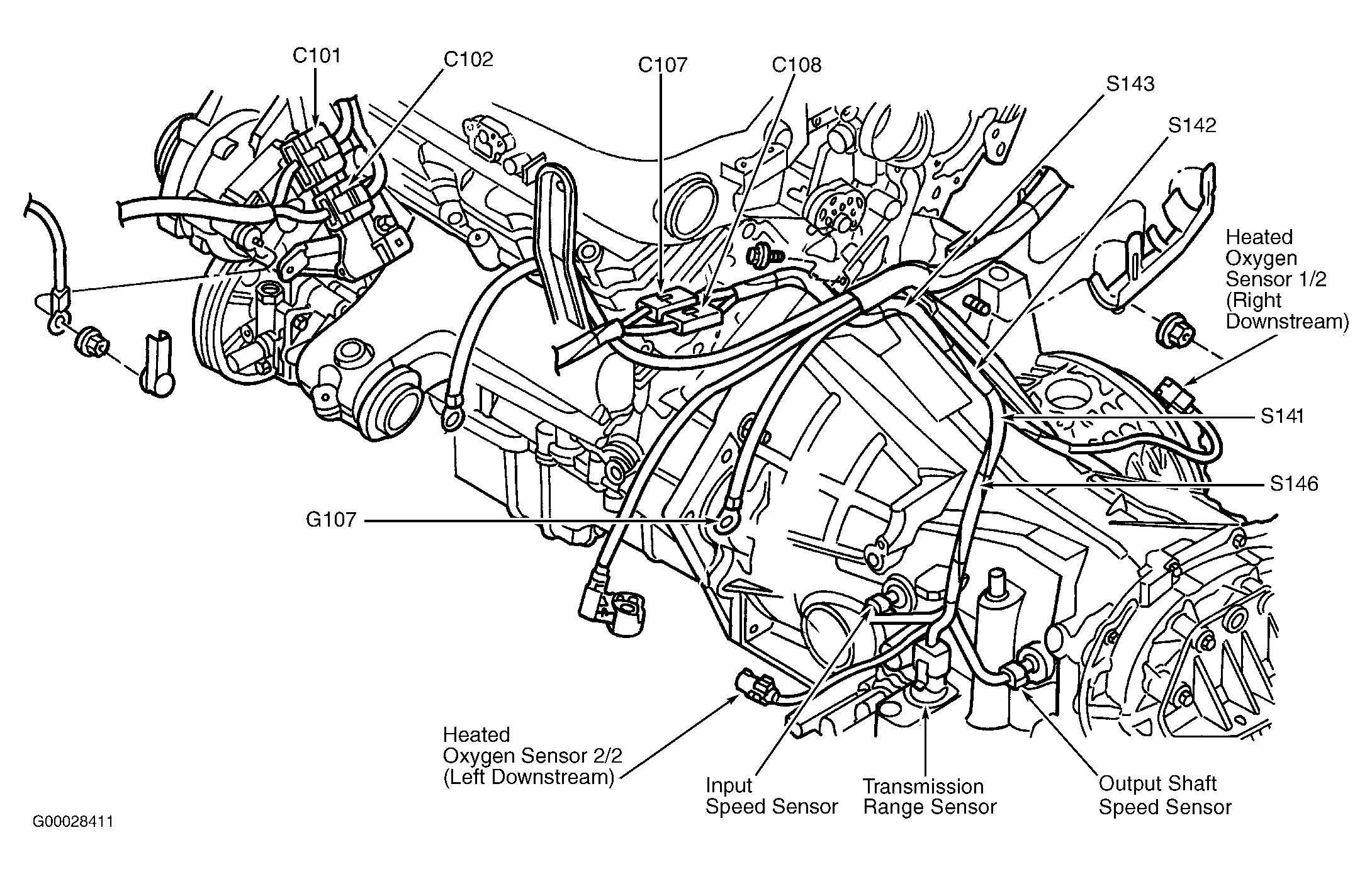

| G107 | On left side of transmission bellhousing, near starter. See Figure. |
| G108 | Near power distribution center. |
| G200 | At lower center of dash. |
| G201 | At lower center of dash. |
| G300 | Under driver seat. |
| G301 | Under passenger seat. |
| G303 | Fuel pump ground. |
| G400 | Deck lid ground. |
| G401 | Right "C" pillar. |
