Electrical Component Locator: Miscellaneous

MISCELLANEOUS LOCATION

Component Location

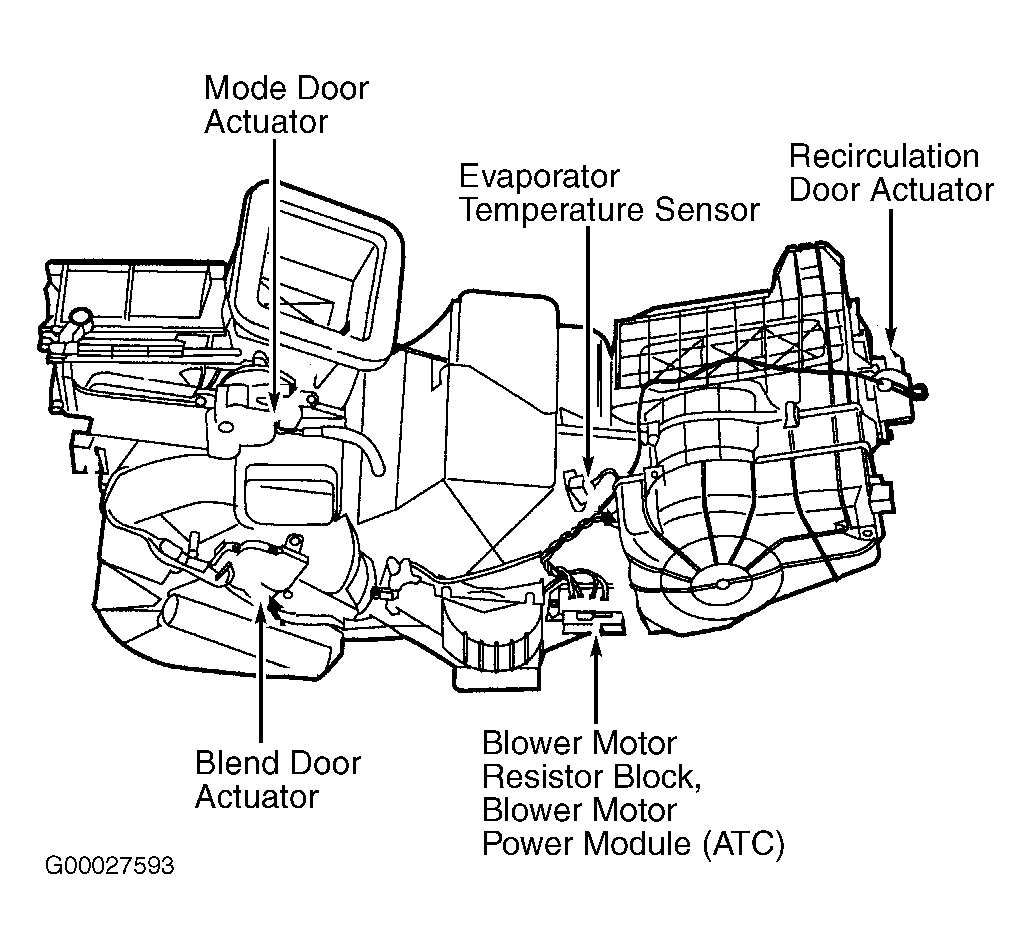

Blower Motor Resistor Block On lower right side of HVAC assembly. See Figure.
Clockspring Behind steering wheel, in steering column.
Data Link Connector (DLC) Below dash, to left of steering column.
Radio Power Amplifier In right rear of trunk area.
