Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

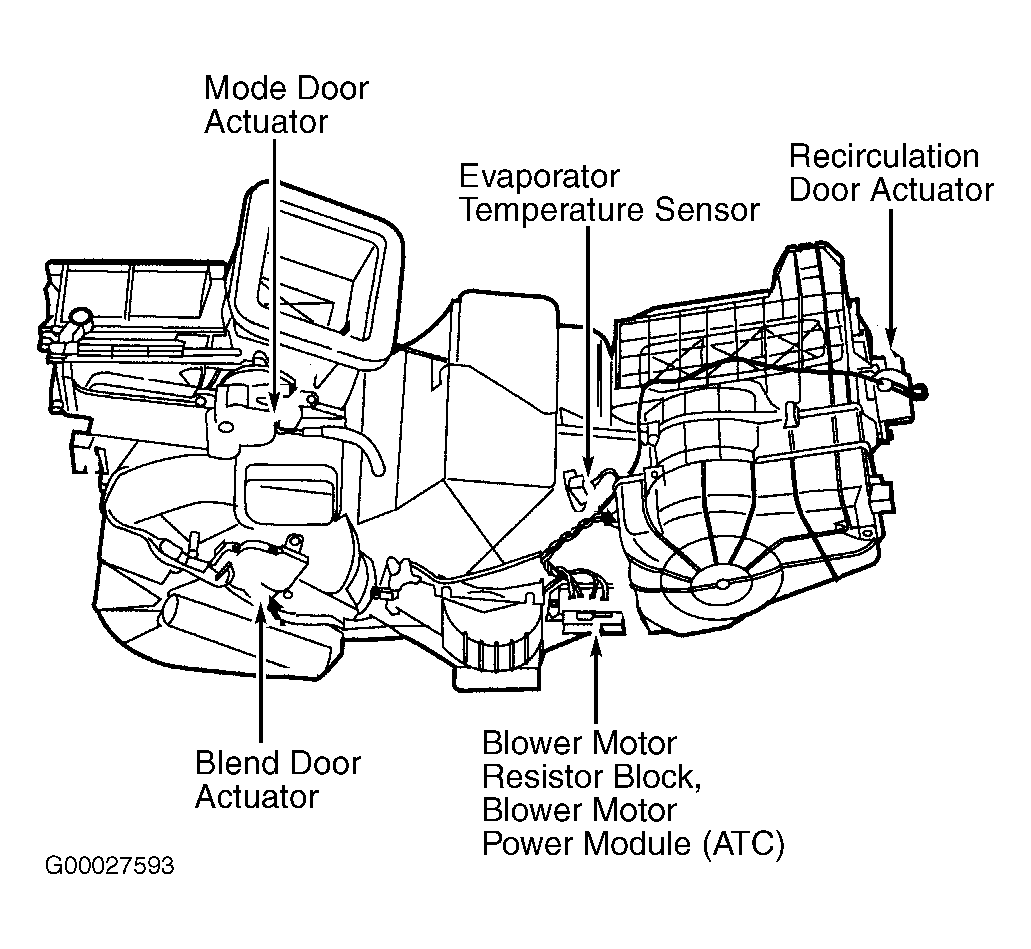

| Blower Motor Power Module (ATC) | At lower right side of HVAC assembly. See Figure. |
| Body Control Module | At left end of dash, attached to junction block. |
| Controller Anti-Lock Brake | At left fender side shield, on bottom of hydraulic control unit. |
| Memory Heated Seat/Mirror Module | On bottom of driver's seat. |
| Occupant Restraint Controller | On tunnel floor pan, forward of center console. |

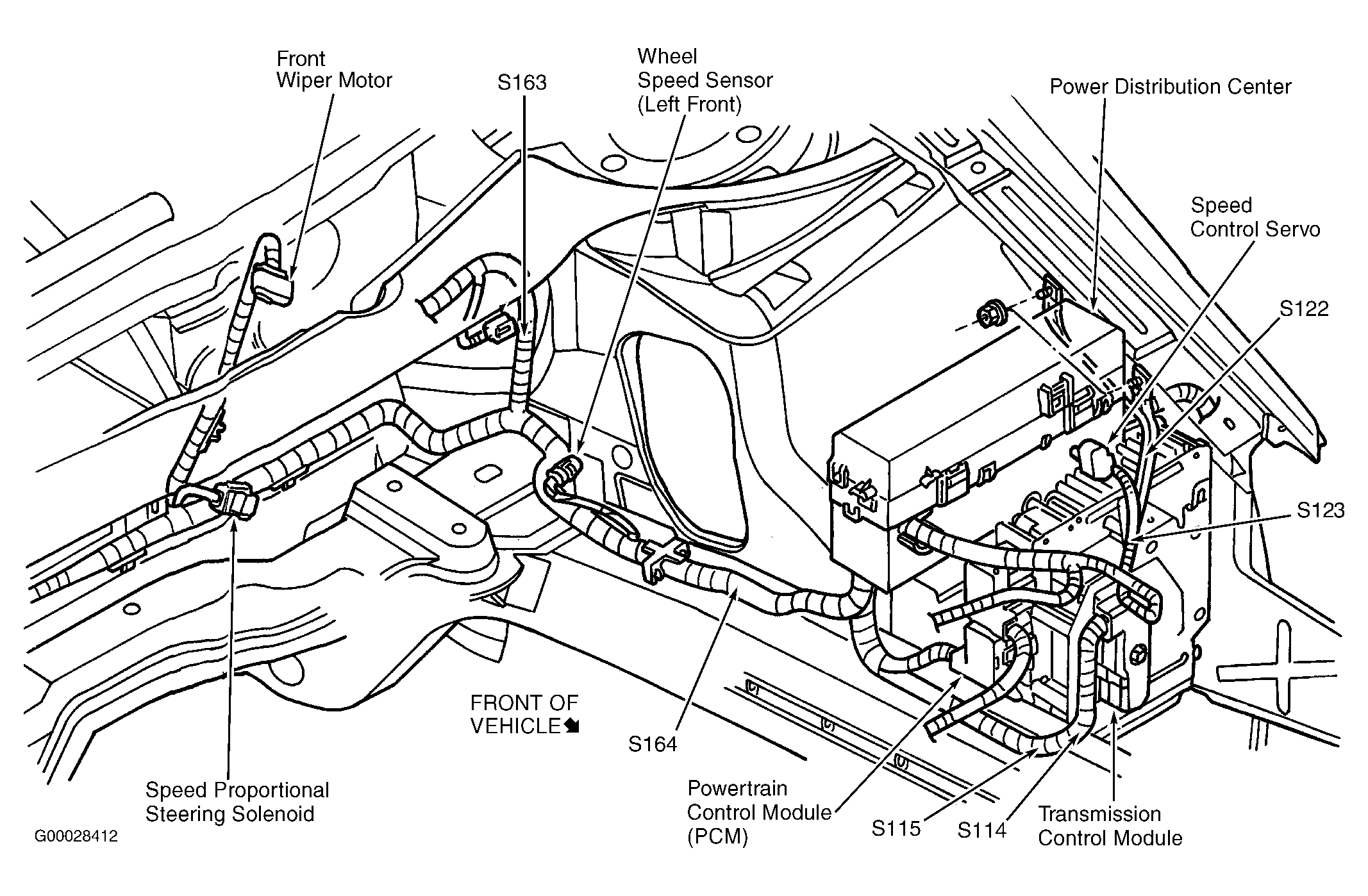

| Powertrain Control Module (PCM) | On left side of engine compartment. See Figure. |
| Rear Window Defogger/Antenna Module | In right "C" pillar, behind trim panel. |
| Sentry Key Immobilizer Module | In steering column. |
| Sun Roof Control Module | At rear of sun roof frame assembly. |
| Transmission Control Module | In engine compartment, between left front fender & battery. See Figure. |
