Electrical Component Locator: Splices
SPLICES LOCATION
| Component | Location |
|---|---|

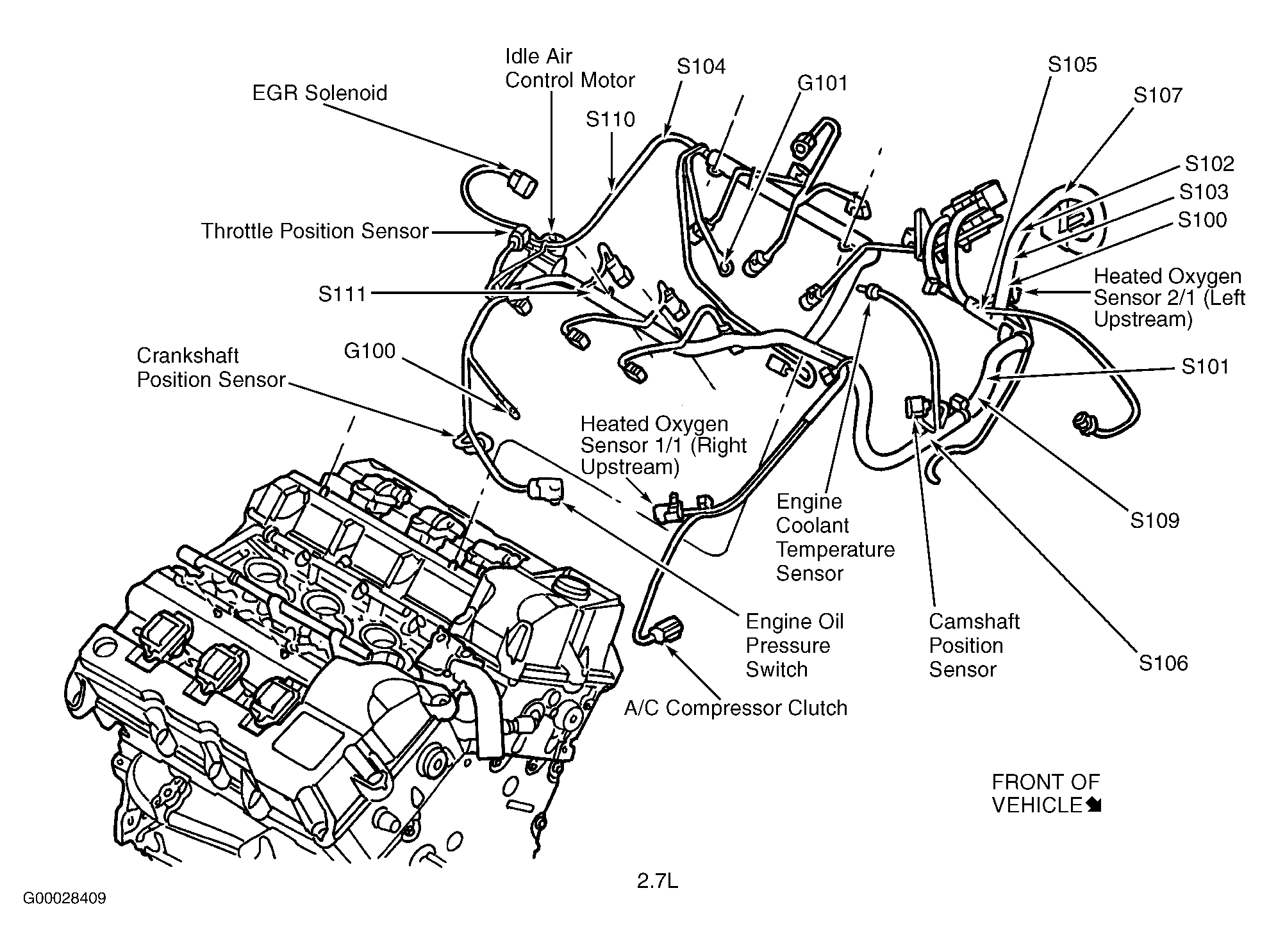

| S100 (2.7L) | In engine harness, in breakout for powertrain control module. See Figure. |
| S100 (3.2L) | In engine harness, in breakout for right side of engine. See Figure. |
| S100 (3.5L) | In engine harness, in breakout for right side of engine. See Figure. |
| S101 | In engine harness, at front of engine. See Figure. |
| S102 (2.7L) | In engine harness, in breakout for powertrain control module. See Figure. |
| S102 (3.2L) | In engine harness, in breakout for powertrain control module. See Figure. |
| S102 (3.5L) | In engine harness, in breakout for powertrain control module. See Figure. |
| S103 (2.7L) | In engine harness, in breakout for powertrain control module. See Figure. |
| S103 (3.2L) | In front engine harness. See Figure. |
| S103 (3.5L) | In front engine harness. See Figure. |
| S104 | In engine harness, right side of engine. See Figure. |
| S105 (2.7L) | In engine harness, front of engine. See Figure. |
| S105 (3.2L) | In front engine harness. See Figure. |
| S105 (3.5L) | In front engine harness. See Figure. |
| S106 (2.7L) | In engine harness, at front of engine. See Figure. |
| S106 (3.2L) | In engine harness, on right side of engine. See Figure. |
| S106 (3.5L) | In engine harness, on right side of engine. See Figure. |
| S107 (2.7L) | In engine harness, in breakout for powertrain control module. See Figure. |
| S107 (3.2L) | In engine harness, in breakout for powertrain control module. See Figure. |
| S107 (3.5L) | In engine harness, in breakout for powertrain control module. See Figure. |
| S109 (2.7L) | In engine harness, between fuel injector No. 1 & fuel injector No. 4. See Figure. |
| S109 (3.2L) | In engine harness, left side of engine. See Figure. |
| S109 (3.5L) | In engine harness, left side of engine. See Figure. |
| S110 (2.7L) | In engine harness, near idle air control motor breakout. See Figure. |
| S110 (3.2L) | In engine harness, at front of engine. See Figure. |
| S110 (3.5L) | In engine harness, at front of engine. See Figure. |
| S111 (2.7L) | In engine harness, between fuel injector No. 3 & fuel injector No. 5. See Figure. |
| S111 (3.2L) | In engine harness, between fuel injector No. 1 & fuel injector No. 3. See Figure. |
| S111 (3.5L) | In engine harness, between fuel injector No. 1 & fuel injector No. 3. See Figure. |
| S112 (3.2L) | In engine harness, at front of engine. See Figure. |
| S112 (3.5L) | In engine harness, at front of engine. See Figure. |
| S114 | In headlight & dash harness, in breakout for transmission control module. See Figure. |
| S115 | In headlight & dash harness, in breakout for transmission control module. See Figure. |
| S116 | In headlight & dash harness, at left inner fender. |
| S117 | In headlight & dash harness, at left inner fender. |
| S118 | In headlight & dash harness, at left inner fender. |
| S119 | In headlight & dash harness, at left inner fender. |
| S120 | In front lighting harness, near breakout for left front lights. |
| S121 | In front lighting harness, near breakout for left front lights. |
| S122 | In headlight & dash harness, in ground breakout for power distribution center. See Figure. |
| S123 | In headlight & dash harness, in power distribution center. See Figure. |
| S124 | In headlight & dash harness, in power distribution center. |
| S125 | In headlight & dash harness, in power distribution center. |
| S127 | In headlight & dash harness, in power distribution center. |
| S128 | In headlight & dash harness, in power distribution center. |
| S130 | In front lighting harness, near breakout for left front lights. |
| S131 | In front lighting harness, near breakout for left front lights. |
| S132 | In front lighting harness, near breakout for left front lights. |
| S133 | In front lighting harness, near breakout for left front lights. |
| S134 | In front lighting harness, near breakout for left front lights. |
| S135 | In front lighting harness, near breakout for ambient temperature sensor. |
| S140 | In headlight & dash harness, in power distribution center. |
| S141 | In transmission harness, near breakout for oxygen sensors. See Figure. |
| S142 | In transmission harness, near breakout for oxygen sensors. See Figure. |
| S143 | In transmission harness, near breakout for oxygen sensors. See Figure. |
| S144 | In engine harness, in breakout to battery. |
| S145 | In engine harness, in breakout to battery. |
| S146 | In transmission harness, near breakout to output shaft speed sensor. See Figure. |
| S160 | In front fascia harness, between right & left headlights. |
| S161 | In front fascia harness, between right & left headlights. |
| S162 | In front fascia harness, between right & left headlights. |
| S163 | In headlight & dash harness, near breakout for brake fluid level switch. See Figure. |
| S164 | In headlight & dash harness, near breakout for left front wheel speed sensor. See Figure. |
| S165 | In headlight & dash harness, in power distribution center. |
| S166 | In headlight & dash harness, in power distribution center. |
| S167 | In headlight & dash harness, in power distribution center. |
| S168 | In headlight & dash harness, in power distribution center. |
| S171 | In headlight & dash harness, in power distribution center. |
| S172 | In headlight & dash harness, in power distribution center. |
| S200 | In left side instrument panel harness, near breakout to data link connector. |
| S201 | In left side instrument panel harness, near breakout to data link connector. |
| S202 | In left side instrument panel harness, near breakout to brake light switch. |
| S204 | In instrument panel harness, behind cluster. |
| S205 | At left side instrument panel harness, in breakout to C104. |
| S206 | In center instrument panel harness. |
| S207 | In center instrument panel harness. |
| S208 | In center instrument panel harness. |
| S209 | In right side instrument panel harness, in breakout to C201. |
| S210 | In A/C heater harness, near breakout to blend door actuator. |
| S211 | In A/C heater harness, near breakout to blend door actuator. |
| S212 | In A/C heater harness, near breakout to blend door actuator. |
| S213 | In left side instrument panel harness, near breakout for instrument cluster connector C1. |
| S214 | In instrument panel harness, behind instrument cluster. |
| S215 | In left side instrument panel harness, in breakout to C103. |
| S216 | In breakout to right radio remote switch. |
| S217 | In breakout to right radio remote switch. |
| S218 | In breakout to left speed control switch. |
| S219 | In breakout of right speed control switch. |
| S220 | In breakout to A/C heater controls. |
| S221 | In breakout to right horn switch. |
| S300 | In body harness, at left kick panel. |
| S301 | In body harness, at left front sill. |
| S302 | In body harness, at left front sill. |
| S303 | In right side body harness. |
| S304 | In right side body harness. |
| S305 | In left side body harness, under driver seat. |
| S306 | In rear body harness. |
| S307 | In left rear body harness. |
| S308 | In left rear body harness. |
| S309 | In left rear body harness. |
| S310 | In left rear body harness. |
| S311 | In right front door harness. |
| S312 | In left front door harness. |
| S313 | In right front door harness. |
| S314 | In left front door harness. |
| S315 | In left front door harness, near breakout for courtesy light. |
| S316 | In left front door harness, between courtesy light & door speaker breakouts. |
| S317 | In left front door harness, near breakout for courtesy light. |
| S318 | In left front door harness, between courtesy light & door speaker breakouts. |
| S319 | In headliner harness, near breakout for day/night mirror. |
| S320 | In headliner harness, near breakout for day/night mirror. |
| S321 | In headliner harness, near breakout for day/night mirror. |
| S322 | In headliner harness, near breakout for day/night mirror. |
| S323 | In headliner harness, near breakout for day/night mirror. |
| S324 | In headliner harness, near breakout for left rear door courtesy light. |
| S325 | In headliner harness, near breakout for left rear door courtesy light. |
| S326 | In headliner harness, near breakout for right rear door courtesy light. |
| S327 | In headliner harness, near breakout for right rear door courtesy light. |
| S328 | In power seat harness, at seat. |
| S329 | In right side body harness. |
| S330 | In right side body harness. |
| S331 | In left side body harness. |
| S332 | In right side body harness. |
| S334 | In left side body harness. |
| S335 | In left side body harness. |
| S336 | In body harness, at left kick panel. |
| S337 | In rear body harness. |
| S338 | In right side body harness. |
| S341 | In memory seat harness, near breakout to seat motors. |
| S342 | In memory seat harness, near heated seat connector. |
| S343 | In memory seat harness, near heated seat connector. |
| S345 | In body harness, at left front sill. |
| S346 | In body harness, at left front sill. |
| S347 | In body harness, at left front sill. |
| S348 | In breakout for fuel pump module. |
| S349 | In breakout to left air bag module. |
| S400 | In rear fascia harness. |
| S400 | In rear fascia harness. |
| S401 | In rear fascia harness. |
| S402 | In left taillight harness. |
| S403 | In left taillight harness. |
| S404 | In left taillight harness. |
| S405 | In deck lid harness. |
| S406 | Near breakout to CHMSL. |
| S407 | In right taillight harness. |
| S408 | In right taillight harness. |
| S409 | In right taillight harness. |
| S410 | In breakout to right rear foglight. |
| S411 | Near breakout to sun roof motor connector. |
| S412 | Near breakout to sun roof motor connector. |
| S420 | In breakout to left rear foglight. |
| S421 | In rear fascia harness. |
