Wiring Diagrams

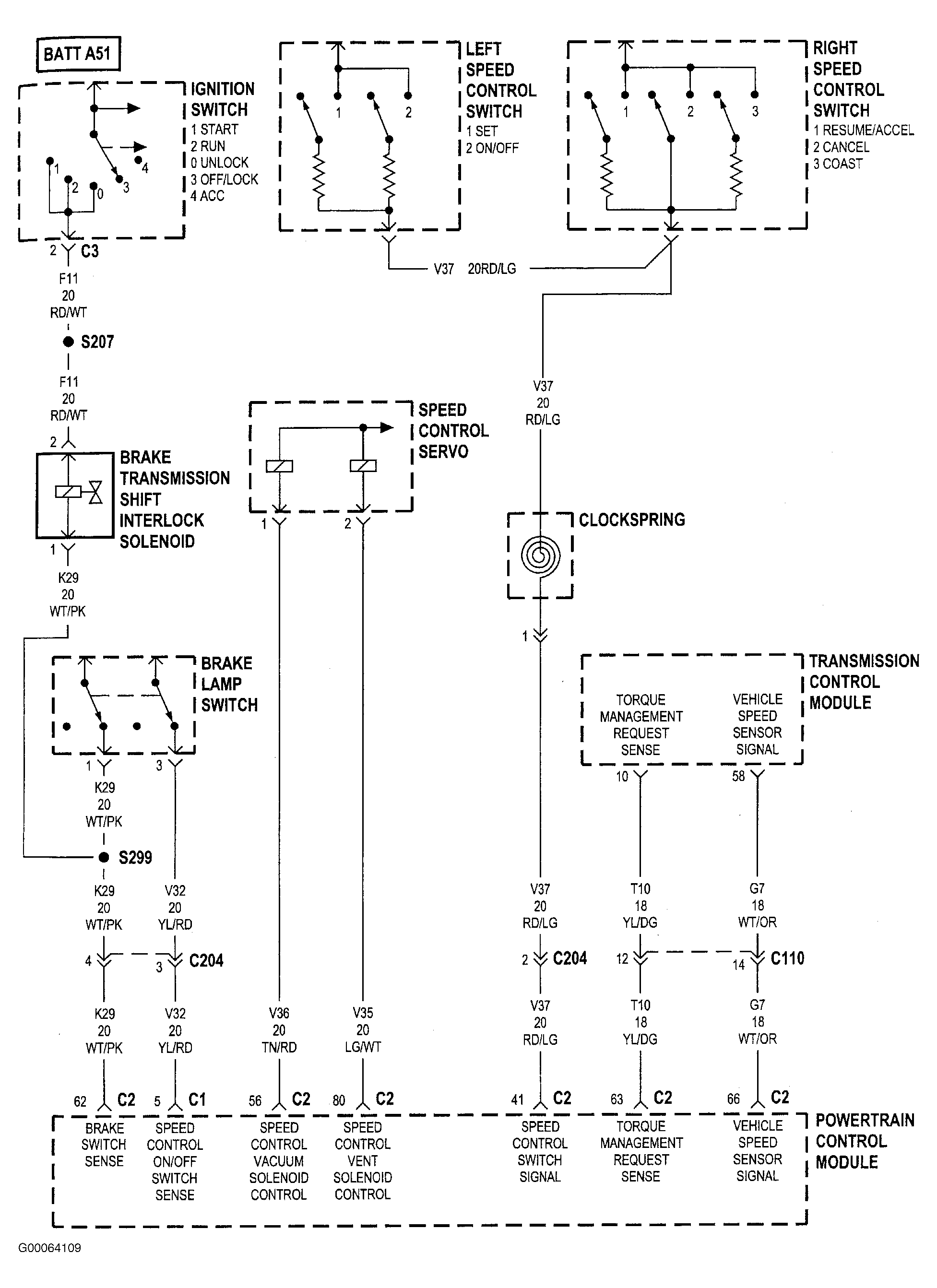

Fig 1: Shift Interlock System Wiring Diagram (2001 Concord, Intrepid, LHS & 300M)

Fig 2: Shift Interlock System Wiring Diagram (2001 Neon)

Fig 3: Shift Interlock System Wiring Diagram (2001-02 Prowler)

Courtesy of DAIMLERCHRYSLER CORP.

Fig 4: Shift Interlock System Wiring Diagram (2001-02 PT Cruiser)

Fig 5: Shift Interlock System Wiring Diagram (2001 Sebring Convertible)

Fig 6: Shift Interlock System Wiring Diagram (2001 Sebring Sedan & Stratus Sedan)

Fig 7: Shift Interlock System Wiring Diagram (2002 Concord, Intrepid & 300M)

Fig 8: Shift Interlock System Wiring Diagram (2002 Neon)

Fig 9: Shift Interlock System Wiring Diagram (2002 Sebring Convertible, Sebring Sedan & Stratus Sedan)
