Component Locations

NOTE: For component locations, see Fig 1-Fig 9 .
COMPONENT LOCATIONS

Component Location
Controller Anti-Lock Brake (CAB) Module Left Side Of Engine Compartment, At Master Cylinder
Data Link Connector (DLC) Under Left Side Of Instrument Panel, Near Steering Column
Driver Air Bag Module Center Of Steering Wheel
Fuse Block Left Side Of Instrument Panel
Electro-Mechanical Instrument Cluster (EMIC) Integral Part Of Instrument Cluster
Occupant Restraint Controller (ORC) Under Center Floor Console
Passenger Air Bag Module Right Side Of Instrument Panel
Powertrain Control Module (PCM) Engine Compartment, Behind Master Cylinder
Power Distribution Center (PDC) Left Rear Of Engine Compartment, Behind Air Filter
Remote Keyless Entry (RKE) Module Center Of Instrument Panel, Under Top Cover
Sentry Key Immobilizer Module (SKIM) In Steering Column, Next To Ignition Switch
Side Impact Air Bag Control Module (SIACM) In Base Of Left Or Right "B" Pillar
Transmission Control Module (TCM) On Left Frame Rail

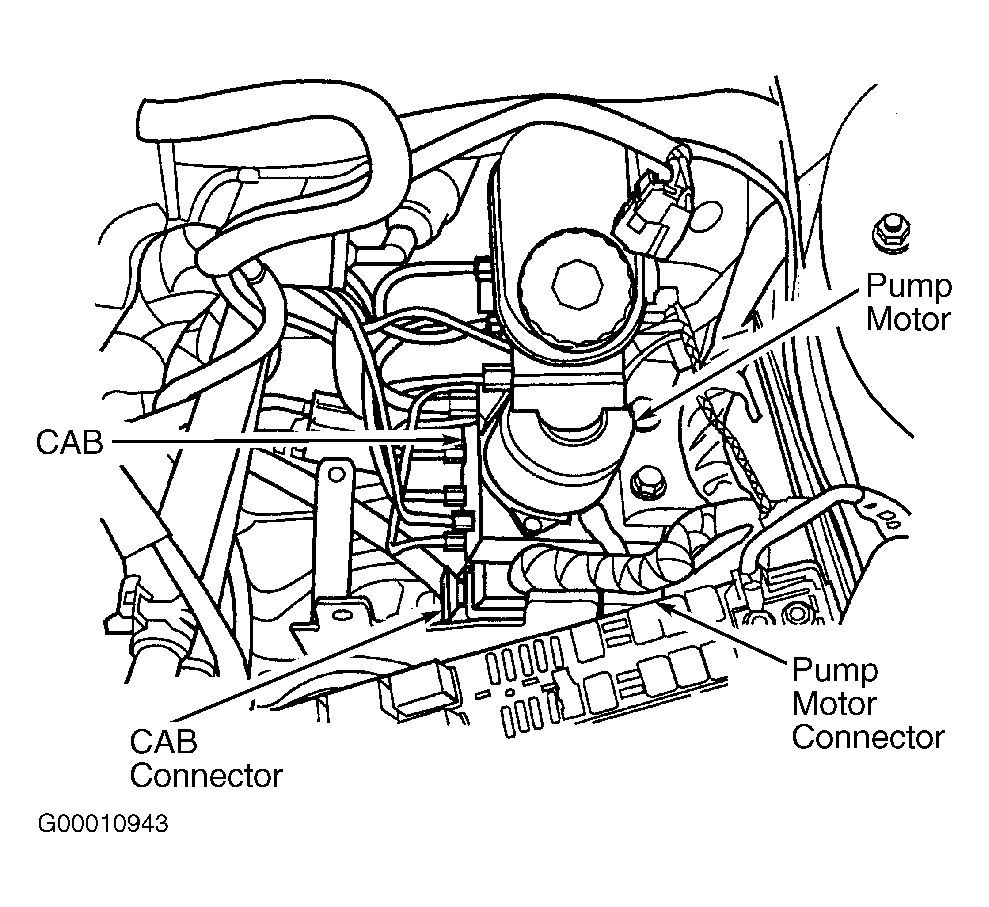

Fig 1: Locating Controller Anti-Lock Brake (CAB) Module
G00010943Courtesy of CHRYSLER CORP.
Fig 2: Locating Components
G00010944Courtesy of CHRYSLER CORP.

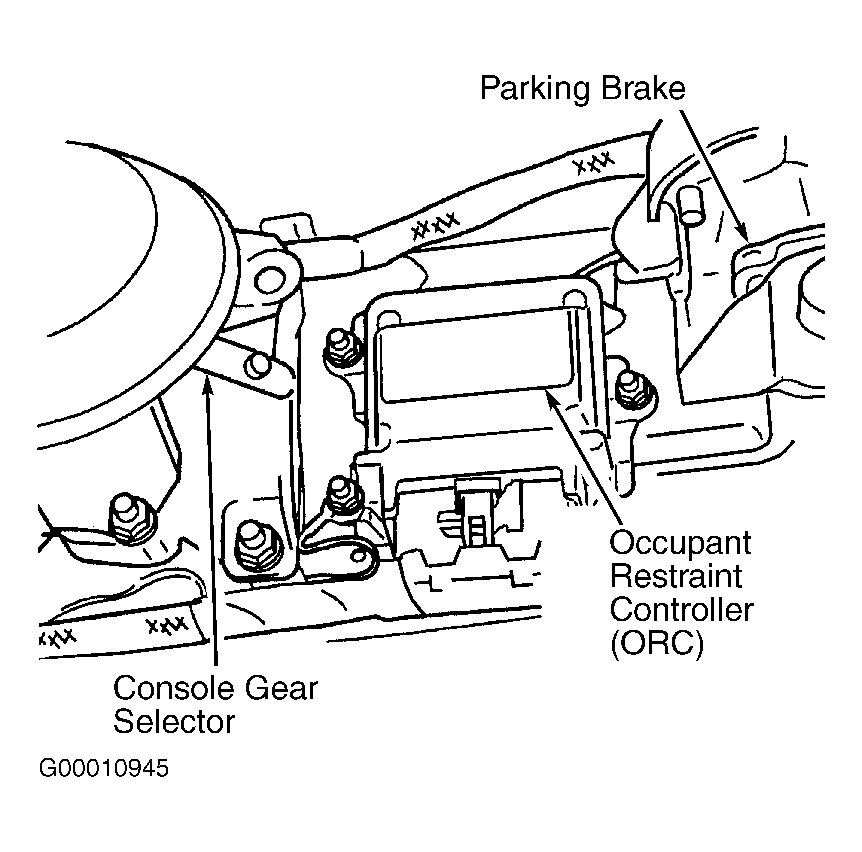

Fig 3: Locating Occupant Restraint Controller (ORC)
G00010945Courtesy of CHRYSLER CORP.

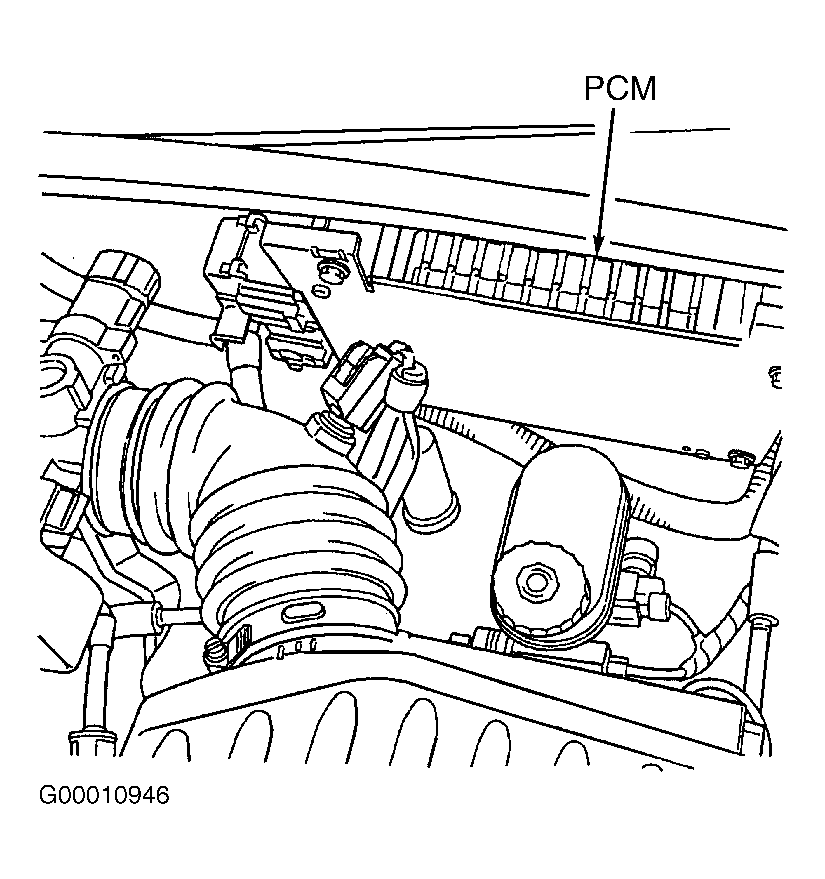

Fig 4: Locating Powertrain Control Module (PCM)
G00010946Courtesy of CHRYSLER CORP.

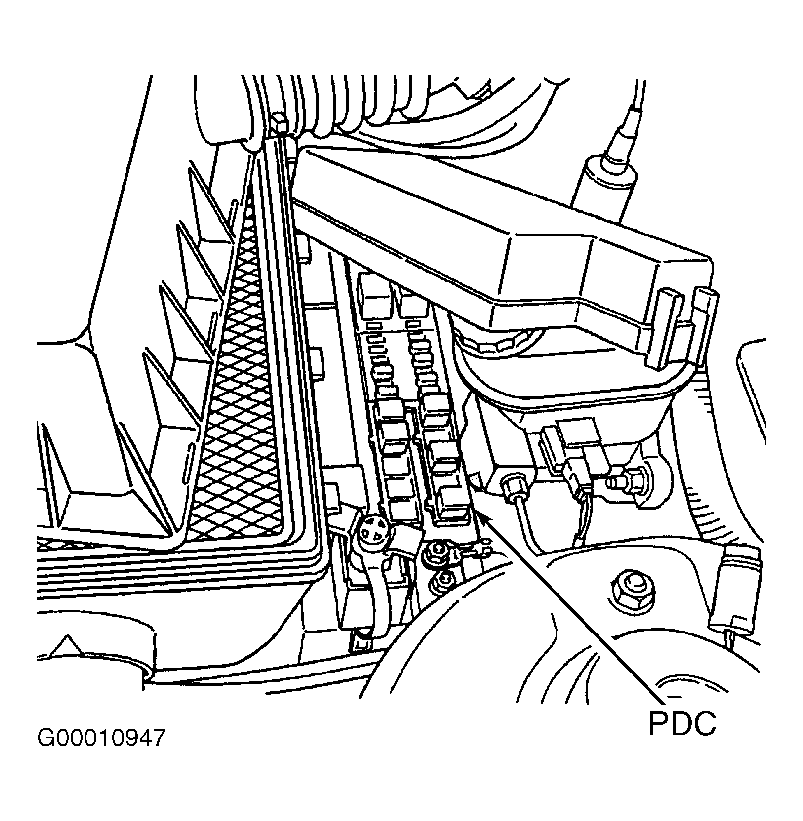

Fig 5: Locating Power Distribution Center (PDC)
G00010947Courtesy of CHRYSLER CORP.

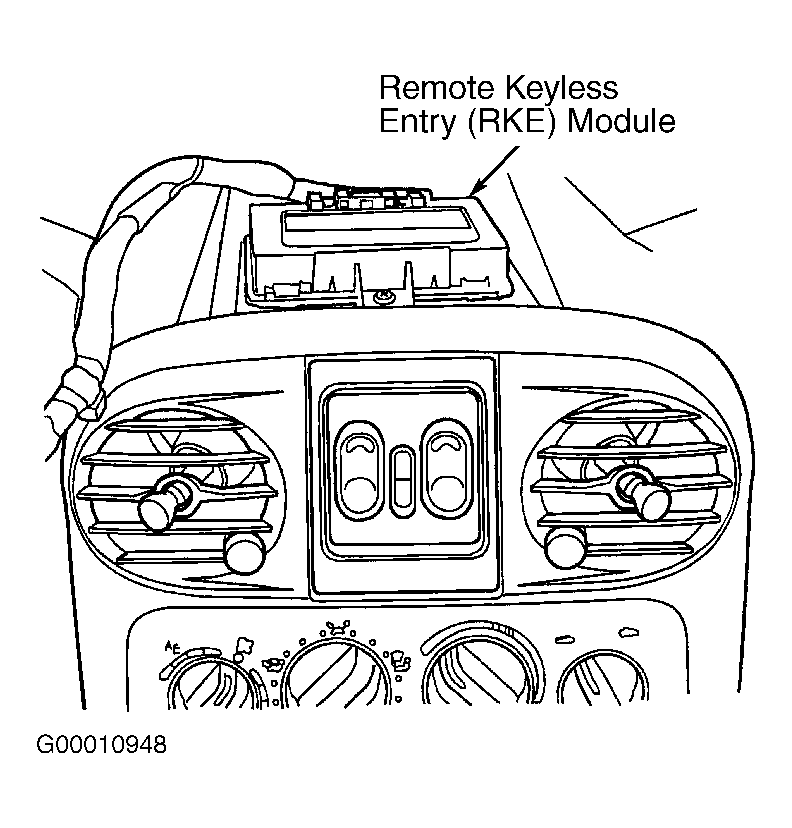

Fig 6: Locating Remote Keyless Entry (RKE) Module
G00010948Courtesy of CHRYSLER CORP.

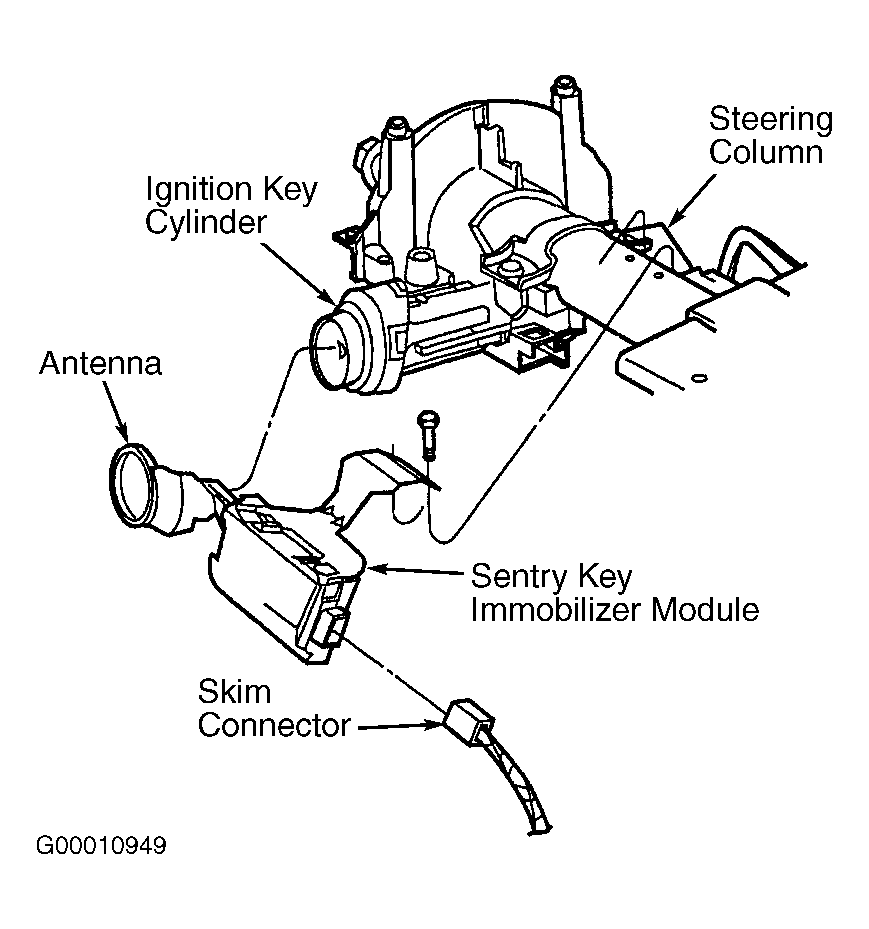

Fig 7: Locating Sentry Key Immobilizer Module (SKIM)
G00010949Courtesy of CHRYSLER CORP.

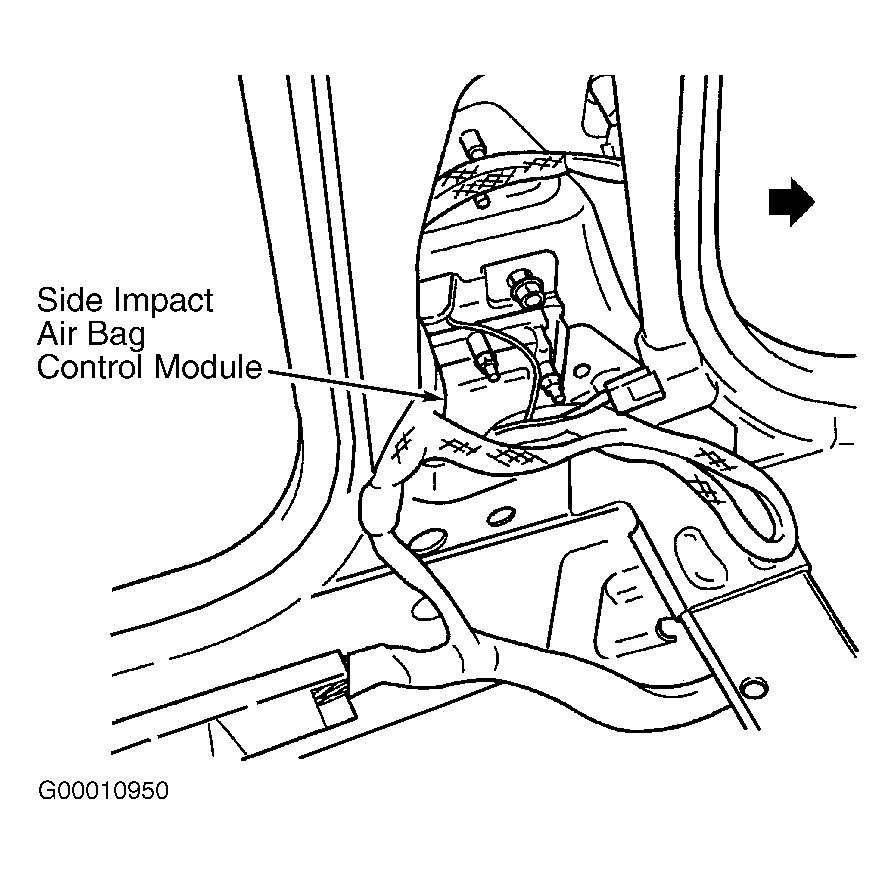

Fig 8: Locating Left Side Impact Air Bag Control Module (SIACM); Right Side Is Similar
G00010950Courtesy of CHRYSLER CORP.

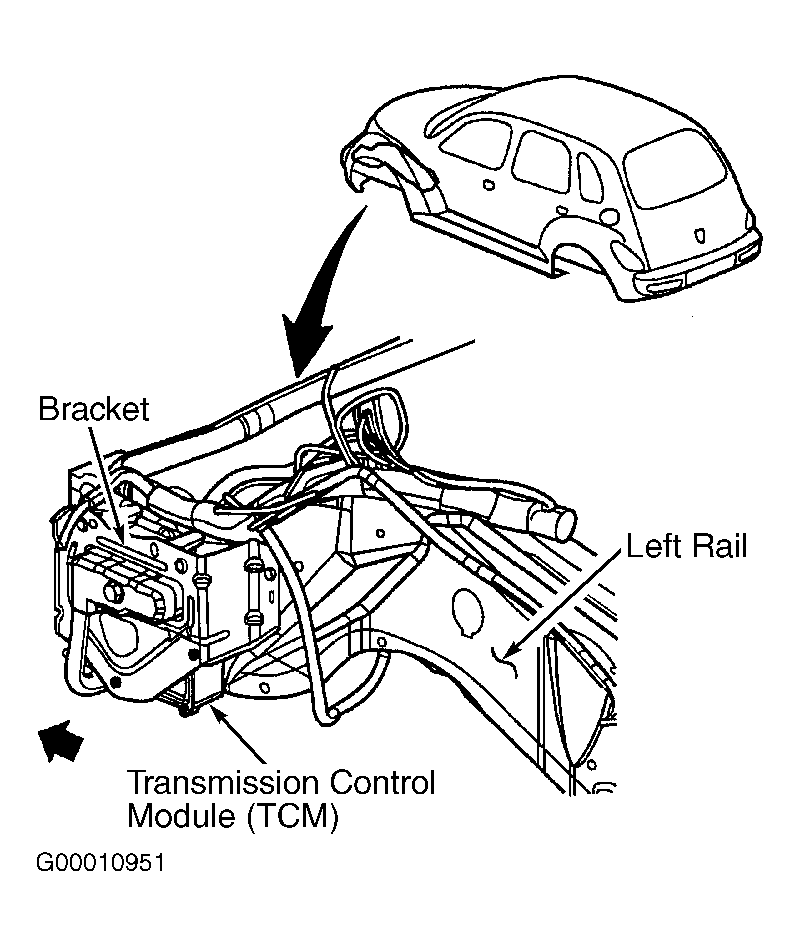

Fig 9: Locating Transmission Control Module (TCM)
G00010951Courtesy of CHRYSLER CORP.
