Power Window Switch

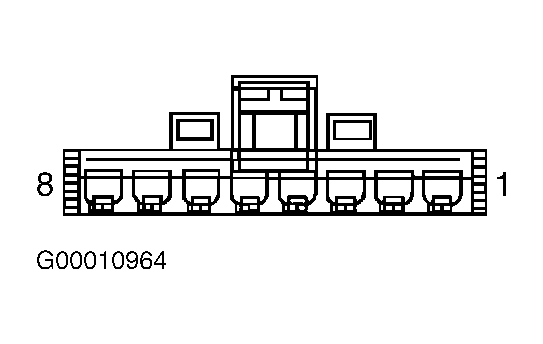

- Remove suspect window switch. See POWER WINDOW SWITCH under REMOVAL & INSTALLATION. Using an ohmmeter, check switch continuity. See WINDOW SWITCH CONTINUITY table. See Fig 1 . Replace power window switch as necessary.
- Vehicles equipped with Auto Down feature have electronic components in front switch to actuate Auto Down. To test, check switch continuity, reconnect switch, turn ignition on and test front windows for Auto Down operation. If Auto Down does not work, replace front switch.
WINDOW SWITCH CONTINUITY
| Switch Position | Continuity Between Terminals No. |
|---|---|
| Off | 1 & 4; 2 & 5; 3 & 8 |
| Up | 1 & 4; 1 & 8; 2 & 5 |
| Down | 1 & 4; 1 & 5; 3 & 8 |
