Engine Code Location
ENGINE CODE LOCATION
| Application | Location | |
|---|---|---|
| 2.0L 4 Cyl. | ||

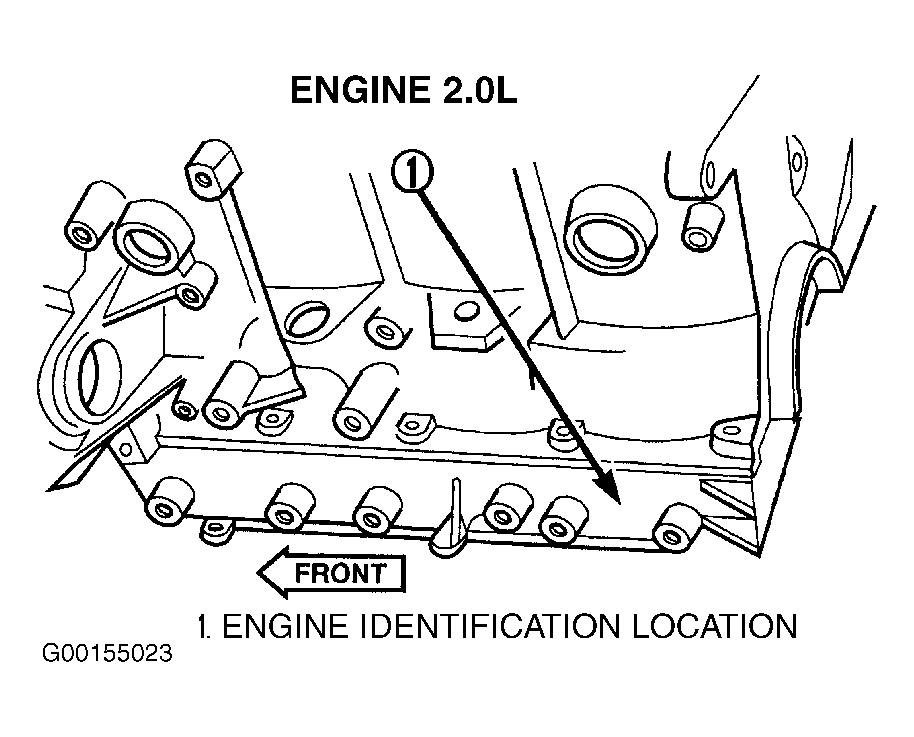

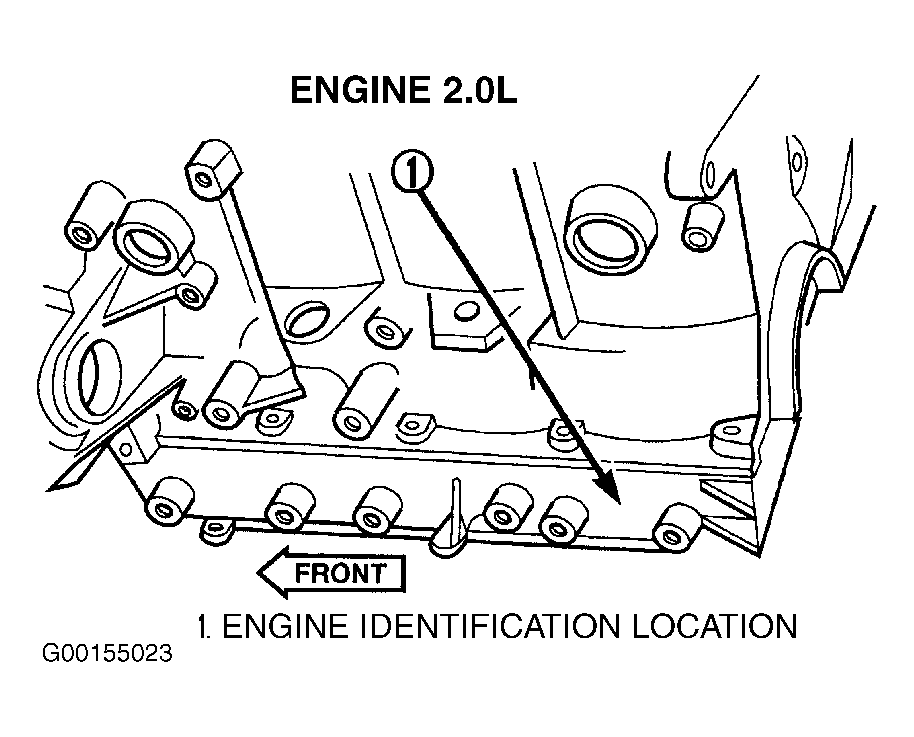

| Neon | Stamped Onto A Machined Pad On The Engine Block, On The Left Rear Of The Cylinder Block Bedplate. See Fig 1 | |
| 2.4L 4 Cyl. (DOHC) | ||

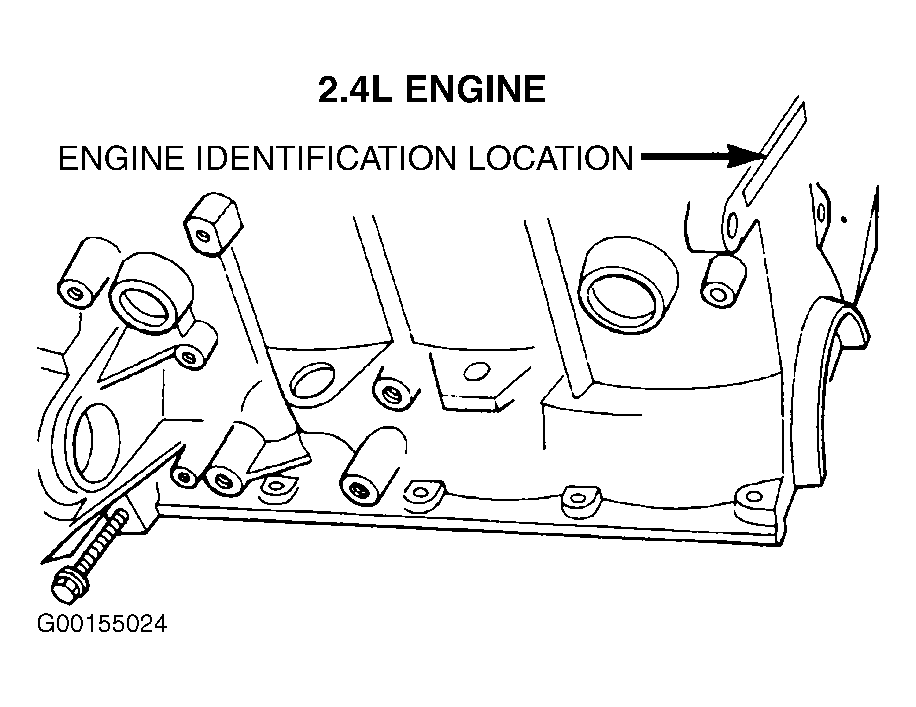

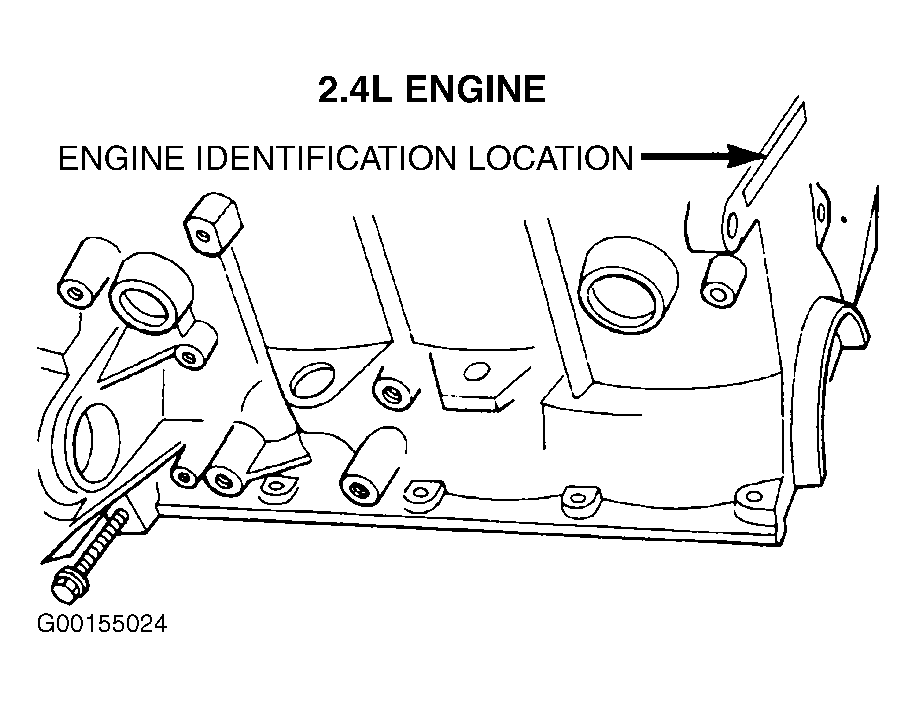

| PT Cruiser, Sebring Sedan & Stratus Sedan | Rear Of Cylinder Block, Below Cylinder Head Surface, Just Above Flywheel. See Fig 2 | |
| 2.4L 4 Cyl. (SOHC) | ||

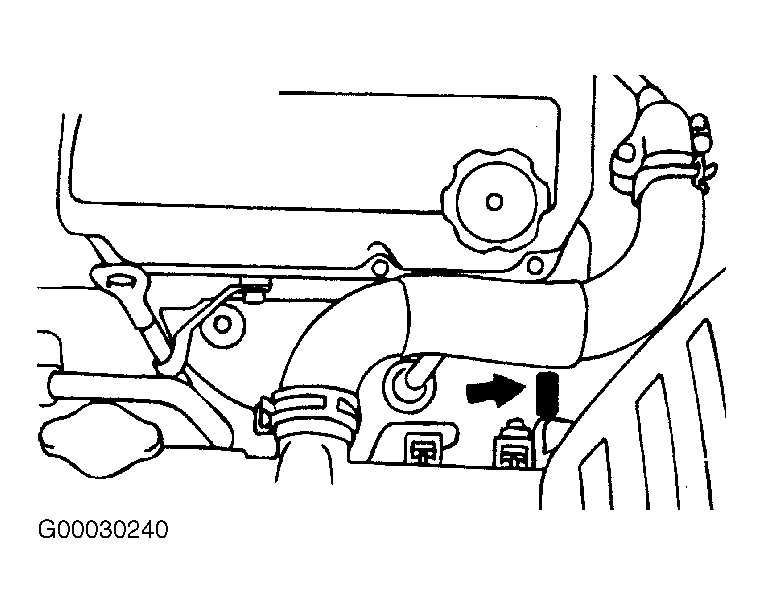

| Sebring Coupe | Front Of The Engine Facing The Radiator, From The Front Of The Vehicle The Stamp Will Be On The Left Side Of The Engine Block, Left Of The Radiator Cap. See Fig 3 | |
| 2.7L V6, 3.2L V6 & 3.5L V6 | ||
| Concorde, Intrepid, LHS, 300M, Sebring Sedan & Stratus Sedan | Rear Of Cylinder Block, Below Driver's Side Cylinder Head Surface, Just Above Flywheel. For 2.7 L Engine, See Fig 4 . For 3.2 L & 3.5 L, See Fig 5 | |
| 3.0L V6 | ||

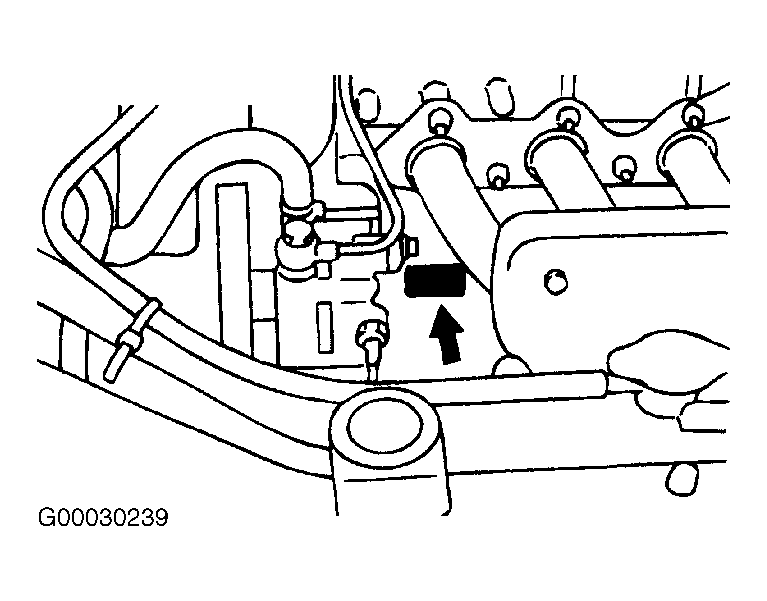

| Sebring & Stratus Coupe | Front Of The Engine Block, Facing The Radiator, Directly Below The Oil Filler Cap On The Engine Block. See Fig 6 | |
| 3.5L V6 | ||
| Prowler | Rear Of Cylinder Block, Below Driver's Side Cylinder Head Surface, Just Above Flywheel. See Fig 5 | |
| 8.0L V10 . |
||
| Viper | Lower Right Front Of The Cylinder Block Near The Oil Filter. See Fig 7 | |

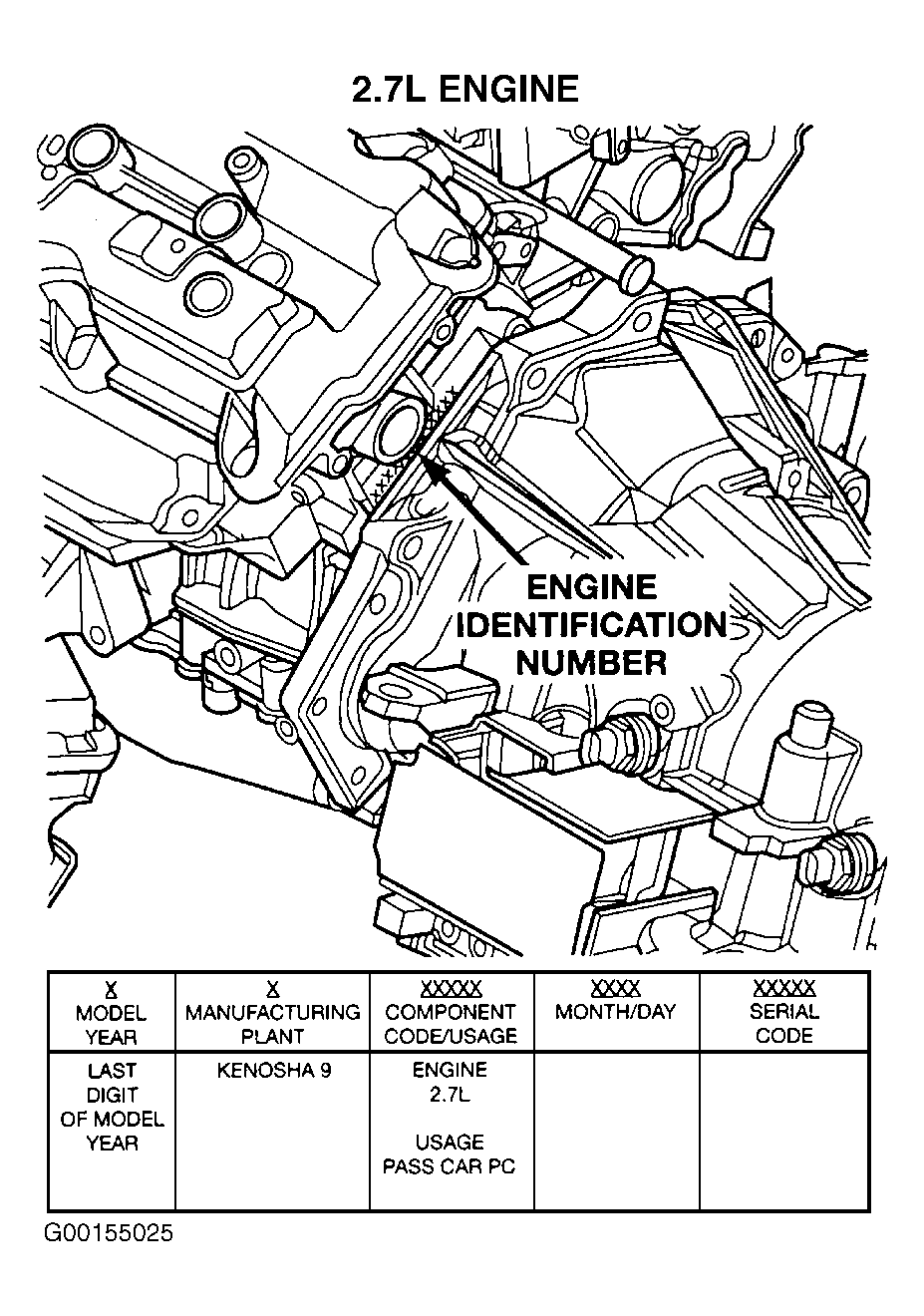

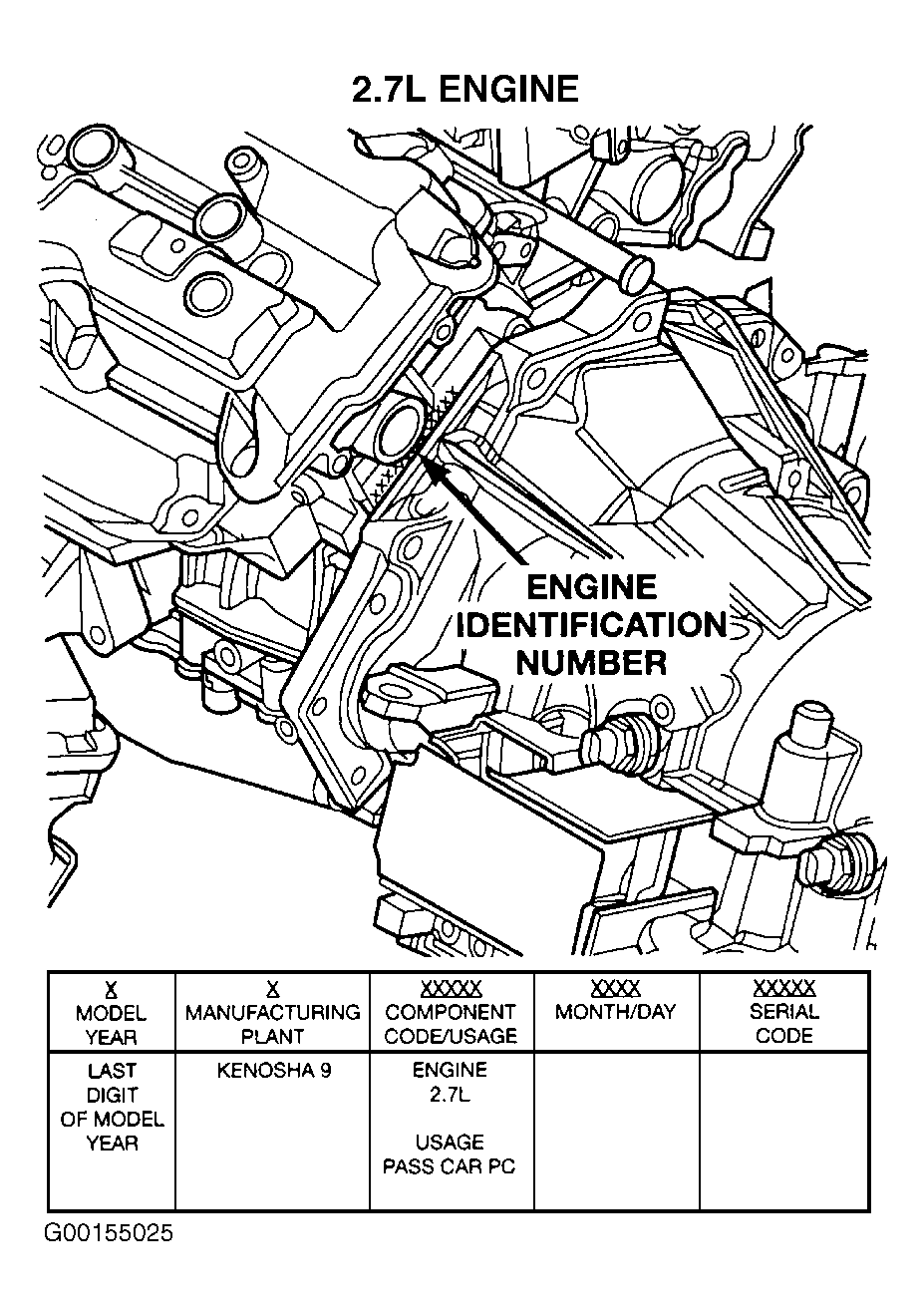

Fig 4: Locating Engine Identification Code (2.7L V6 - 300M, Concorde & Intrepid, LHS, Sebring & Stratus Sedan)

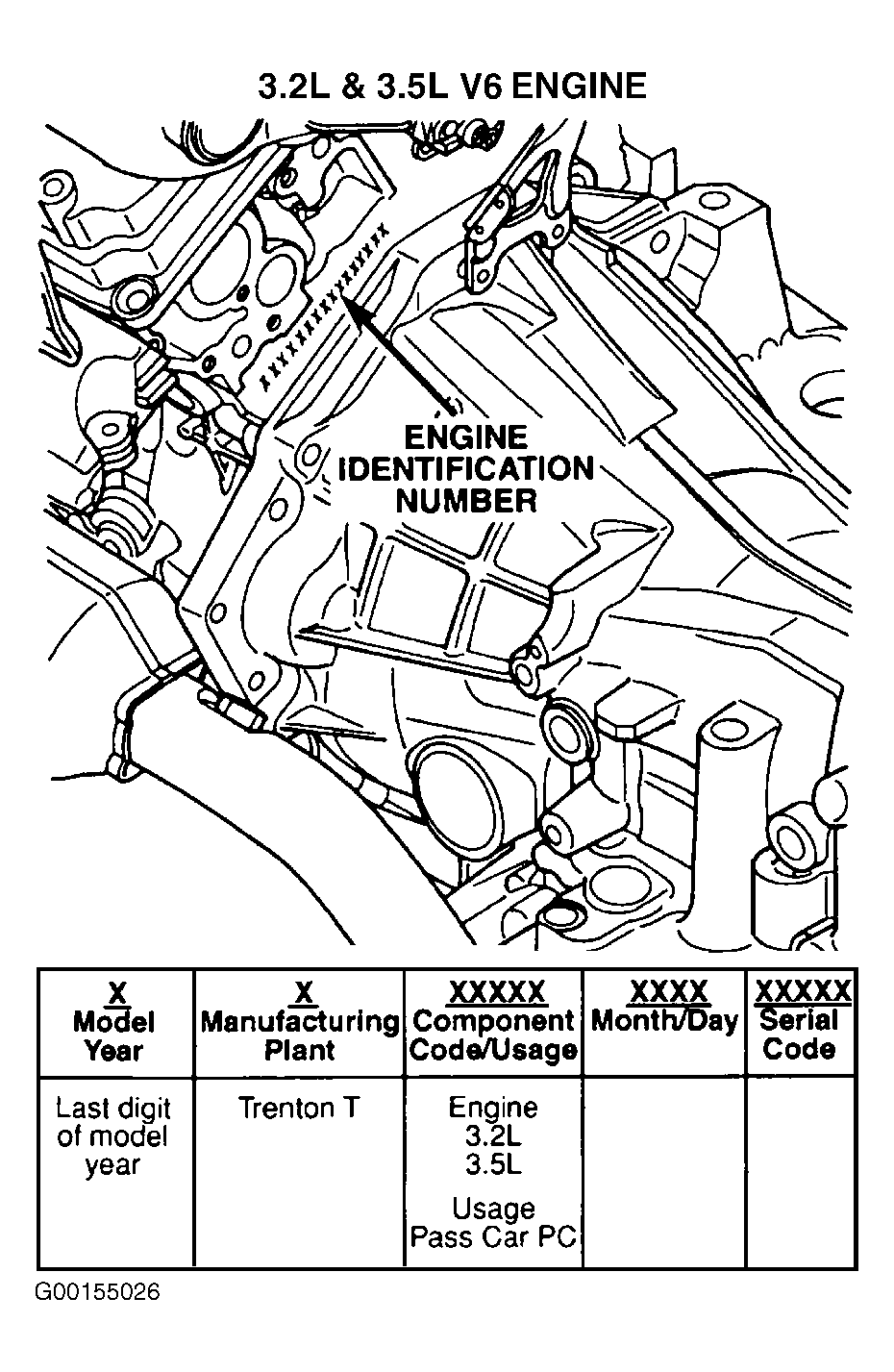

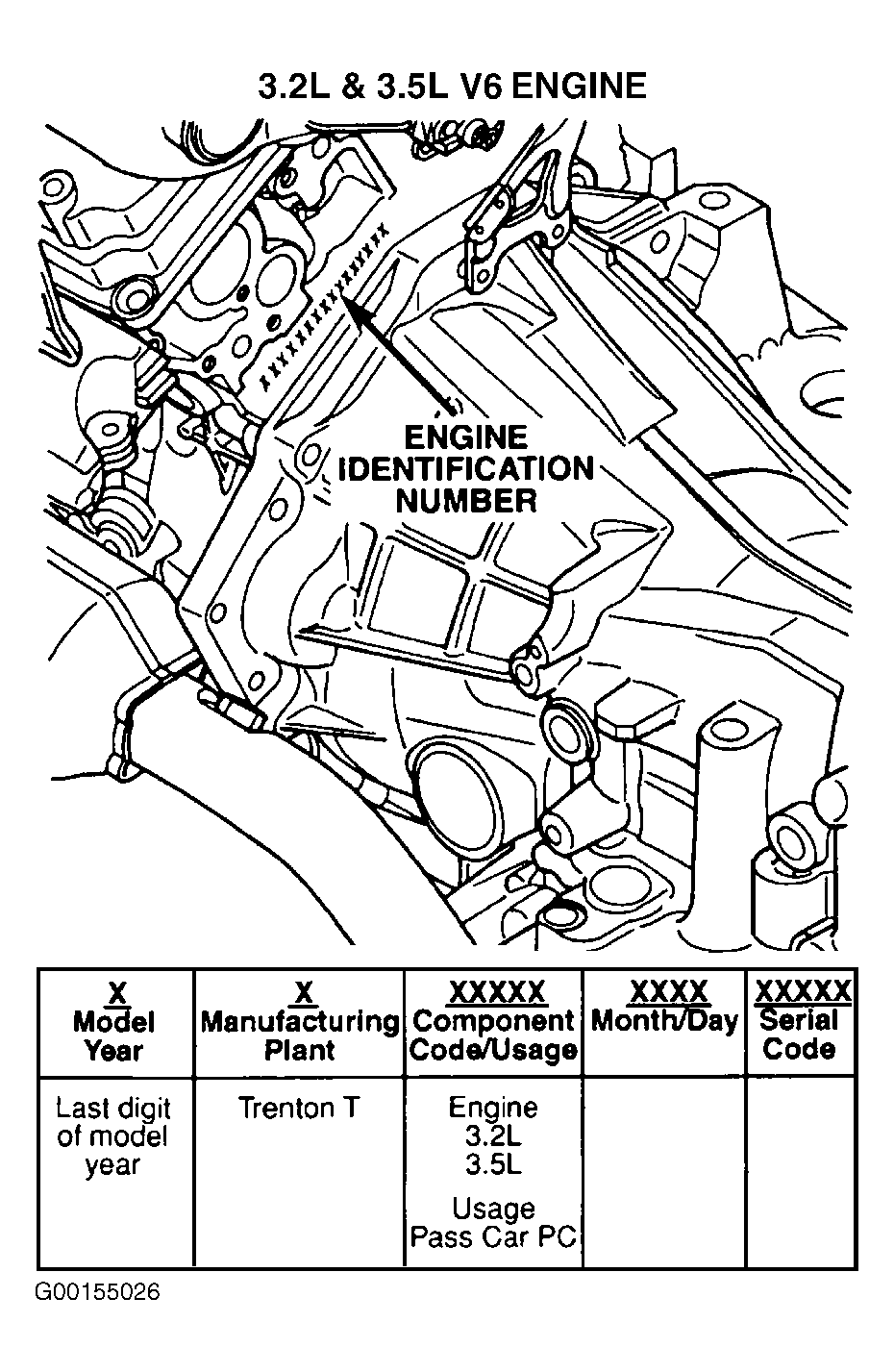

Fig 5: Locating Engine Identification Code (3.2L/3.5L V6 - 300M, Concorde, Intrepid, LHS, & Prowler)
