Ignition Coil Capacitor: Removal

  1. Remove the negative battery cable.
  2. Disconnect the electrical connector (see Fig 1 and Fig 2 ).
  3. Remove nut and capacitor.

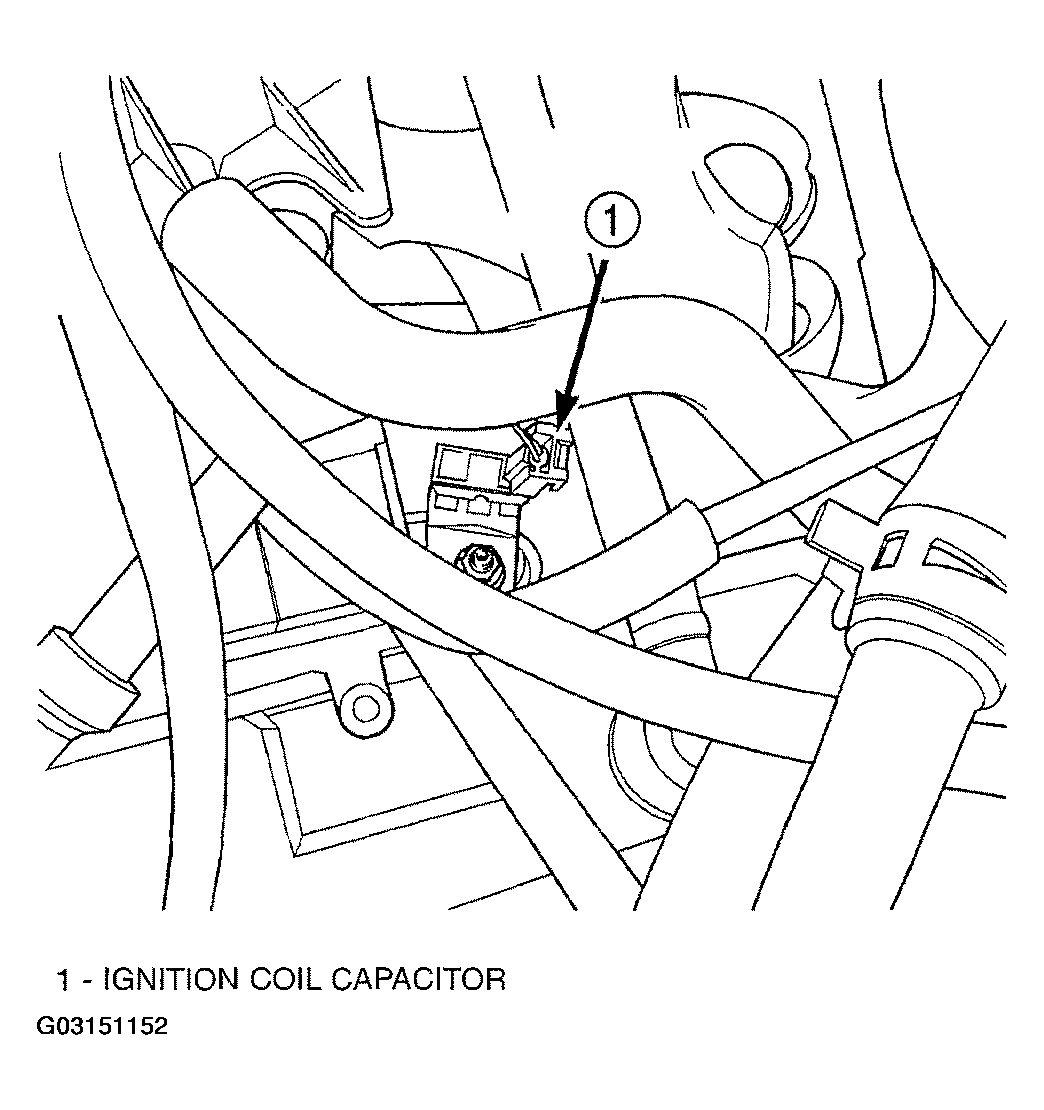

    Fig 1: Ignition Coil Capacitor (View 1)
    G03151152

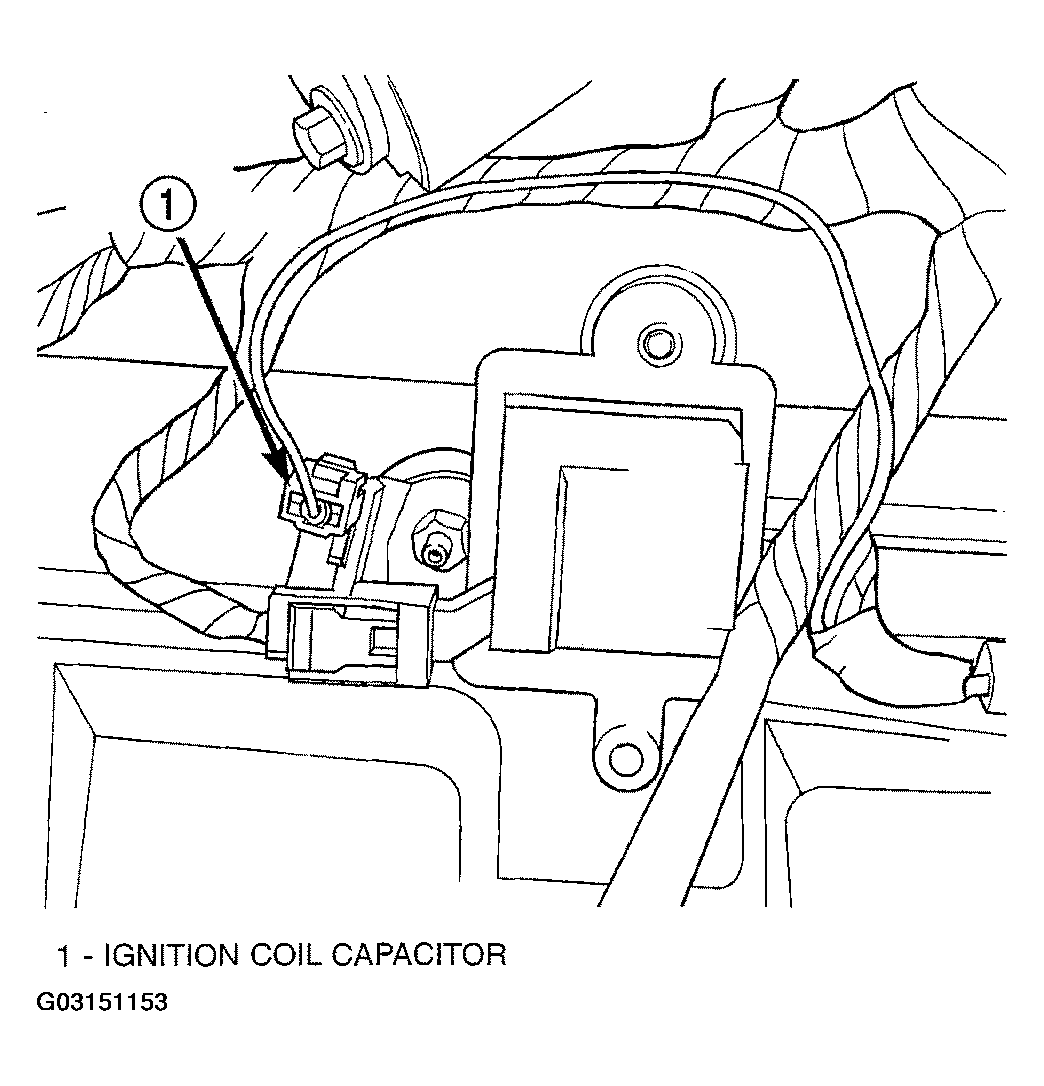

    Fig 2: Ignition Coil Capacitor (View 2)
    G03151153
