Memory Switch Inoperative

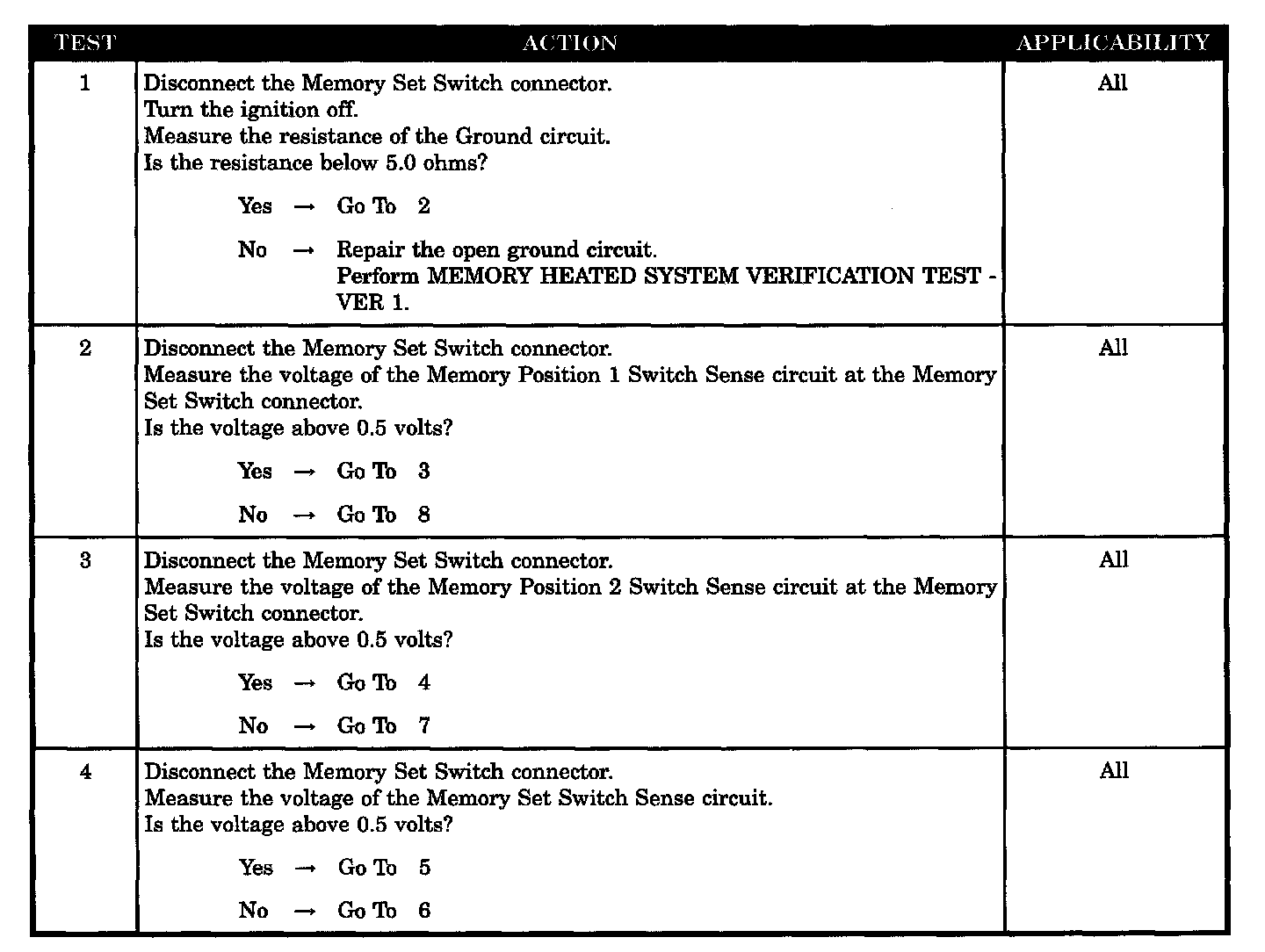

Test 1 - 4:

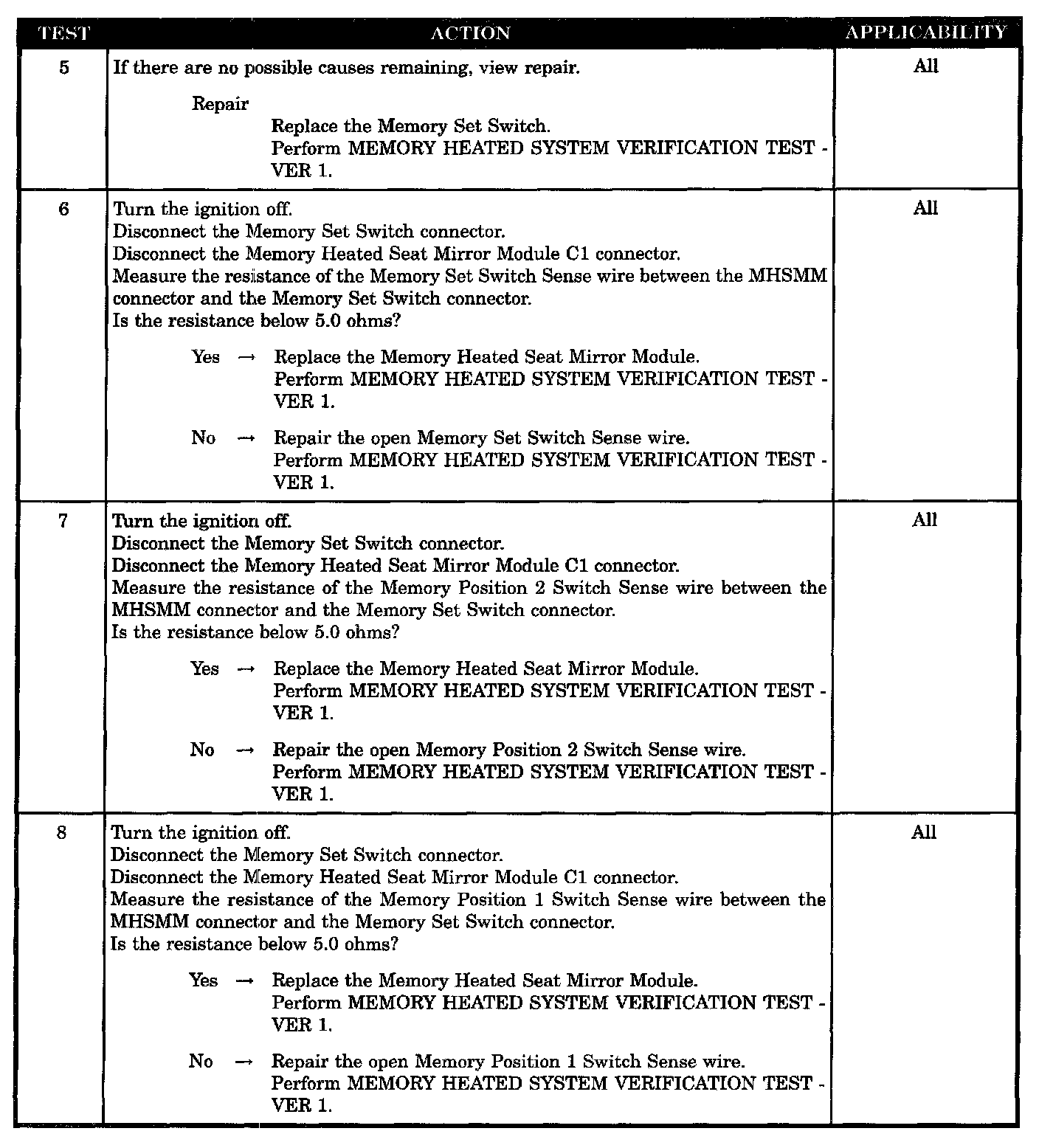

Test 5 - 8:

SYMPTOM
MEMORY SWITCH INOPERATIVE

POSSIBLE CAUSES
- Ground circuit open
- Memory position 1 switch sense wire open
- Memory position 2 switch sense circuit open
- Memory set switch sense wire open
- Memory set switch
- Memory heated seat mirror module - position 1
- Memory heated seat mirror module - position 2
- Memory heated seat mirror module - set switch
