Home >> Chrysler >> 2002 >> Intrepid (CANADA) V6-2.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Circuit Breaker

April 5, 2026: LEMON Manuals is launched! Read the announcement.

Circuit Breaker

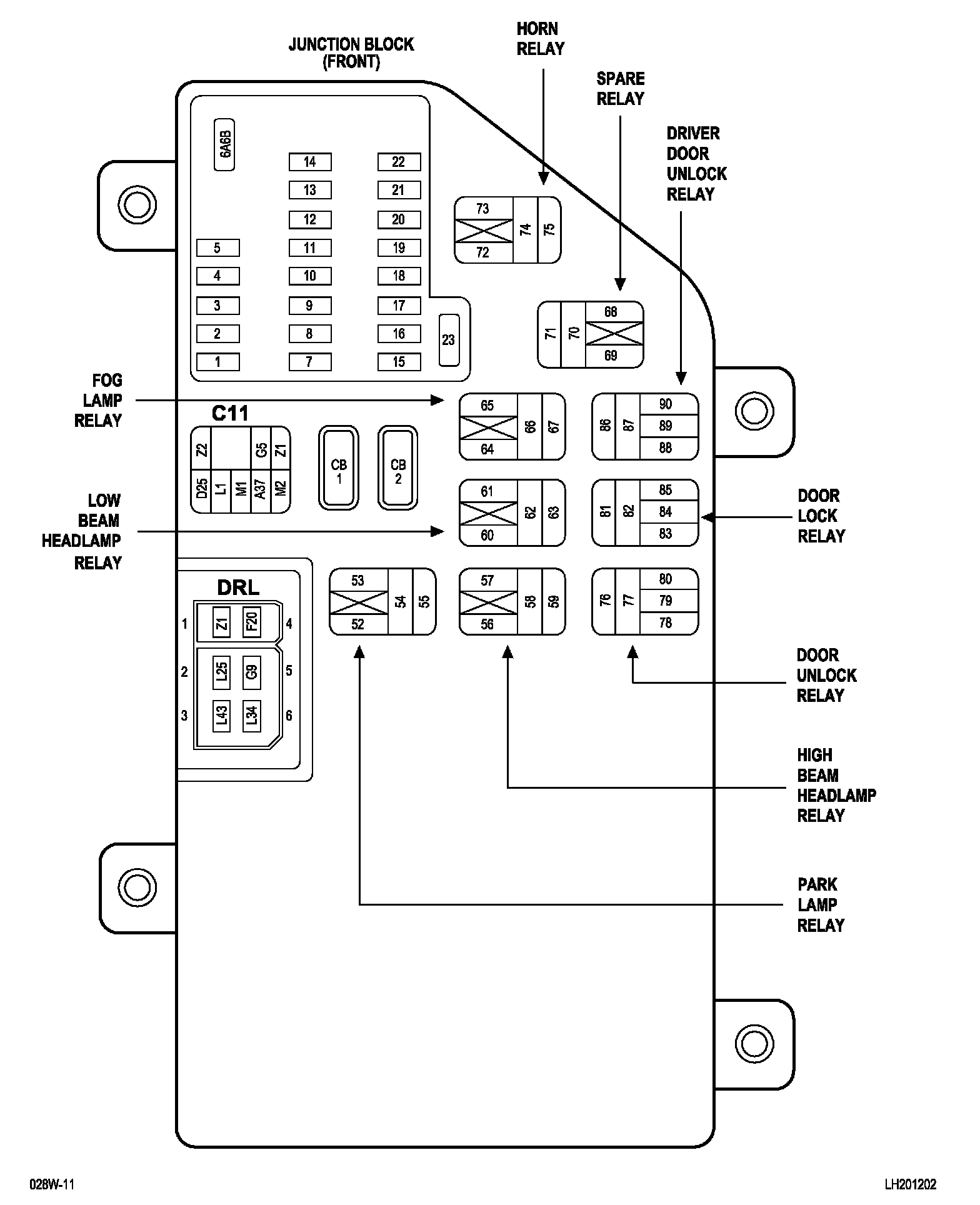

8w-12-2:

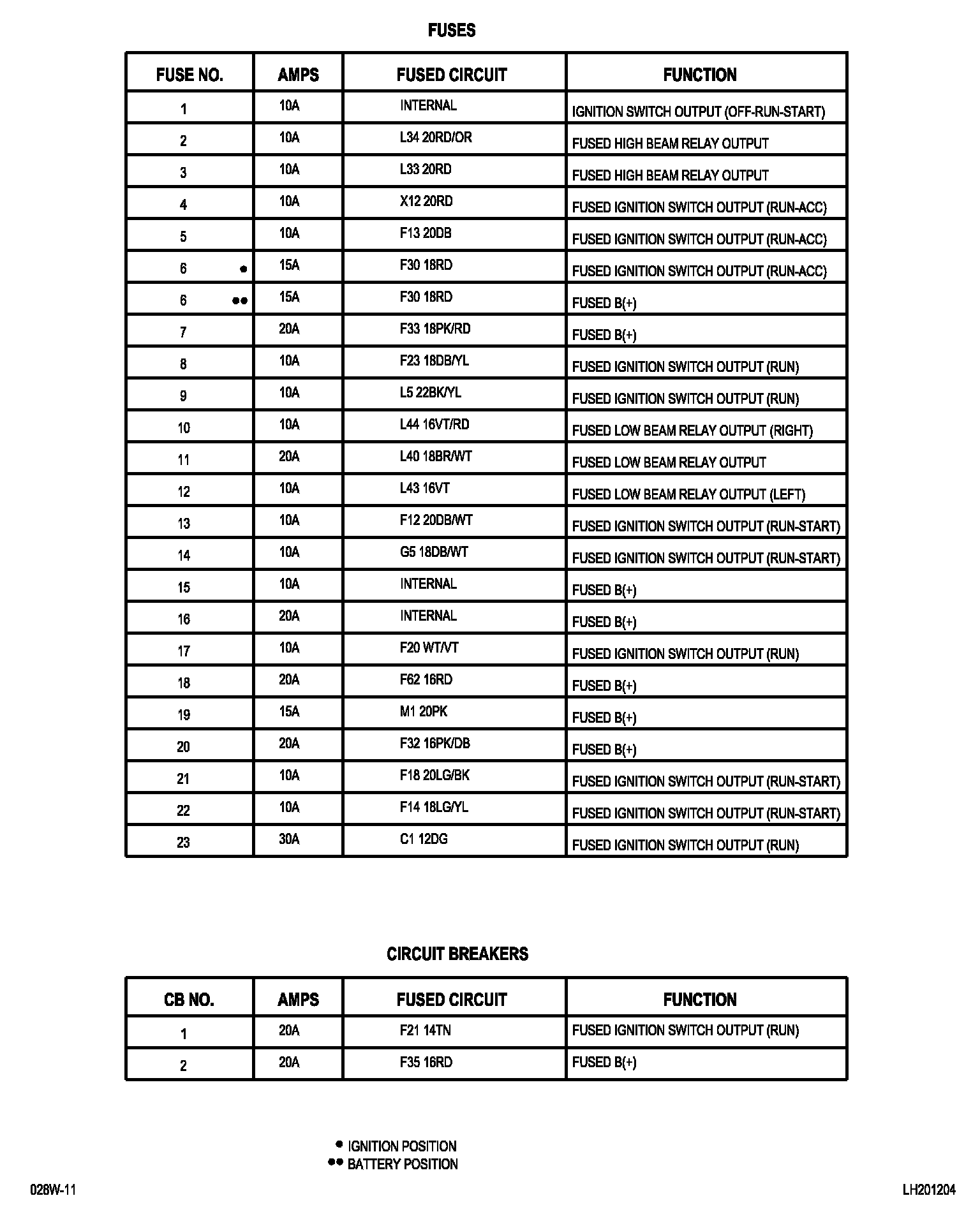

8w-12-3:

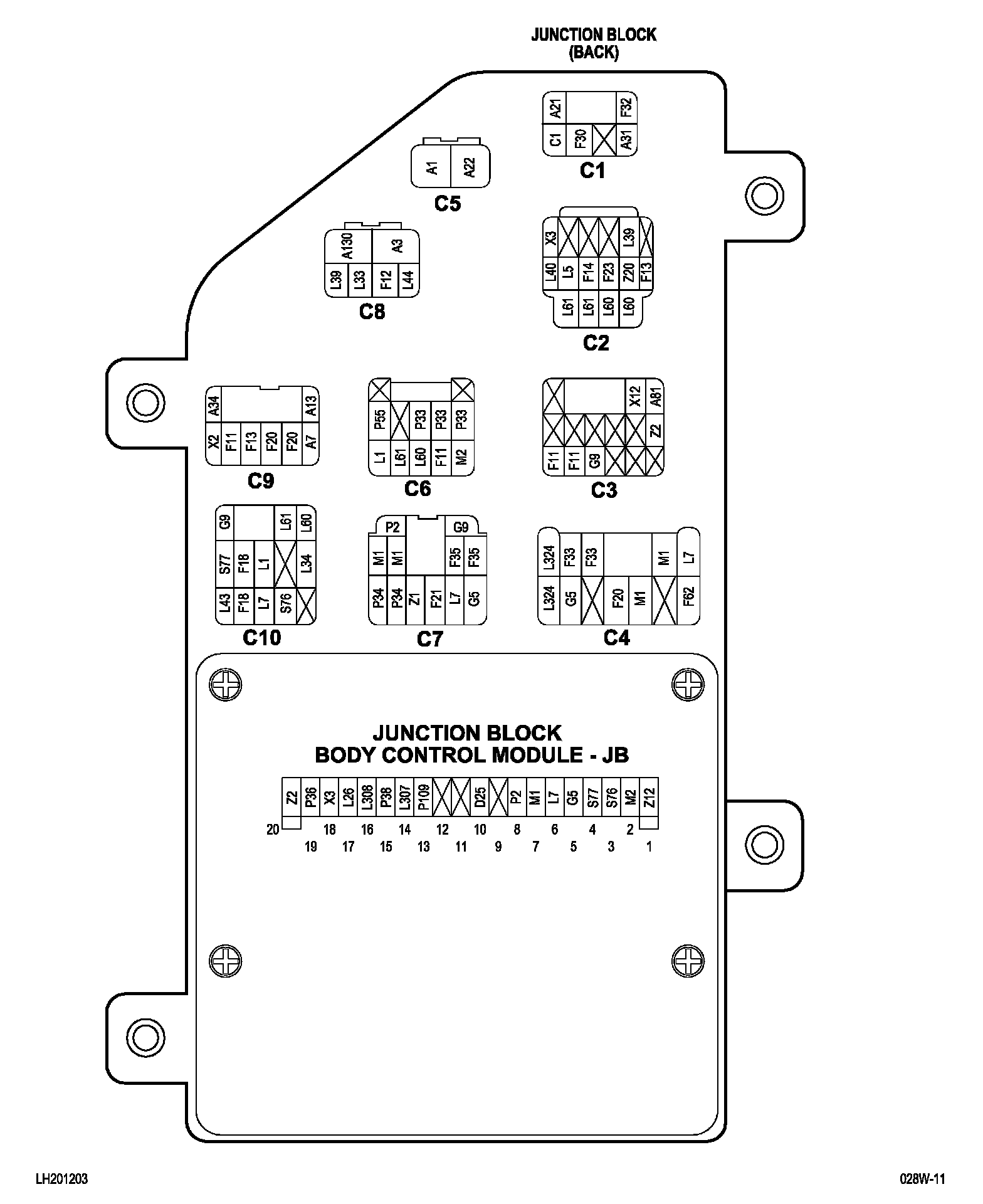

8w-12-4:
