Junction Block

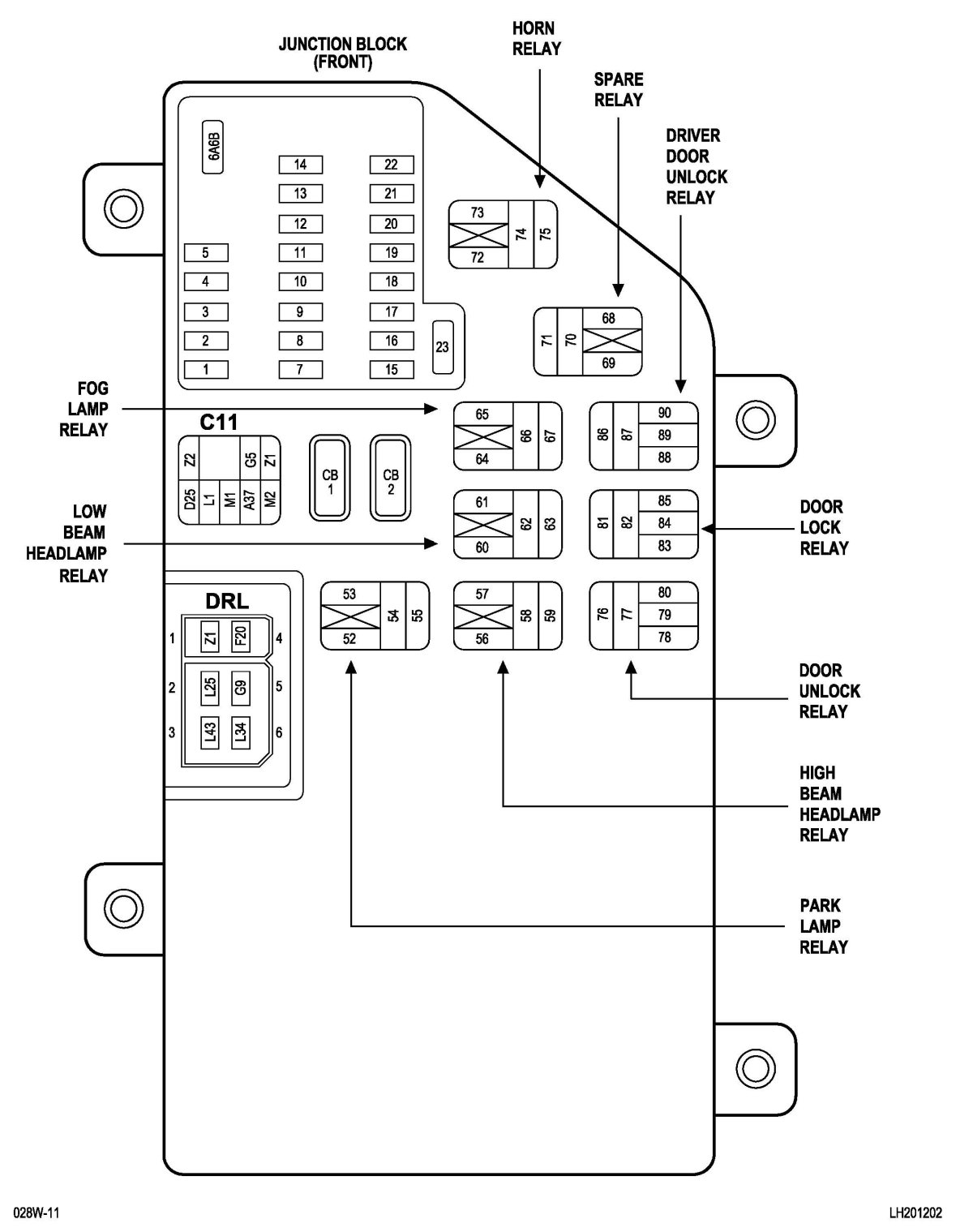

Junction Block (Front) (1 Of 6):

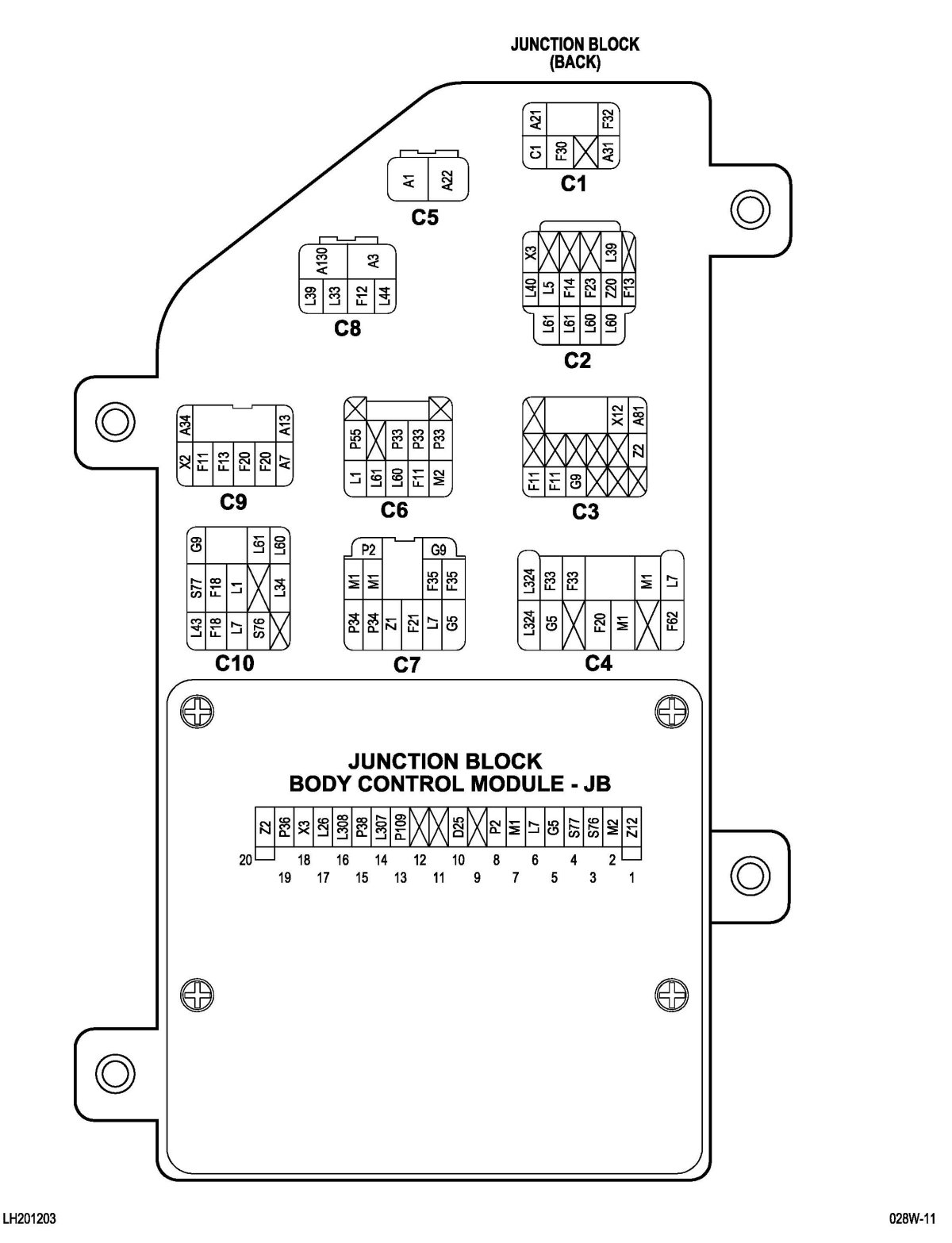

Junction Block (Back) (2 Of 6):





Junction Block (3 Of 6):





Junction Block (4 Of 6):





Junction Block (5 Of 6):





Junction Block (6 Of 6):
