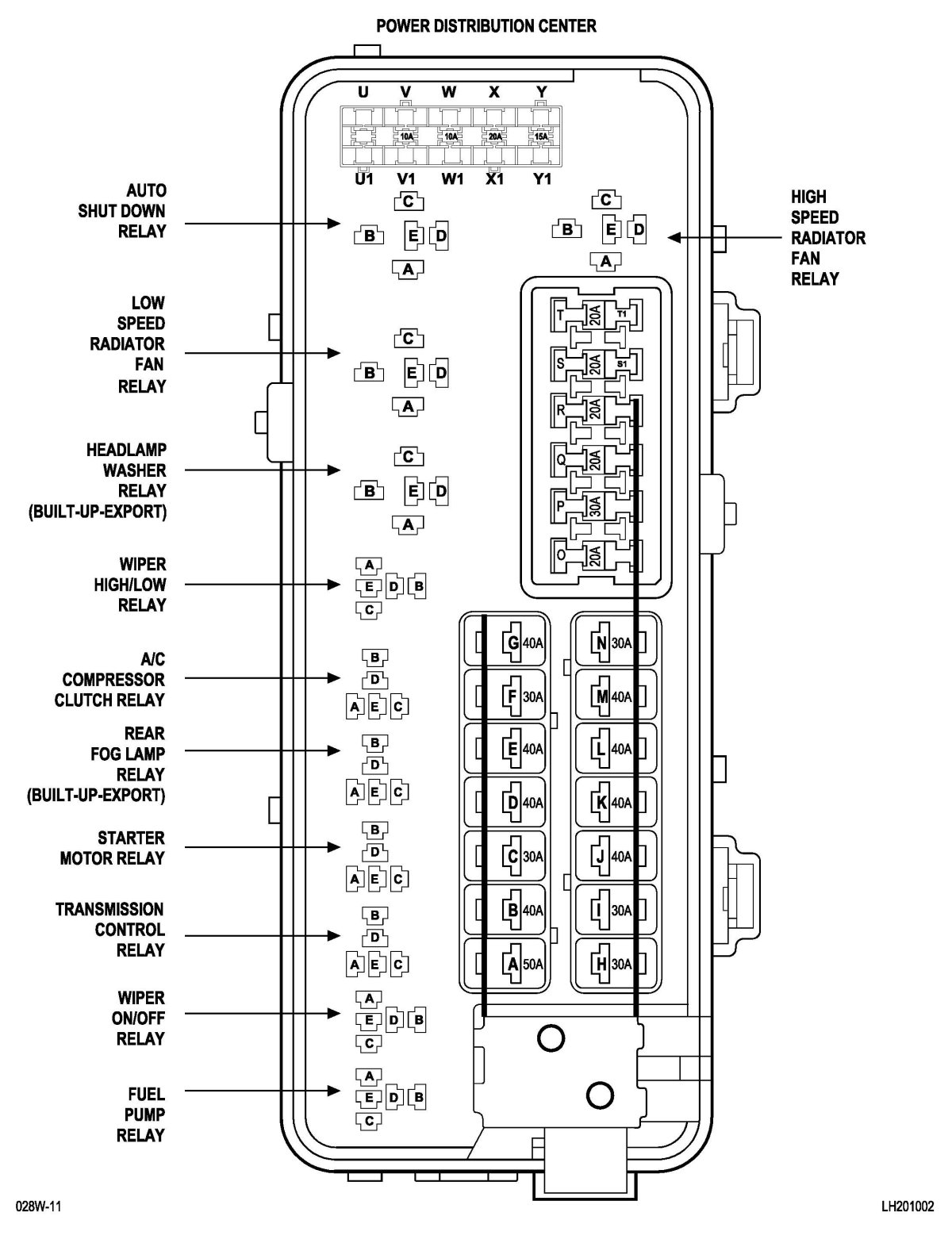

Power Distribution Center

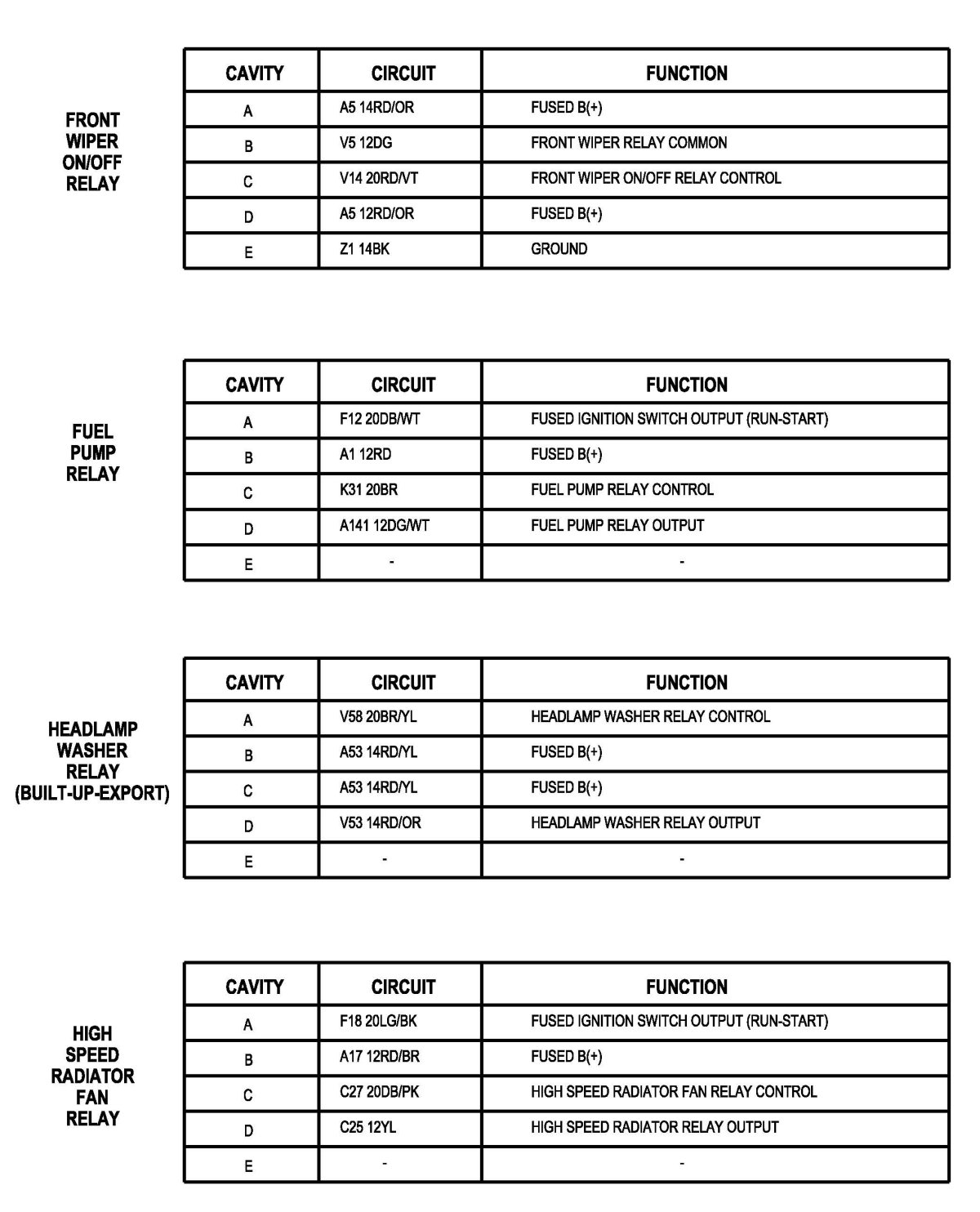

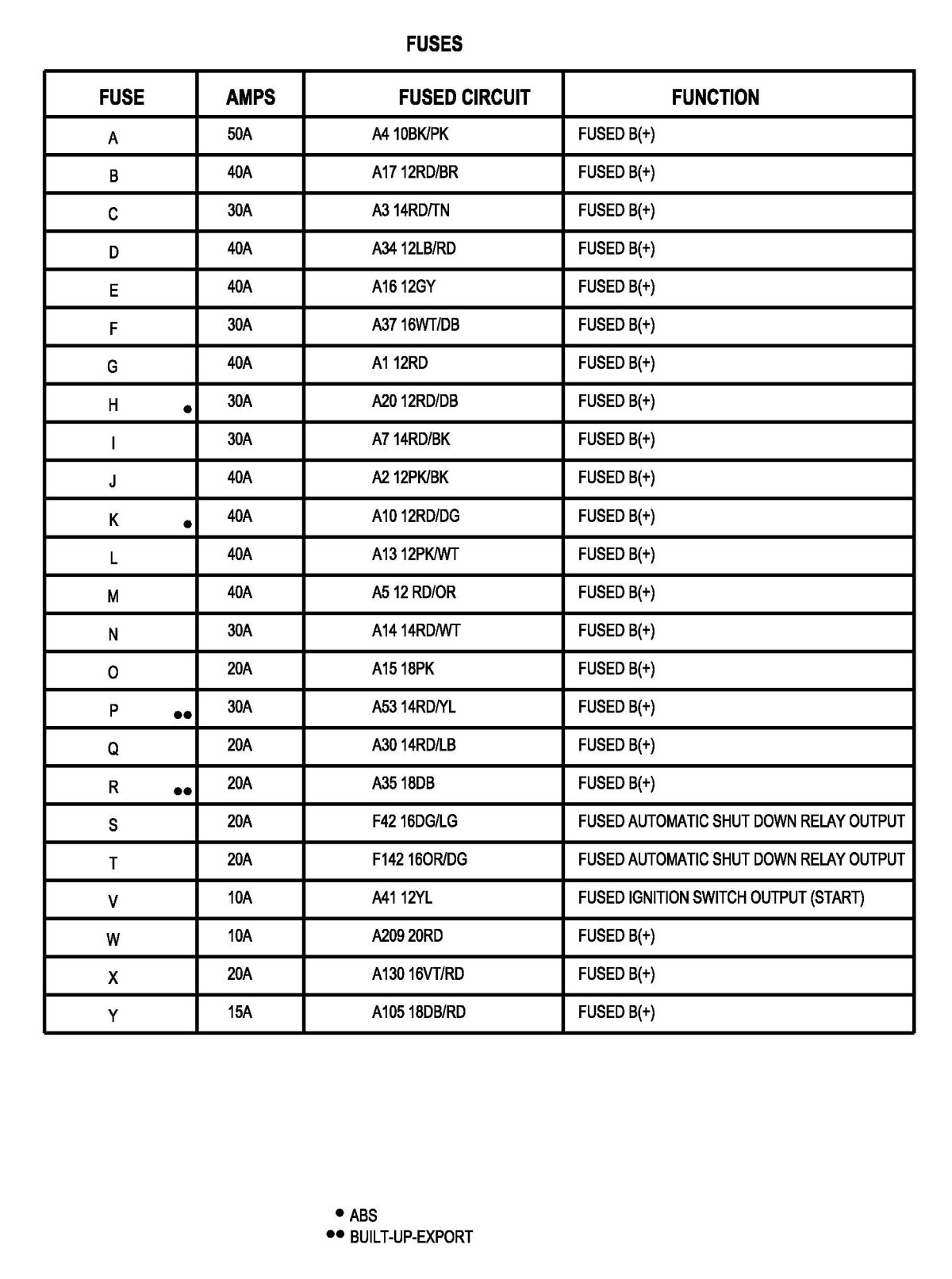

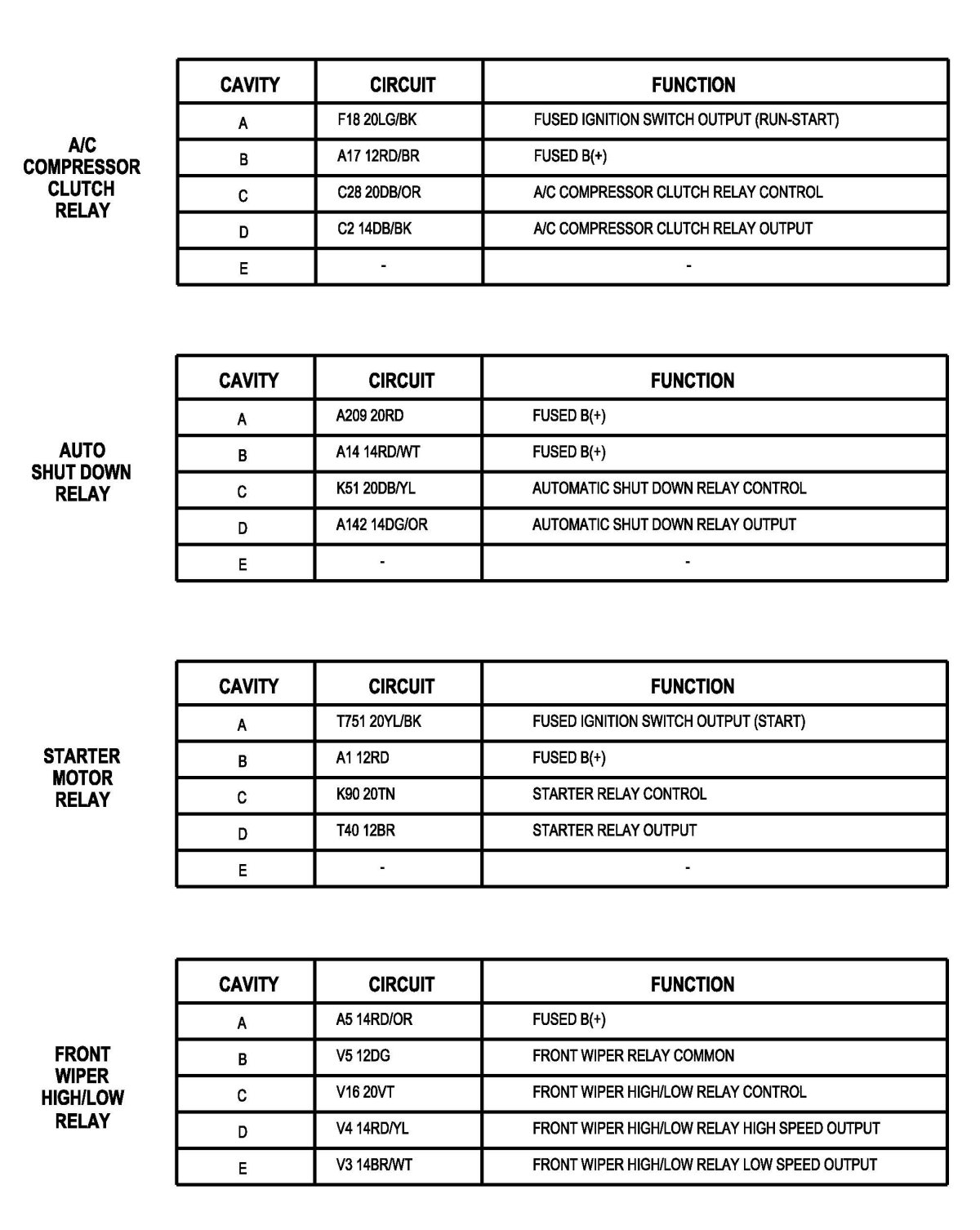

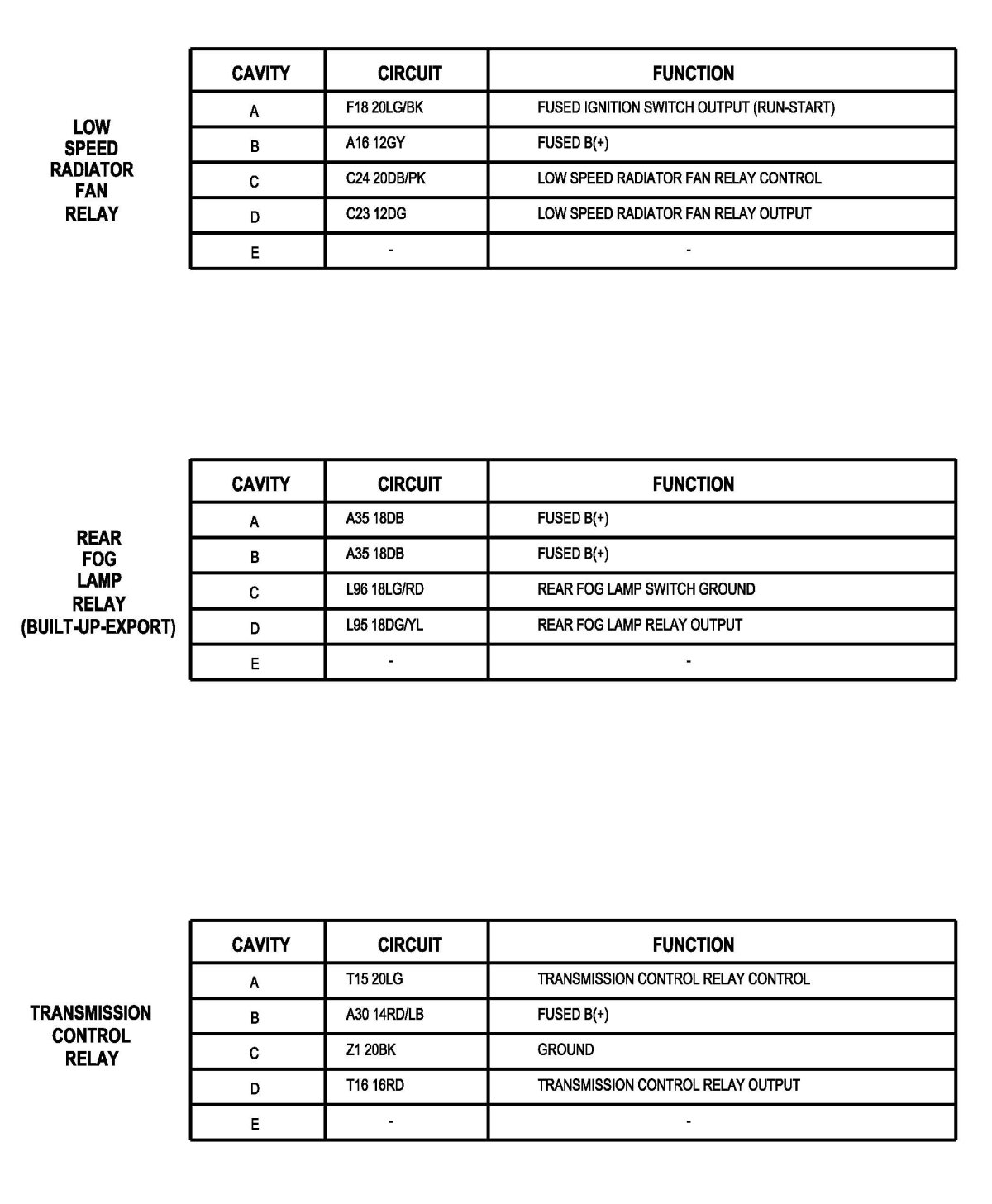

Power Distribution Center (PDC) (1 Of 5):
Power Distribution Center (PDC) (2 Of 5):
Power Distribution Center (PDC) (3 Of 5):
Power Distribution Center (PDC) (4 Of 5):
Power Distribution Center (PDC) (5 Of 5):
