Electronic Brake Control Module

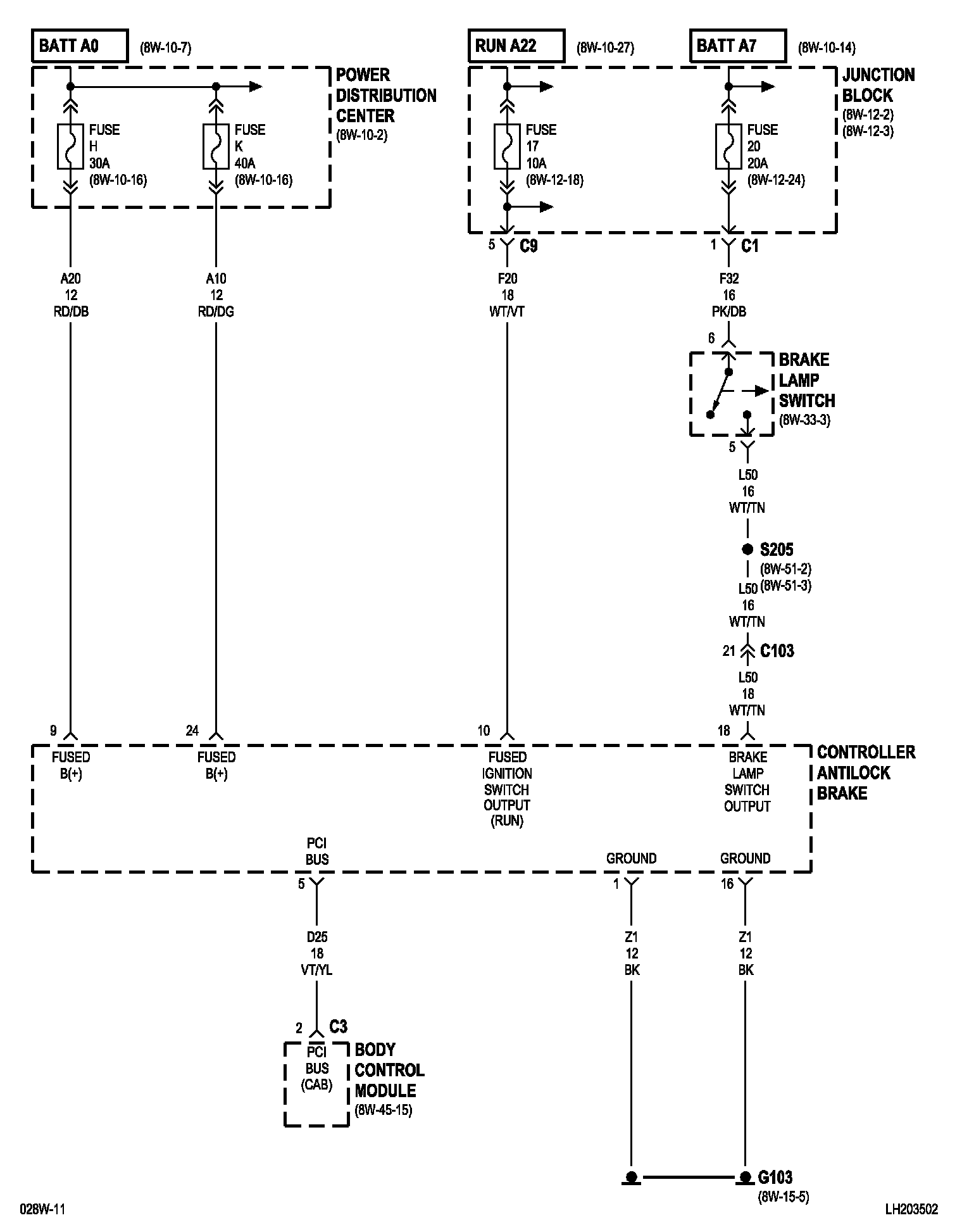

8w-35-2:

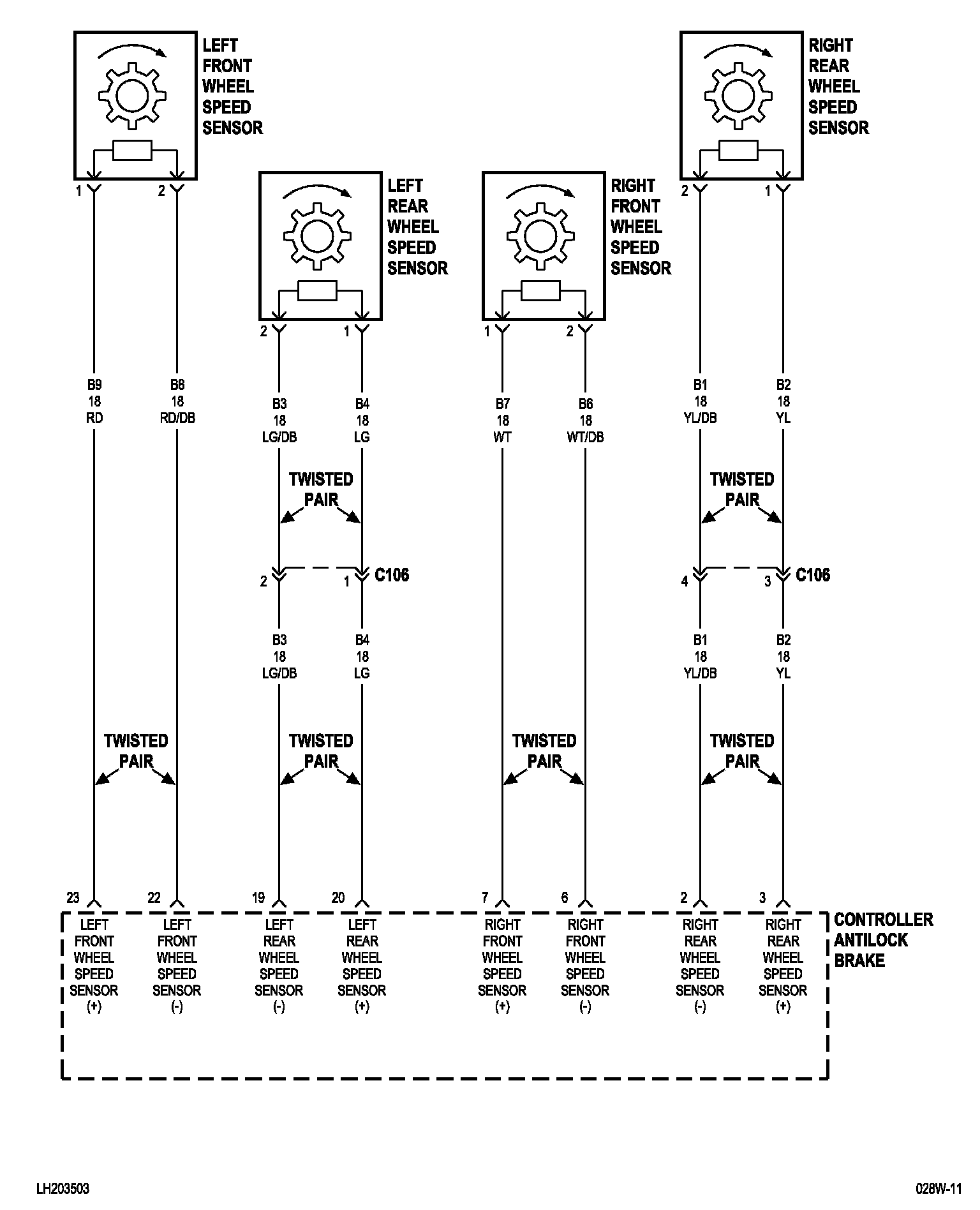

8w-35-3:






NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams.
