Transmission Control Systems

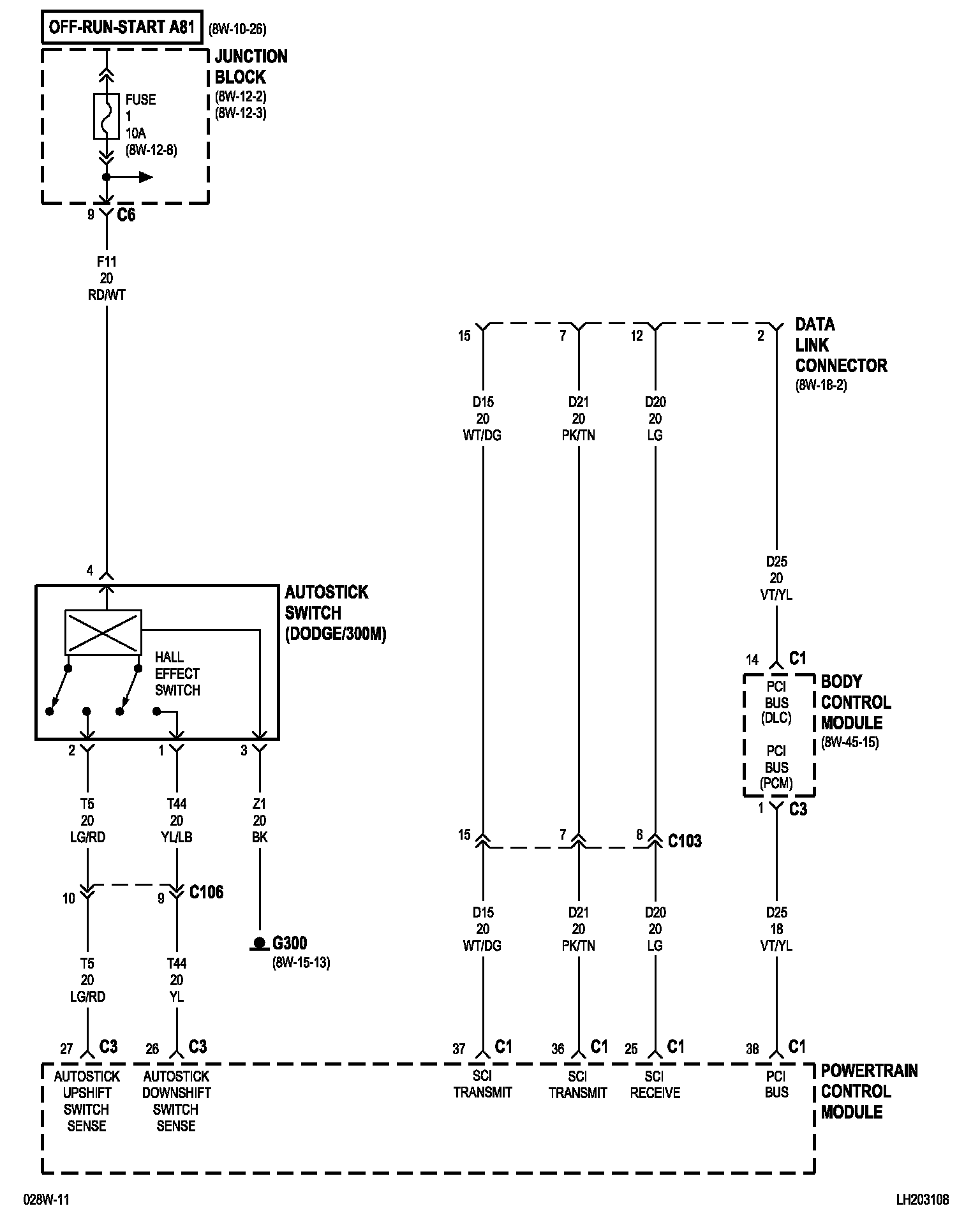

8w-31-2:

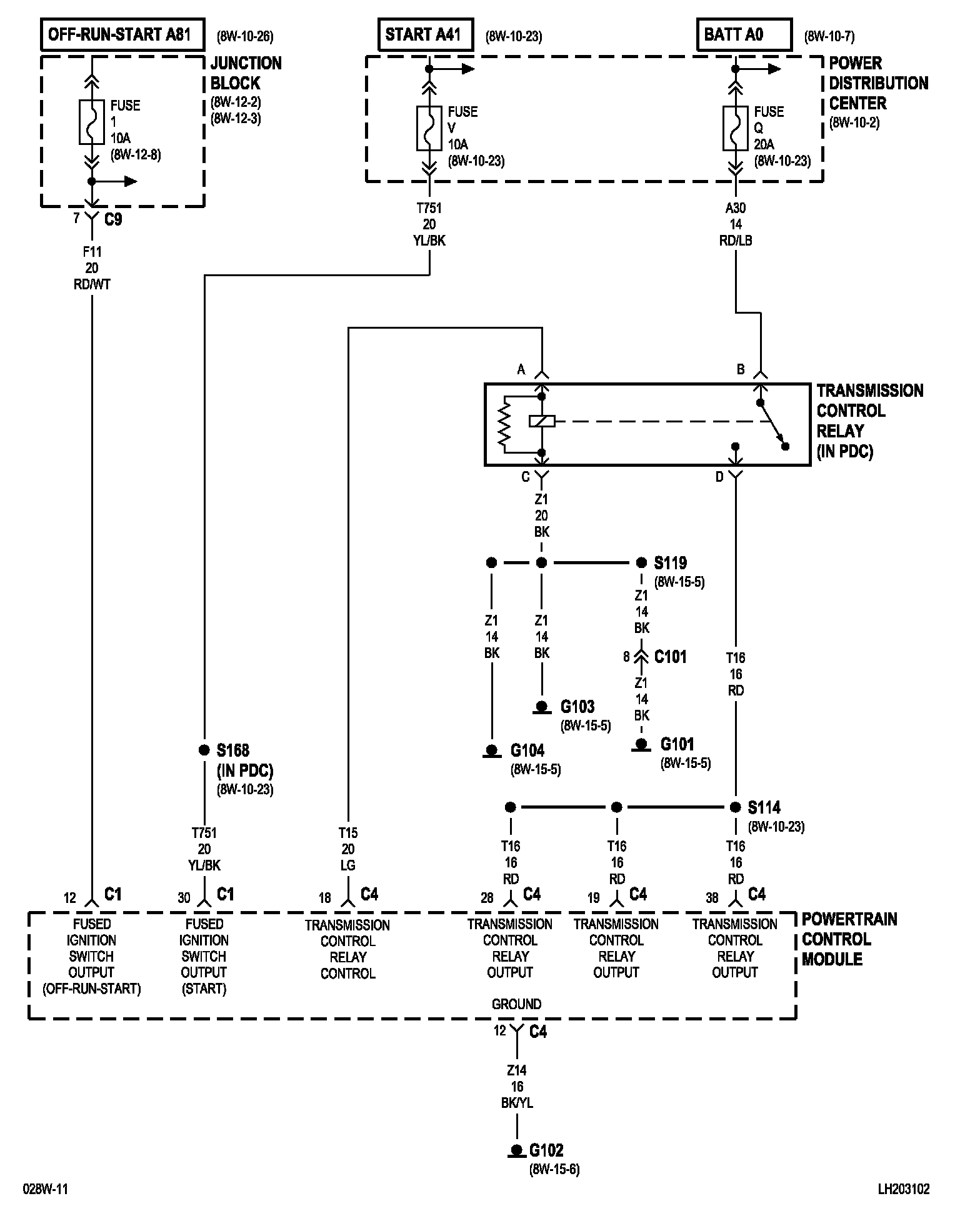

8w-31-3:

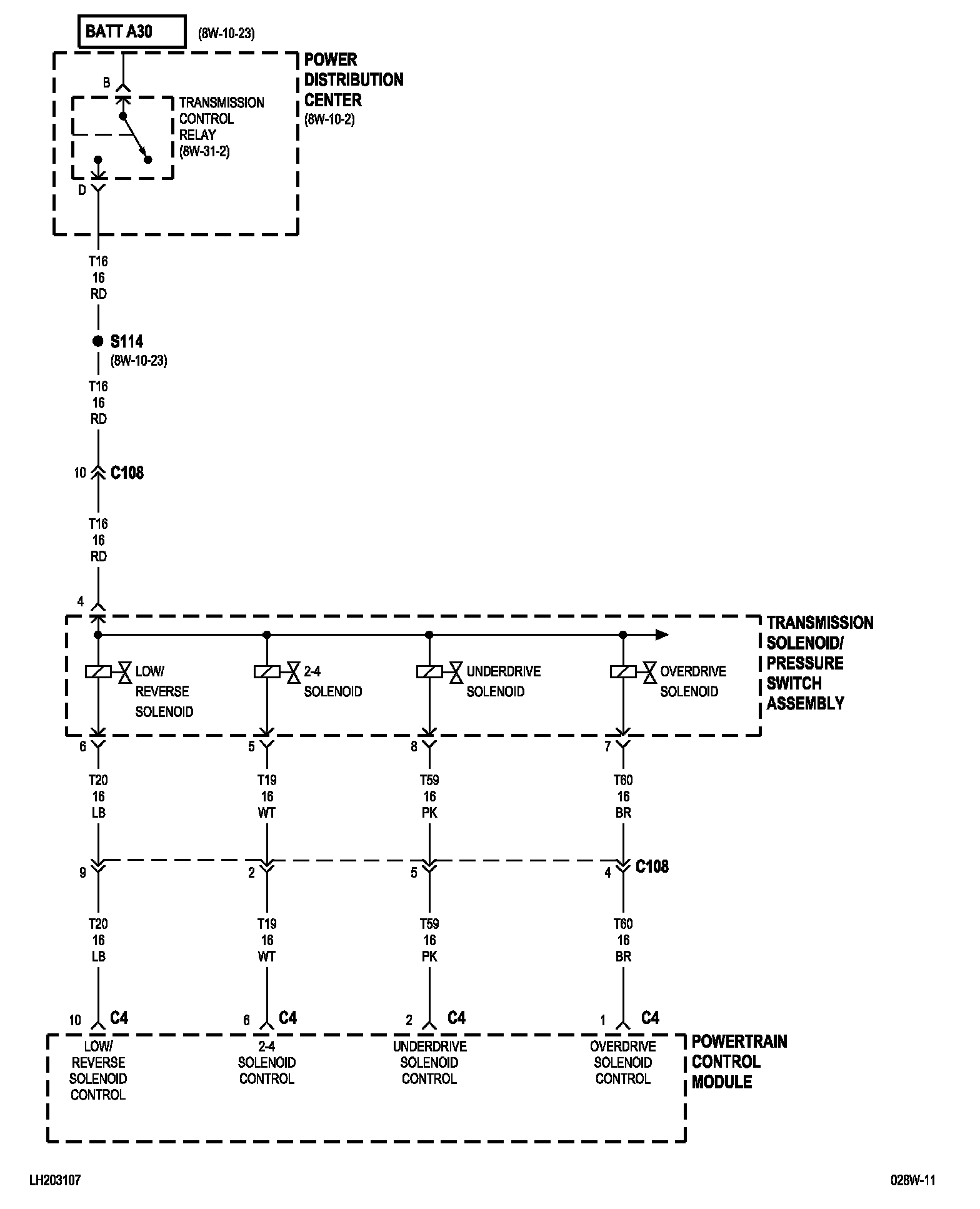

8w-31-4:

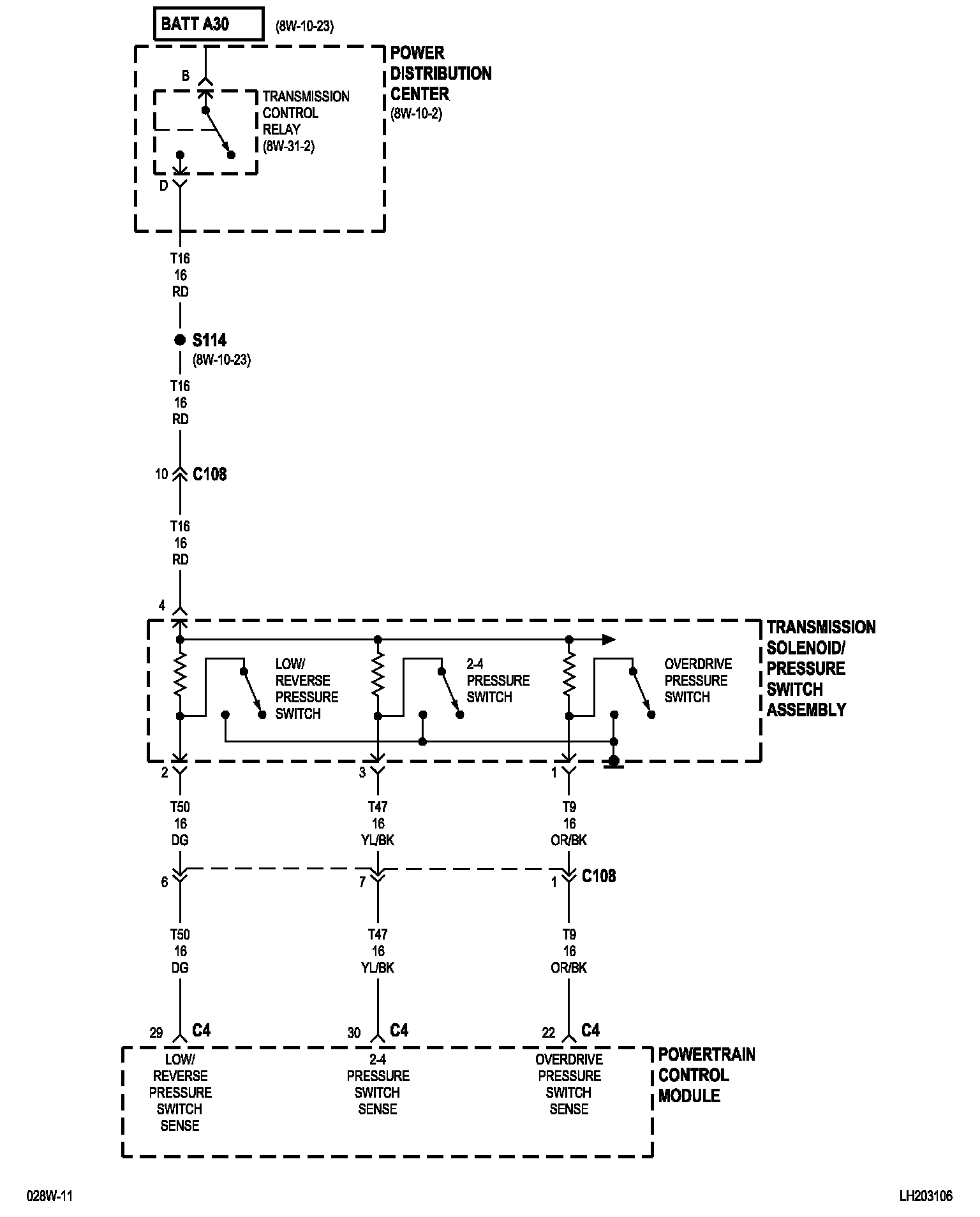

8w-31-5:

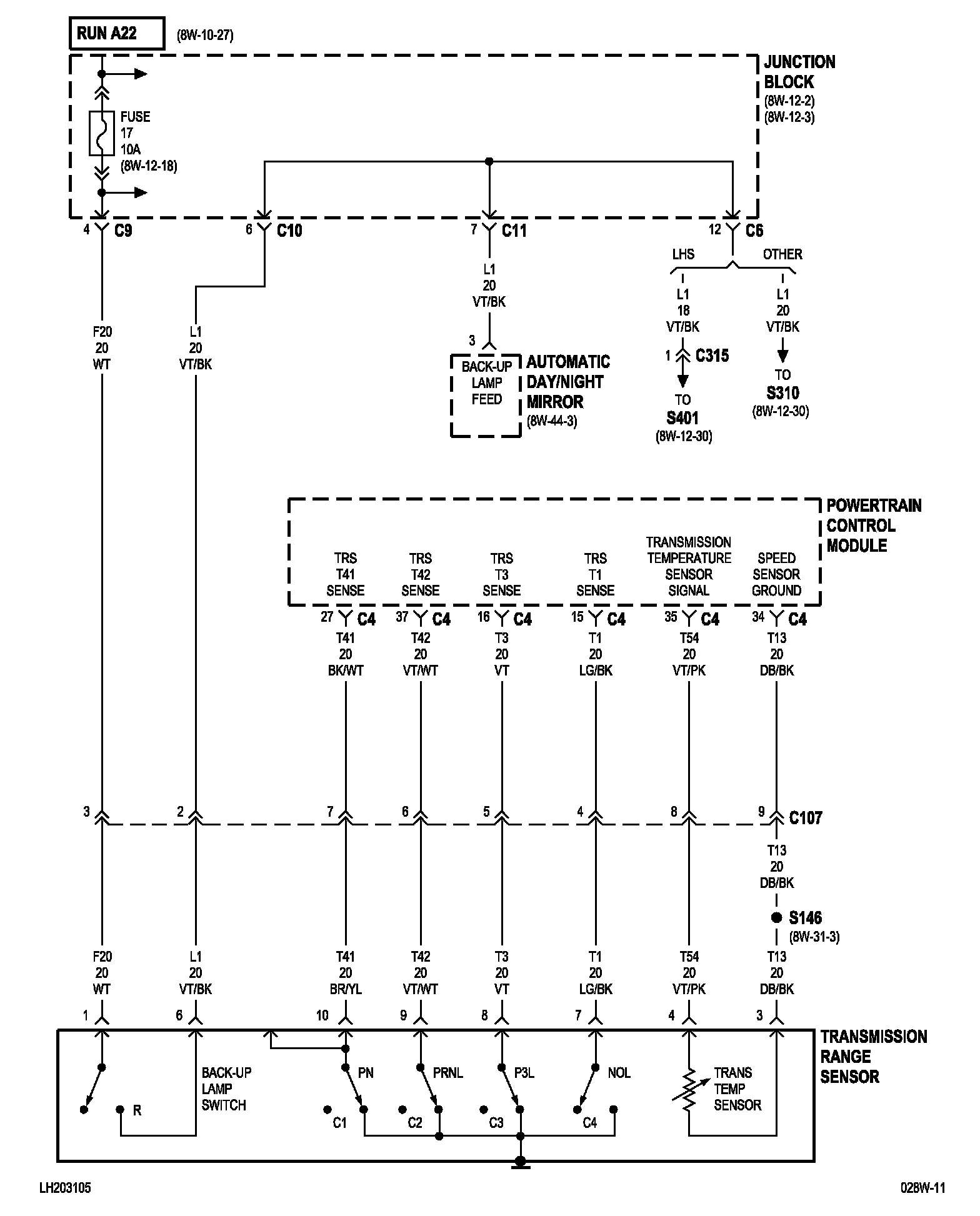

8w-31-6:

8w-31-7:

8w-31-8:

NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams. Electrical Diagrams
