Air Bag System

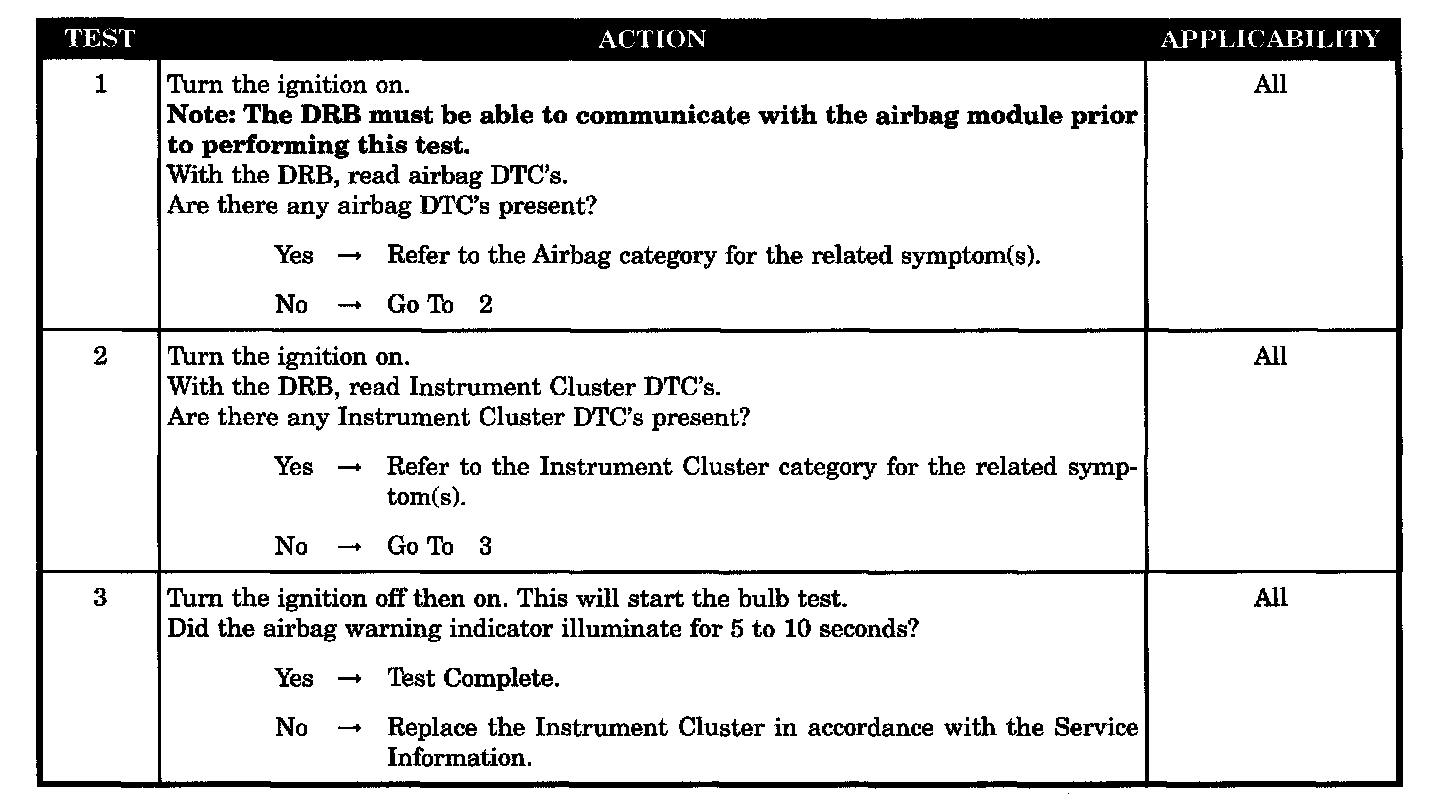

Test 1 - 3:






SYMPTOM
AIRBAG WARNING INDICATOR NOT OPERATING PROPERLY

POSSIBLE CAUSES
- Airbag trouble codes
- Other instrument cluster DTC'S
- Perform instrument cluster self test
