All Gauges Inoperative











SYMPTOM
ALL GAUGES INOPERATIVE

POSSIBLE CAUSES

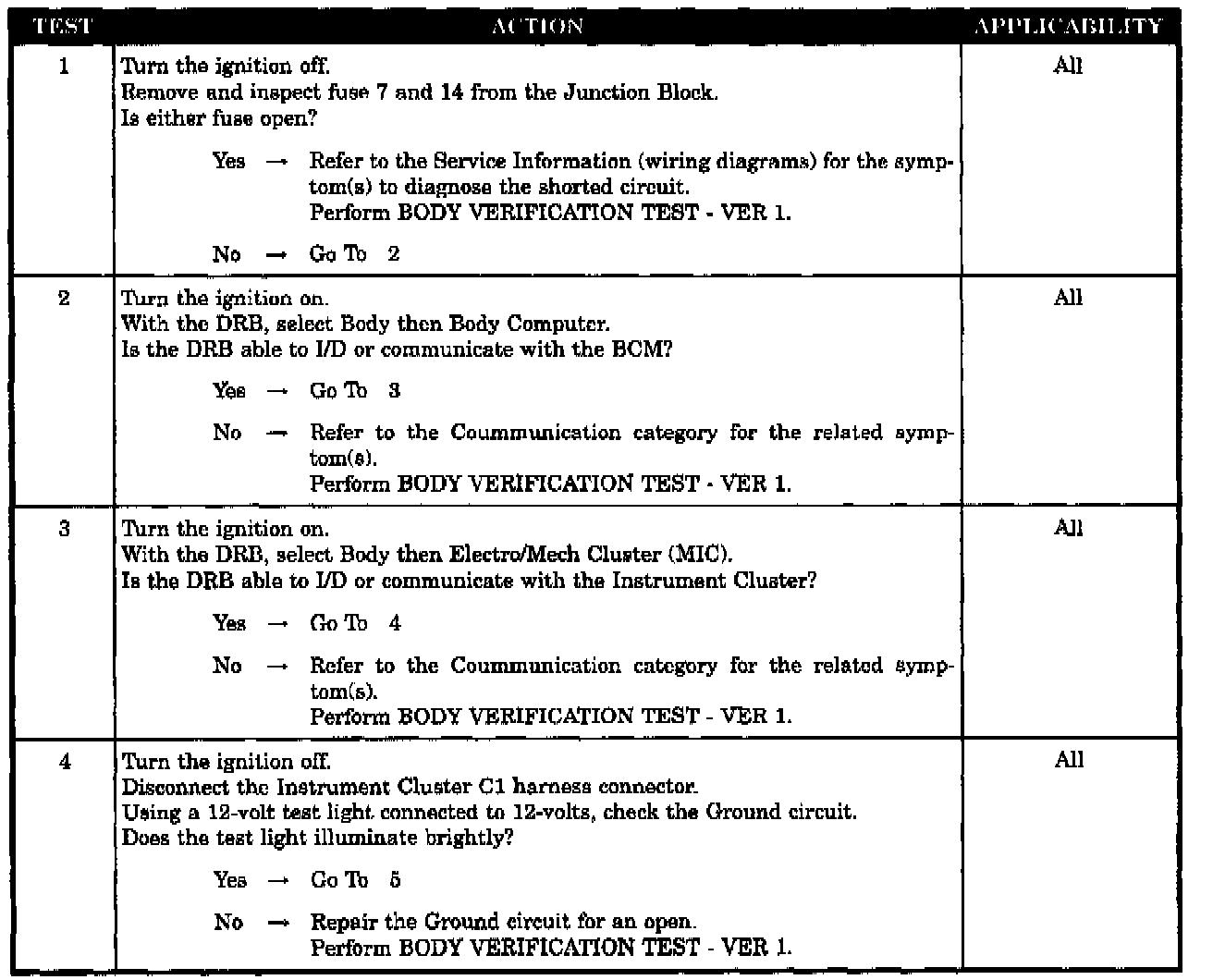

- CHECKING BCM COMMUNICATION
- CHECKING I/P FUSES
- HECKING INSTRUMENT CLUSTER COMMUNICATION

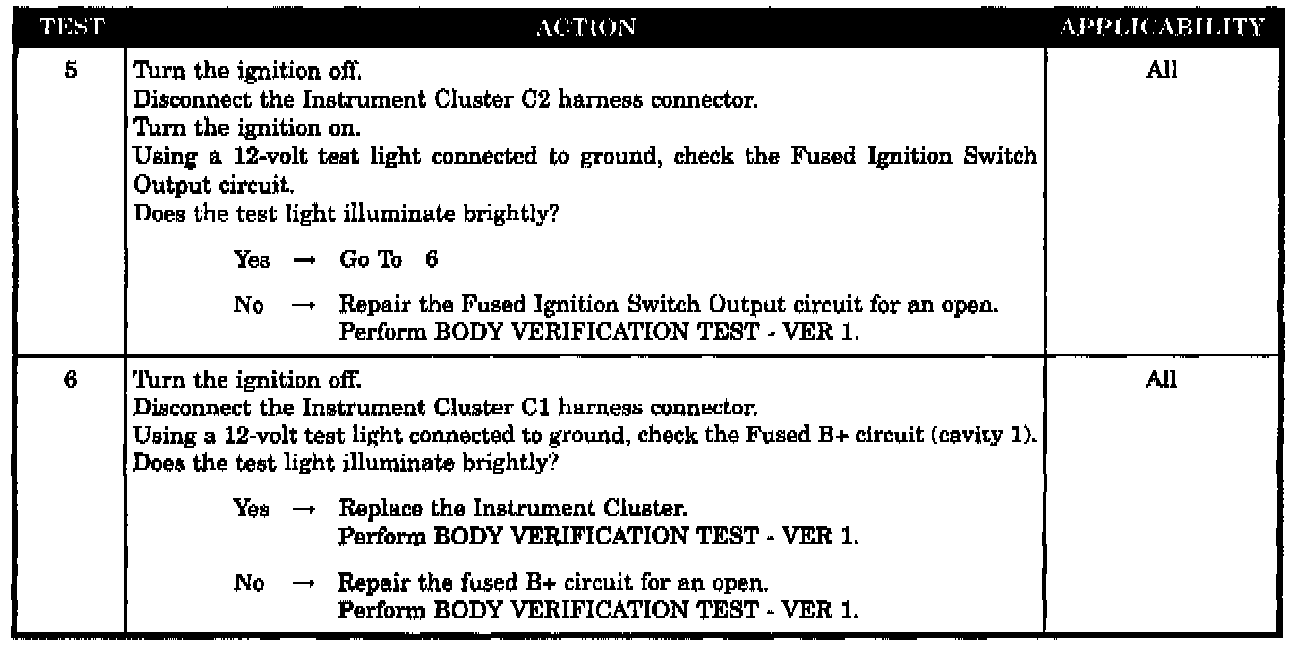

- FUSED B+ CIRCUIT OPEN
- FUSED IGNITION SWITCH OUTPUT CIRCUIT OPEN
- GROUND CIRCUIT OPEN
- INSTRUMENT CLUSTER
