Temperature Display Inoperative or Wrong

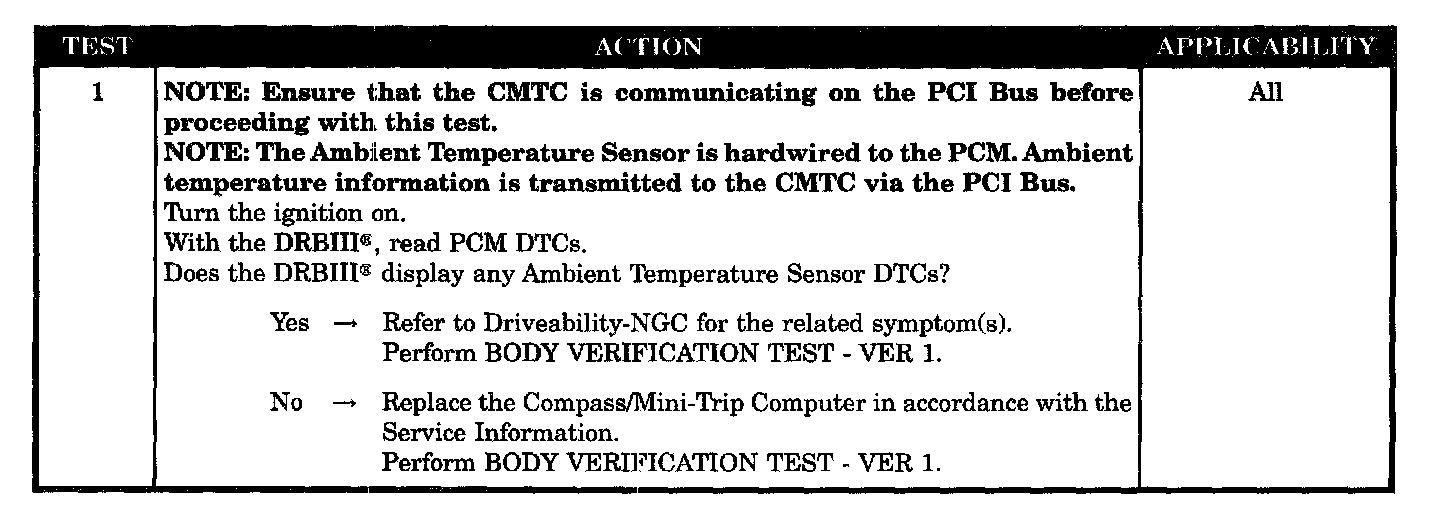

Test 1:
SYMPTOM
TEMPERATURE DISPLAY INOPERATIVE OR WRONG
POSSIBLE CAUSES
-
Ambient temperature sensor DTC in
PCM
-
Compass/mini-trip computer
