Decklid Ajar Indicator Not Operating Properly

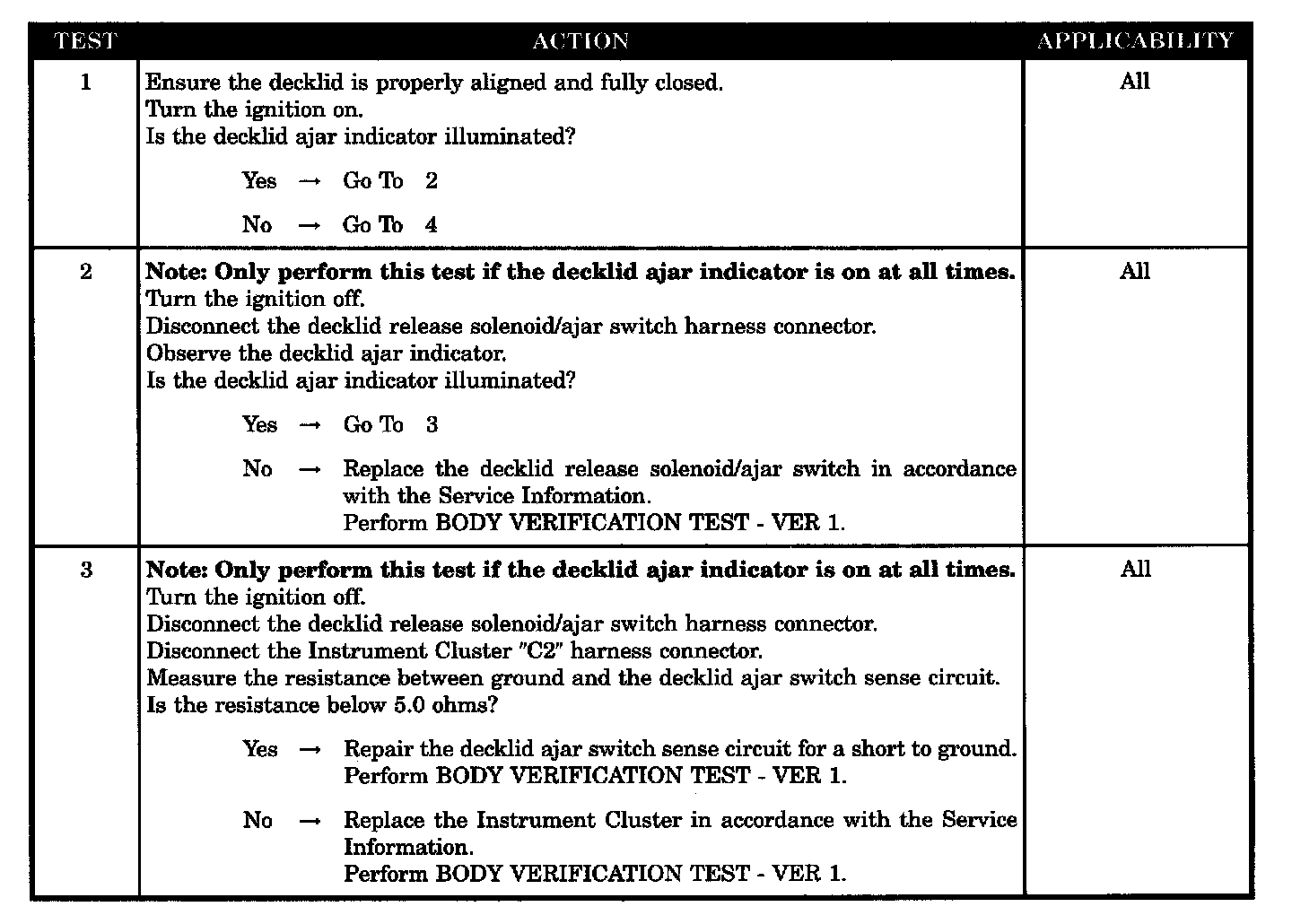

Test 1 - 3:

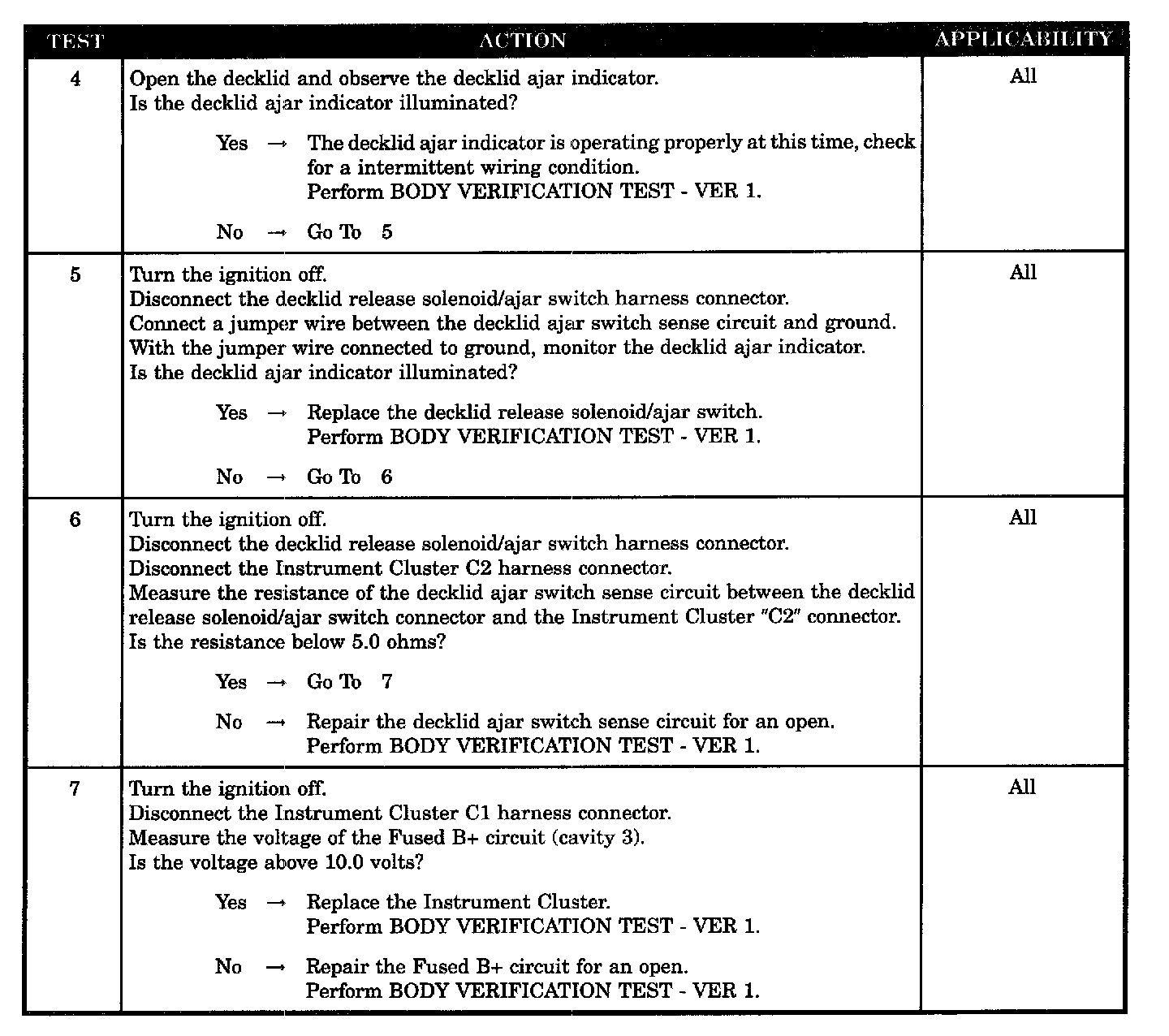

Test 4 - 7:

SYMPTOM
DECKLID AJAR INDICATOR NOT OPERATING PROPERLY

POSSIBLE CAUSES
- Instrument cluster
- Decklid ajar switch sense circuit shorted to ground
- Decklid release solenoid/ajar switch shorted to ground
- Instrument cluster
- Open decklid ajar switch sense circuit
- Open decklid and observe the decklid ajar indicator
- Open decklid release solenoid/ajar switch
- Open fused B+ circuit
