Fog Lamps Will Not Turn Off

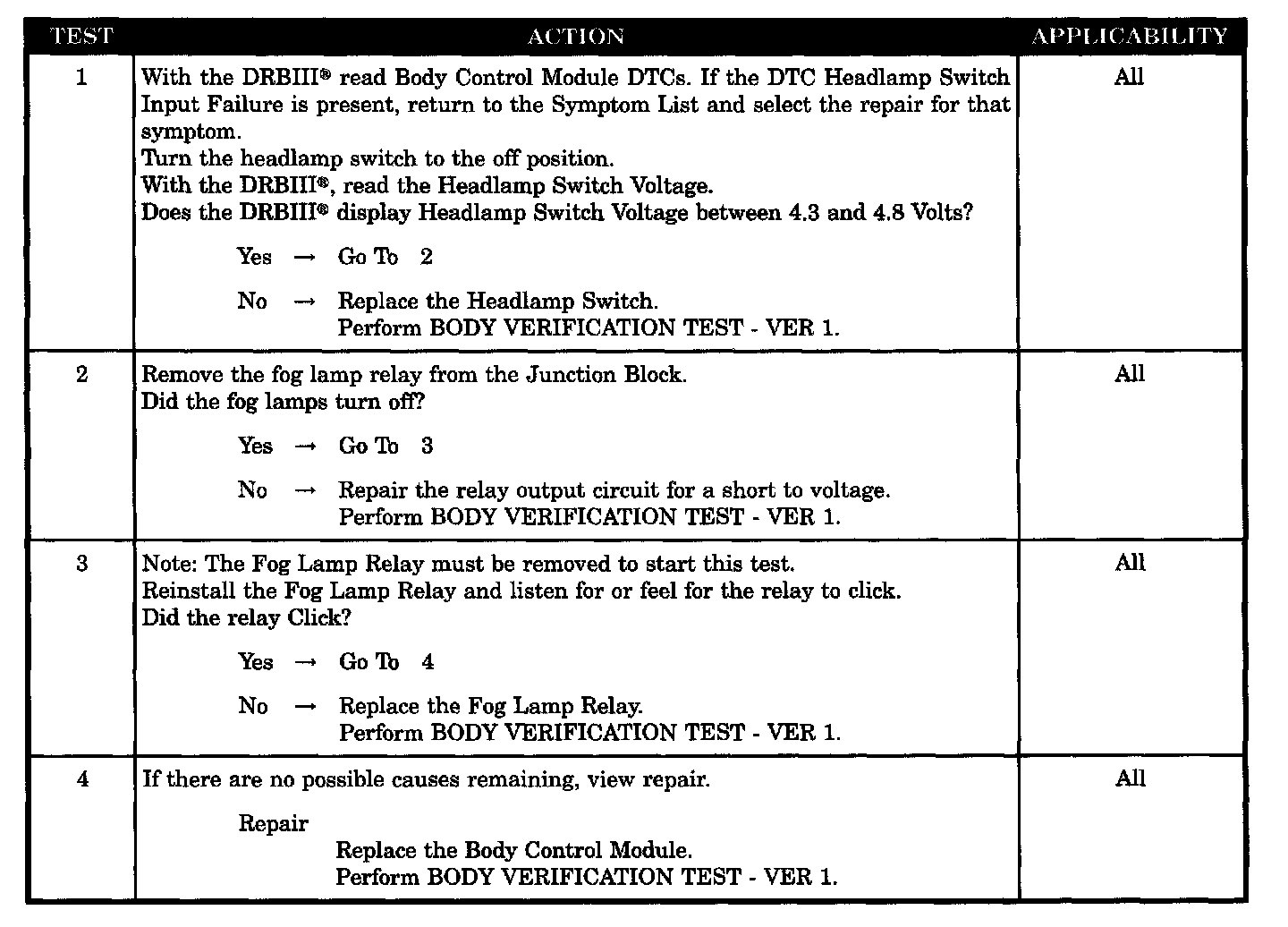

Test 1 - 4:






SYMPTOM
FOG LAMPS WILL NOT TURN OFF

POSSIBLE CAUSES
- Fog lamp relay output circuit shorted to voltage
- Body control module
- Fog lamp relay
- Headlamp switch
