One Remote Radio Switch Inoperative

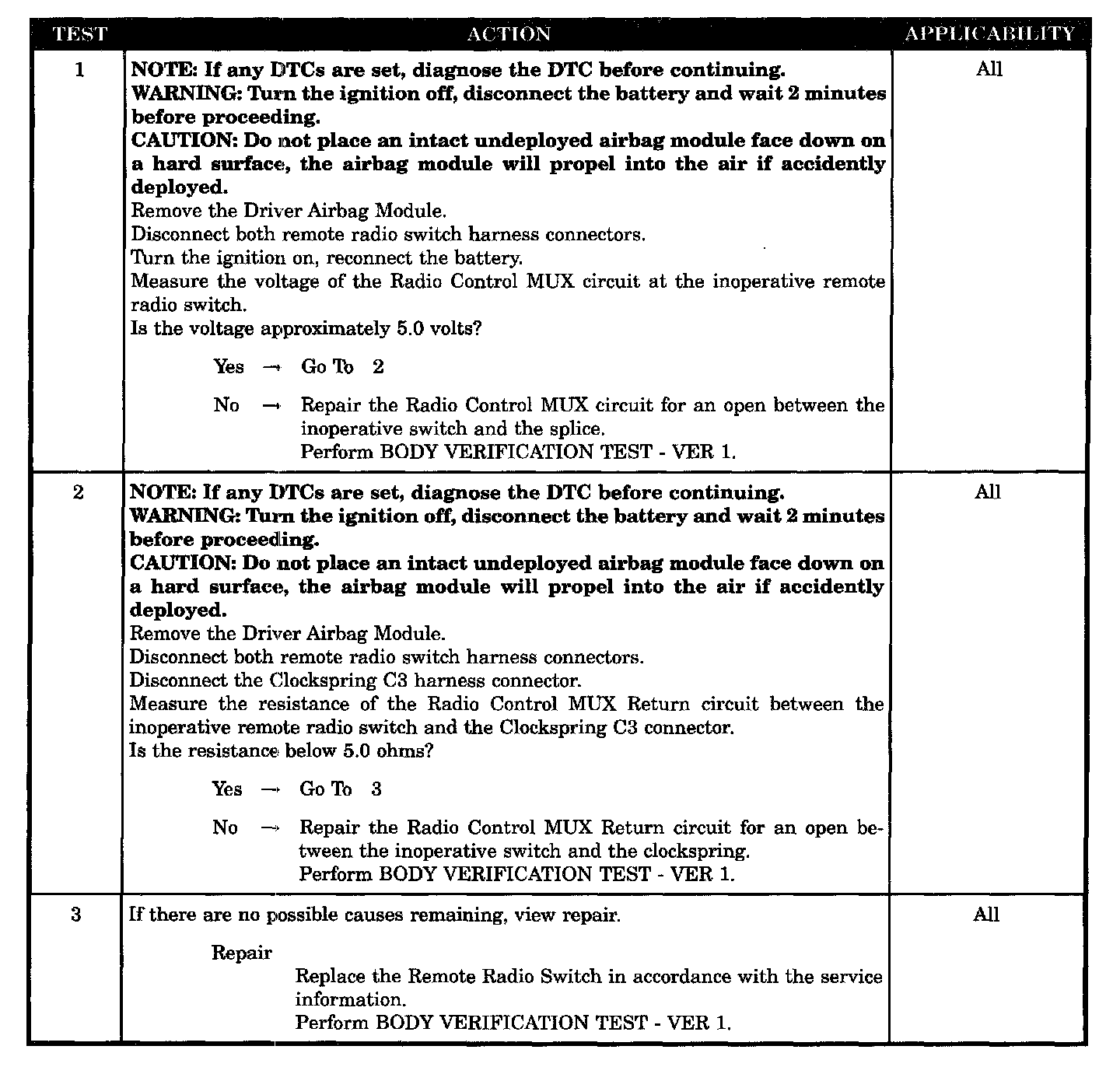

Test 1 - 3:






SYMPTOM
ONE REMOTE RADIO SWITCH INOPERATIVE

POSSIBLE CAUSES
- Open radio control MUX circuit at the switch
- Open radio control MUX return circuit at the switch
- Remote radio switch
