Checking the A/C Relay Output

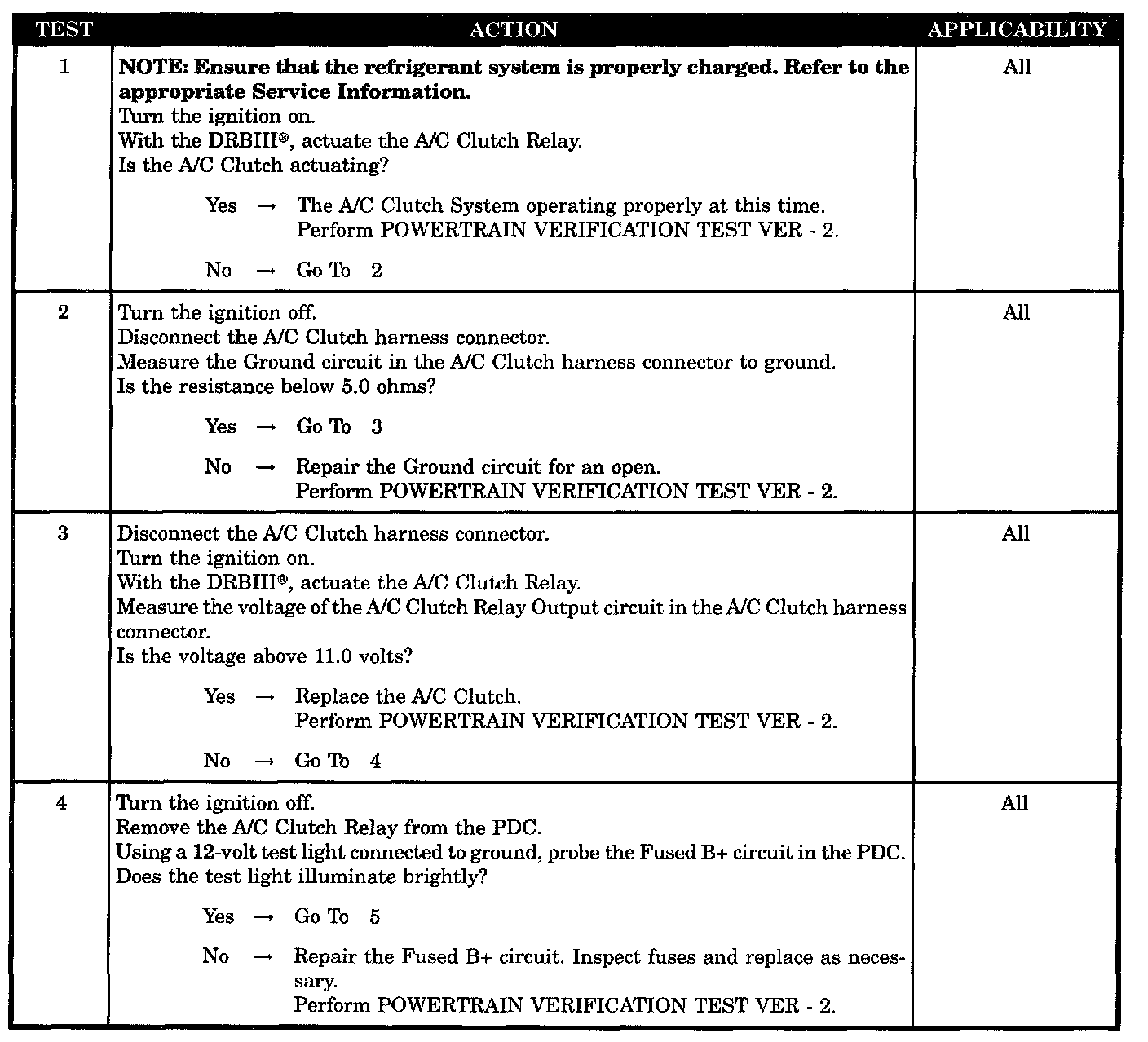

Tests 1 - 4:

Test 5:

SYMPTOM
CHECKING THE A/C RELAY OUTPUT

POSSIBLE CAUSES
- A/C clutch relay operation
- Ground circuit open
- A/C clutch
- Fused B+ circuit
- A/C clutch output circuit
- A/C clutch relay
