Brake Warning Indicator Inoperative

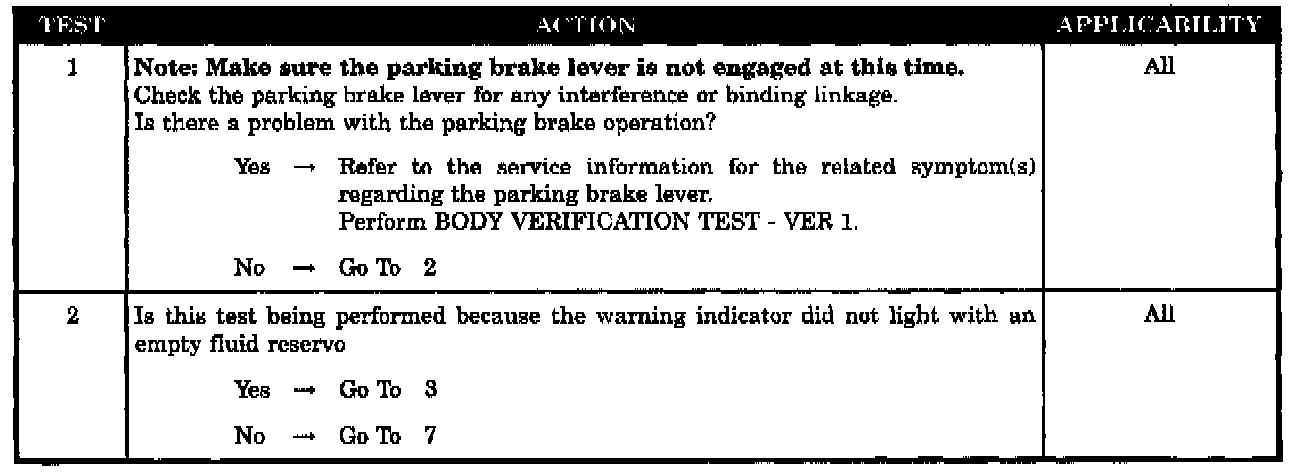

Test 1 - 2:

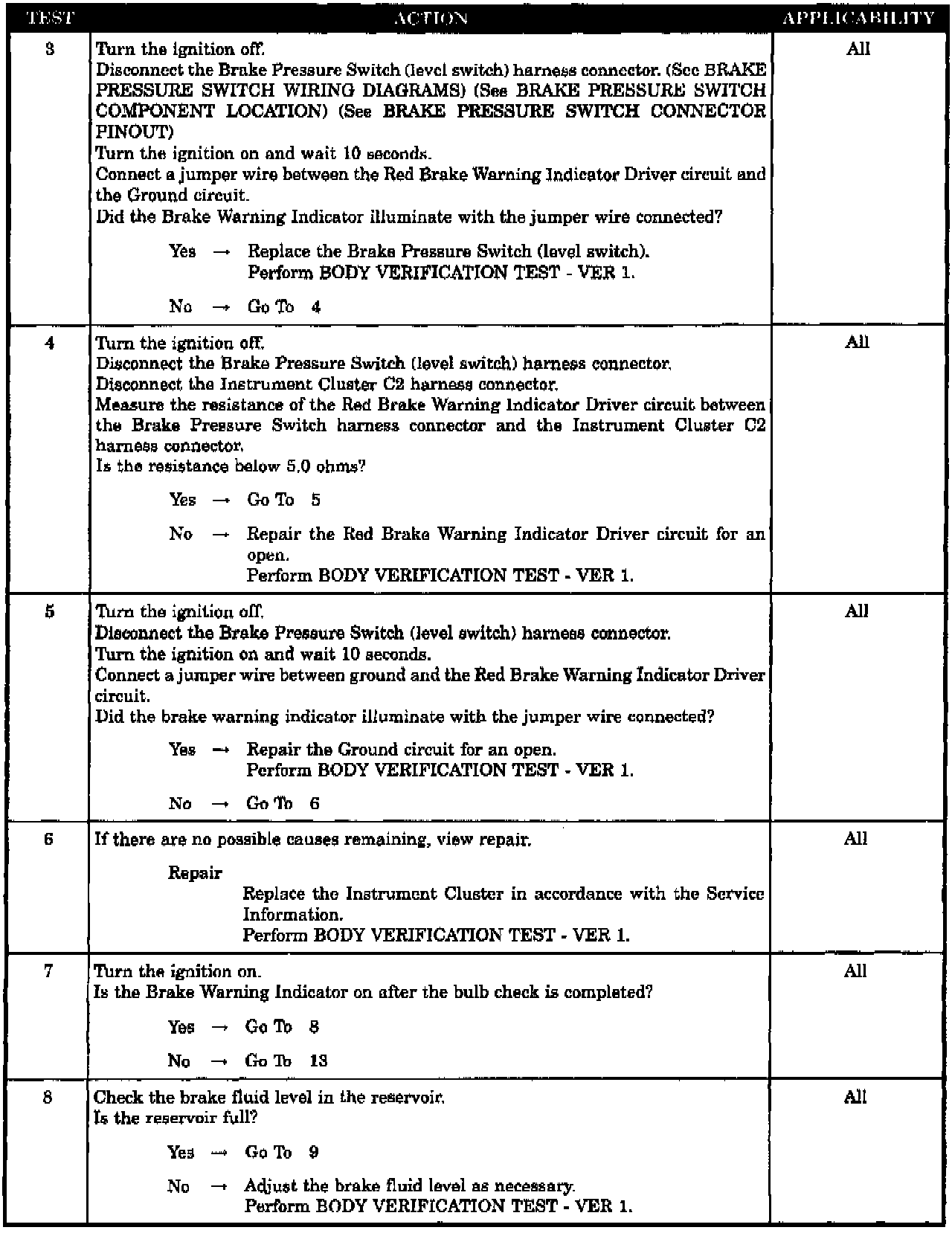

Test 3 - 8:

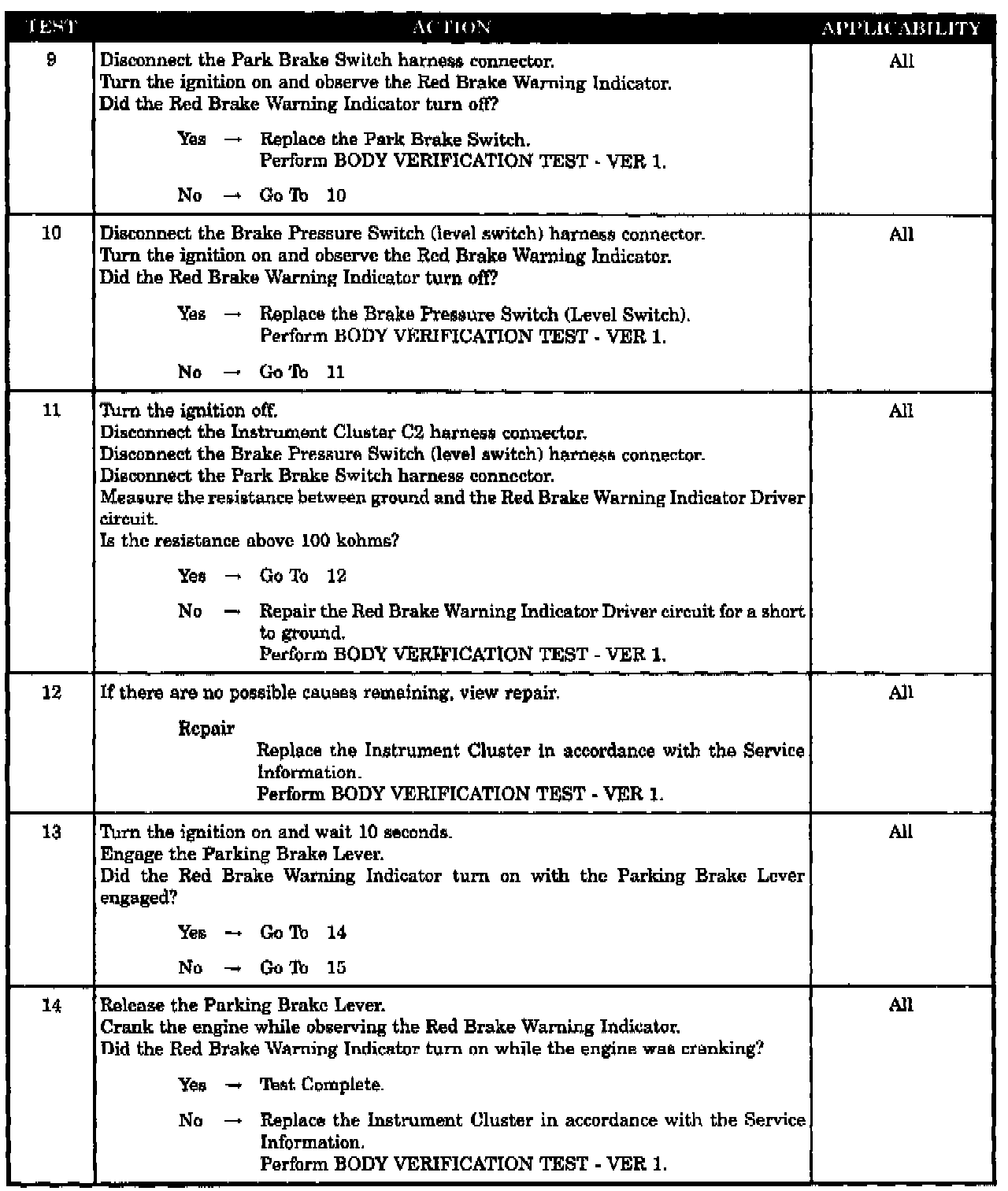

Test 9 - 14:

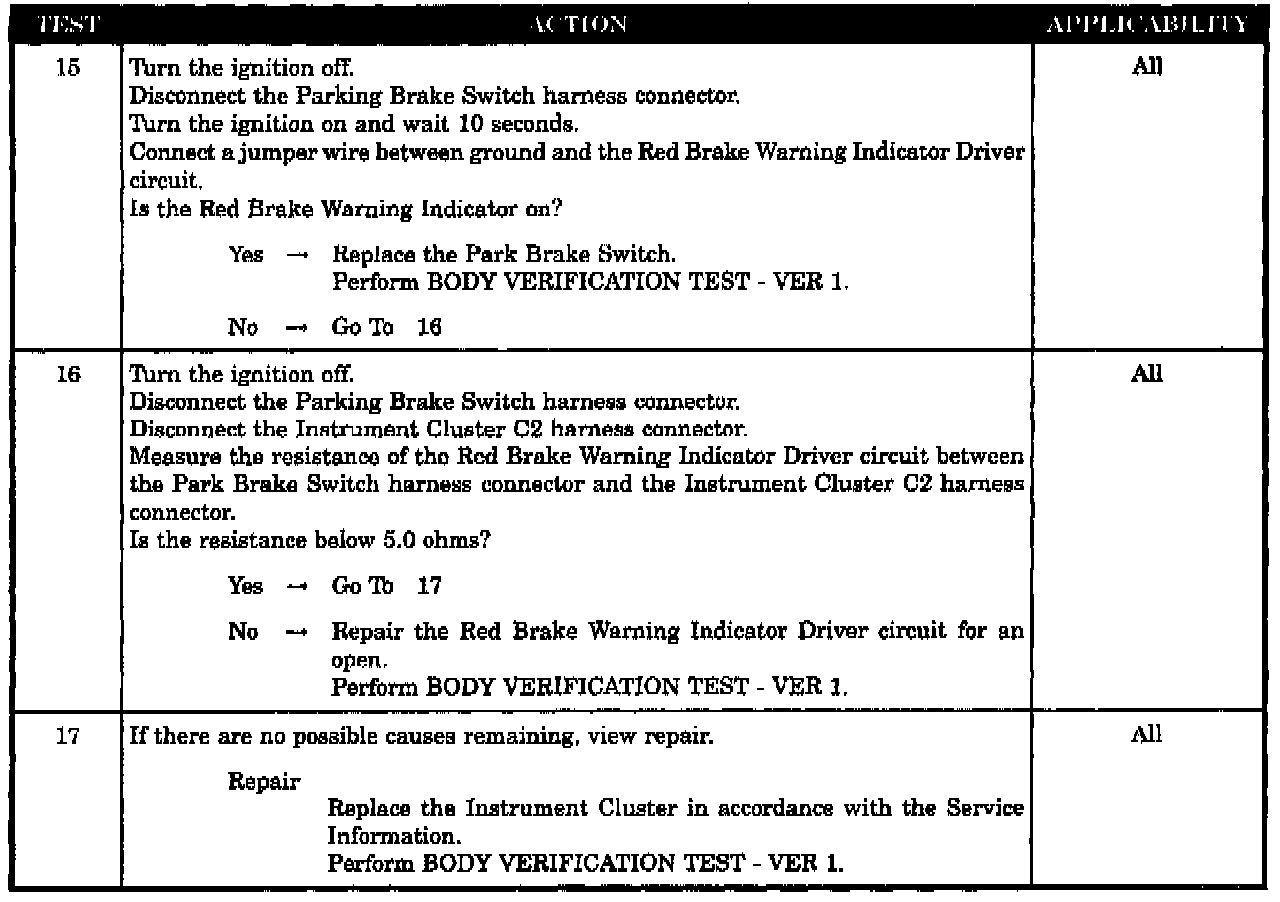

Test 15 - 17:

SYMPTOM
BRAKE WARNING INDICATOR INOPERATIVE

POSSIBLE CAUSES
- CHECK THE PARKING BRAKE LEVER
- BRAKE PRESSURE SWITCH (LEVEL SWITCH) OPEN
- CHECK THE BRAKE FLUID LEVEL
- MONITOR THE BRAKE WARNING INDICATOR WHILE CRANKING ENGINE
- ROUND CIRCUIT OPEN
- PARK BRAKE SWITCH OPEN
- PARK BRAKE SWITCH SHORTED TO GROUND
- BRAKE PRESSURE SWITCH (LEVEL SWITCH) SHORTED TO GROUND
- OPEN RED BRAKE WARNING INDICATOR DRIVER CIRCUIT
- RED BRAKE WARNING INDICATOR DRIVER CIRCUIT OPEN
- INSTRUMENT CLUSTER
- RED BRAKE WARNING INDICATOR DRIVER CIRCUIT SHORTED TO GROUND
- INSTRUMENT CLUSTER
- INSTRUMENT CLUSTER
