Ignition Switch: Installation

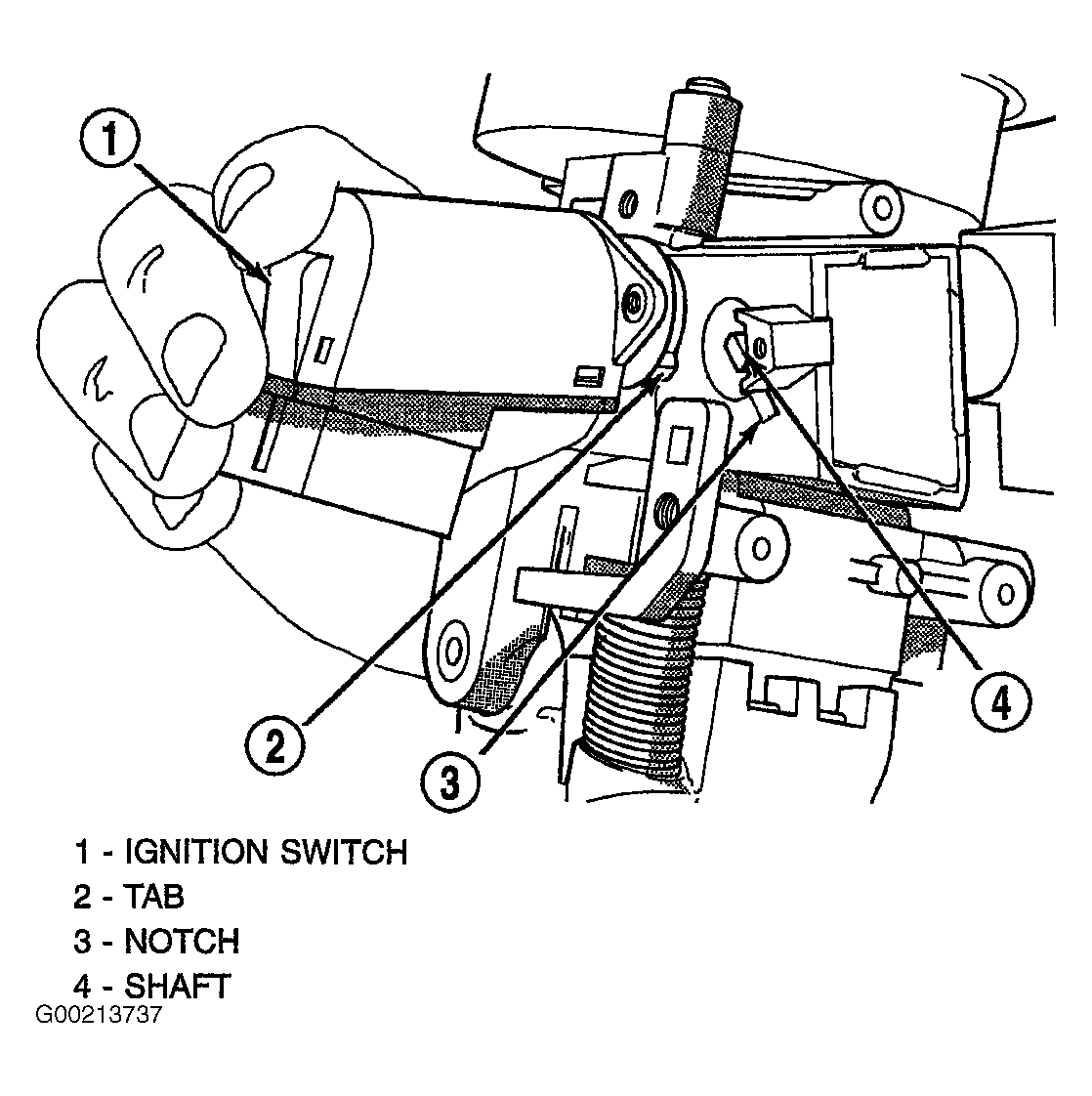

- A tab on the ignition switch indexes to a notch in the lock cylinder housing. A slot in the end of the ignition switch fits over the shaft in the end of the lock cylinder housing. See Fig 1
. Use the ignition key to rotate the lock cylinder to align the ignition switch with lock cylinder housing.
- Install and tighten ignition switch mounting screws.
- Attach electrical connector to ignition switch.
- Install multifunction switch
- Install SKIM. Install upper and lower cover on steering column. Install tilt lever.
- Connect negative battery cable.
Courtesy of CHRYSLER CORP.
