Component Locations

NOTE: For component locations, see Fig 3 -Fig 6 .
COMPONENT LOCATIONS

Component Location
Body Control Module On Back Of Junction Block
Data Link Connector Under Left Side Of Instrument Panel, Above Brake Pedal
Door 6-Pin Connector At Leading Edge Of Appropriate Door
Junction Block Behind Left Instrument Panel End Cap
Memory Heated Seat/Mirror Module Under Driver Seat
Memory Set Switch On Outboard Side Of Driver Seat
Power Mirror Switch On Door Trim Panel
Rear Window Defogger Relay Right Side Of Trunk, Under Carpet

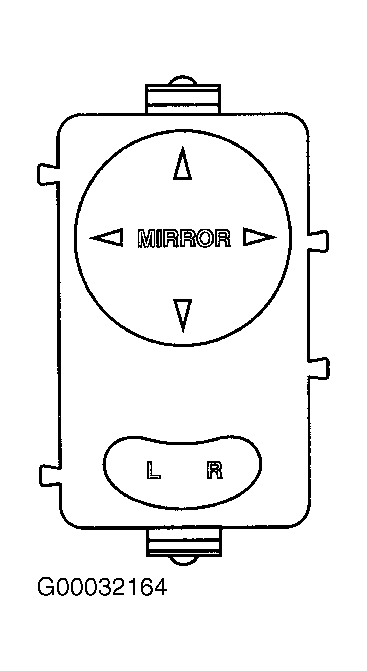

Fig 1: Identifying Power Mirror Switch
G00032164Courtesy of DAIMLERCHRYSLER CORP.

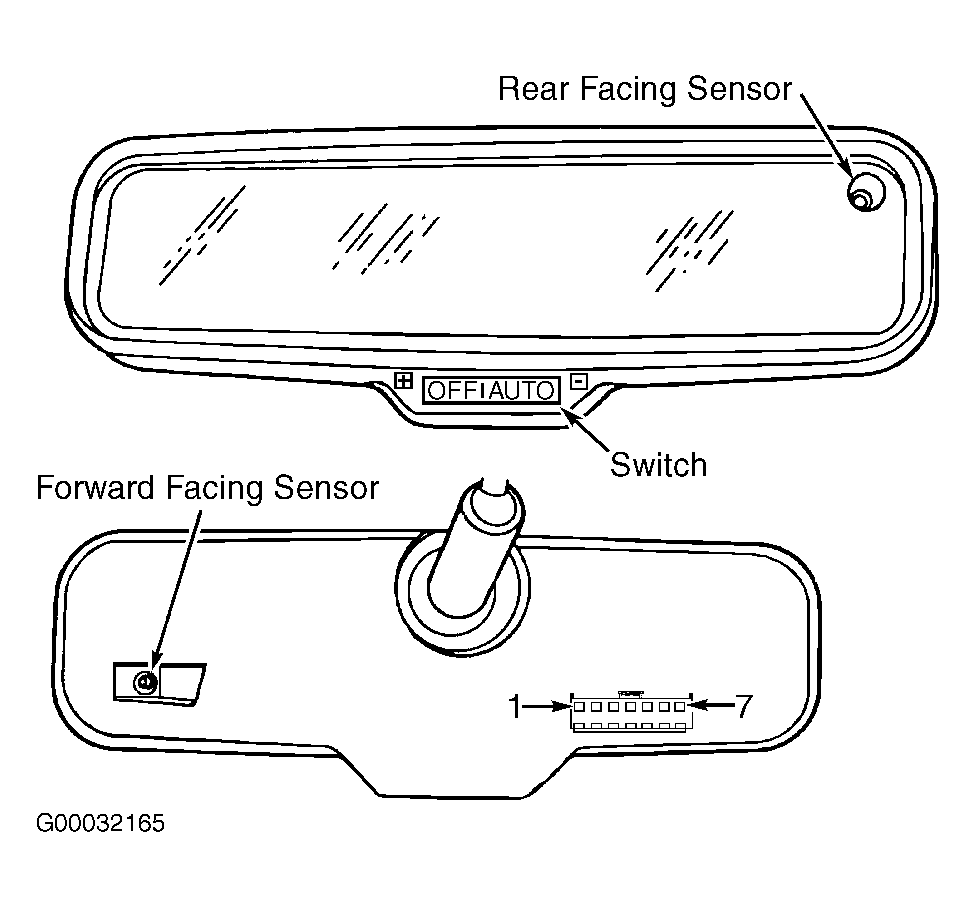

Fig 2: Identifying Automatic Day/Night Mirror
G00032165Courtesy of DAIMLERCHRYSLER CORP.
Fig 3: Locating Door 6-Pin Connector
G00032166Courtesy of DAIMLERCHRYSLER CORP.
Fig 4: Locating Body Control Module & Junction Block
G98E00083Courtesy of DAIMLERCHRYSLER CORP.
Fig 5: Locating Data Link Connector
G98I00156Courtesy of DAIMLERCHRYSLER CORP.
Fig 6: Locating Memory Heated Seat/Mirror Module (Viewed From Under Driver's Seat)
G99E02124Courtesy of DAIMLERCHRYSLER CORP.
