Power Mirror Switch

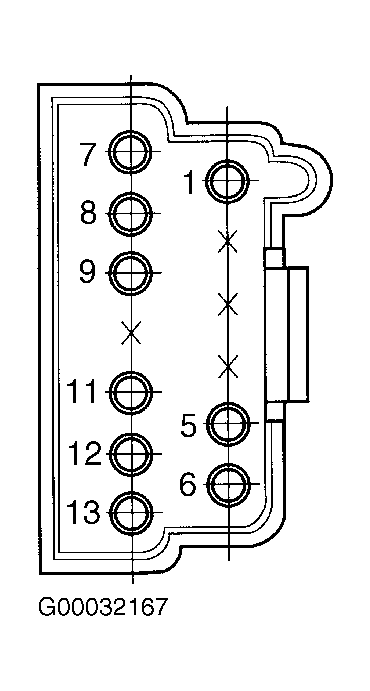

Remove power mirror switch. See POWER MIRROR SWITCH under REMOVAL & INSTALLATION. Using a DVOM, check continuity between specified power mirror switch connector terminals (switch side) with switch in appropriate position. See POWER MIRROR SWITCH CONTINUITY TEST table. See Fig 1 . If continuity does not exist, replace switch.
POWER MIRROR SWITCH CONTINUITY TEST
| Mirror Selector Position | Continuity Between Terminals No. | |
|---|---|---|
| "L" (Left) | ||
| Up | 1 & 9; 11 & 12; 12 & 13 | |
| Down | 1 & 11; 9 & 12; 9 & 13 | |
| Left | 1 & 9; 7 & 11; 8 & 11 | |
| Right | 1 & 11; 7 & 9; 8 & 9 | |
| "R" (Right) | ||
| Up | 2 & 9; 11 & 12; 11 & 13 | |
| Down | 6 & 11; 9 & 12; 9 & 13 | |
| Left | 6 & 9; 7 & 11; 8 & 11 | |
| Right | 6 & 11; 7 & 9; 8 & 9 | |
