Airbag Control Module (Orc) Connector End View

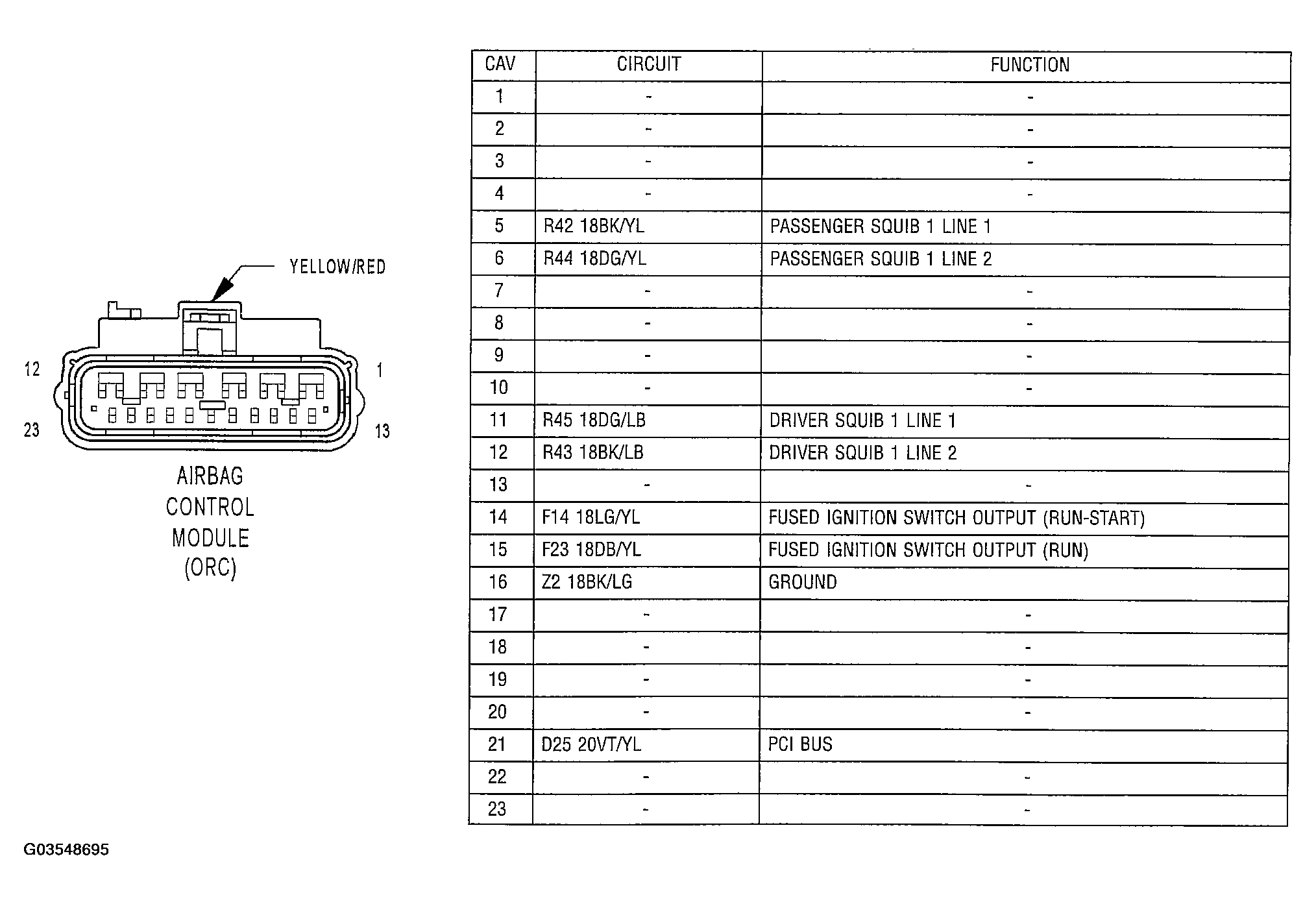

Fig 1: Airbag Control Module (Orc)

G03548695

Courtesy of CHRYSLER GROUP, LLC
