Body Control Module C1 Connector End View

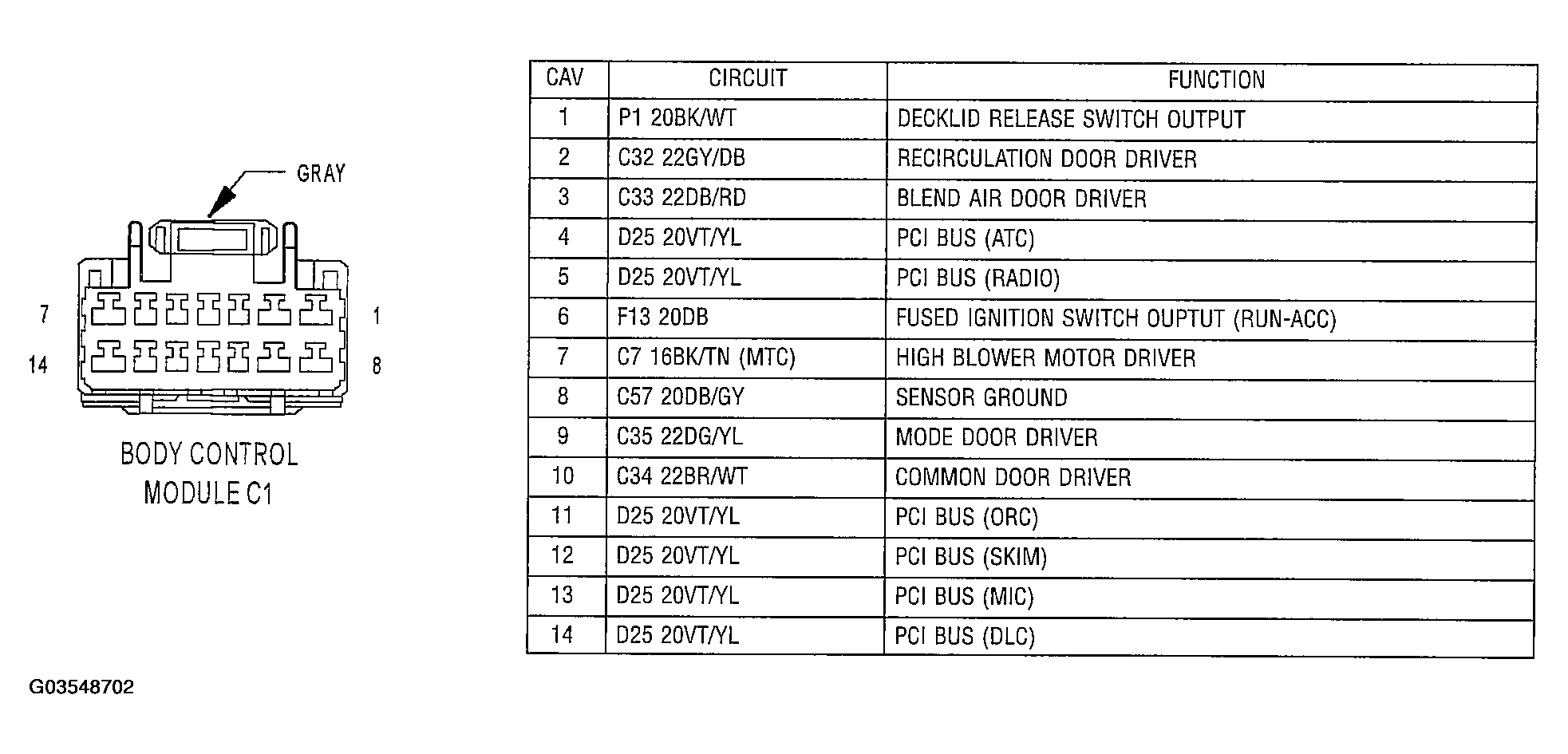

Fig 1: Body Control Module C1
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
