Body Control Module C3 Connector End View

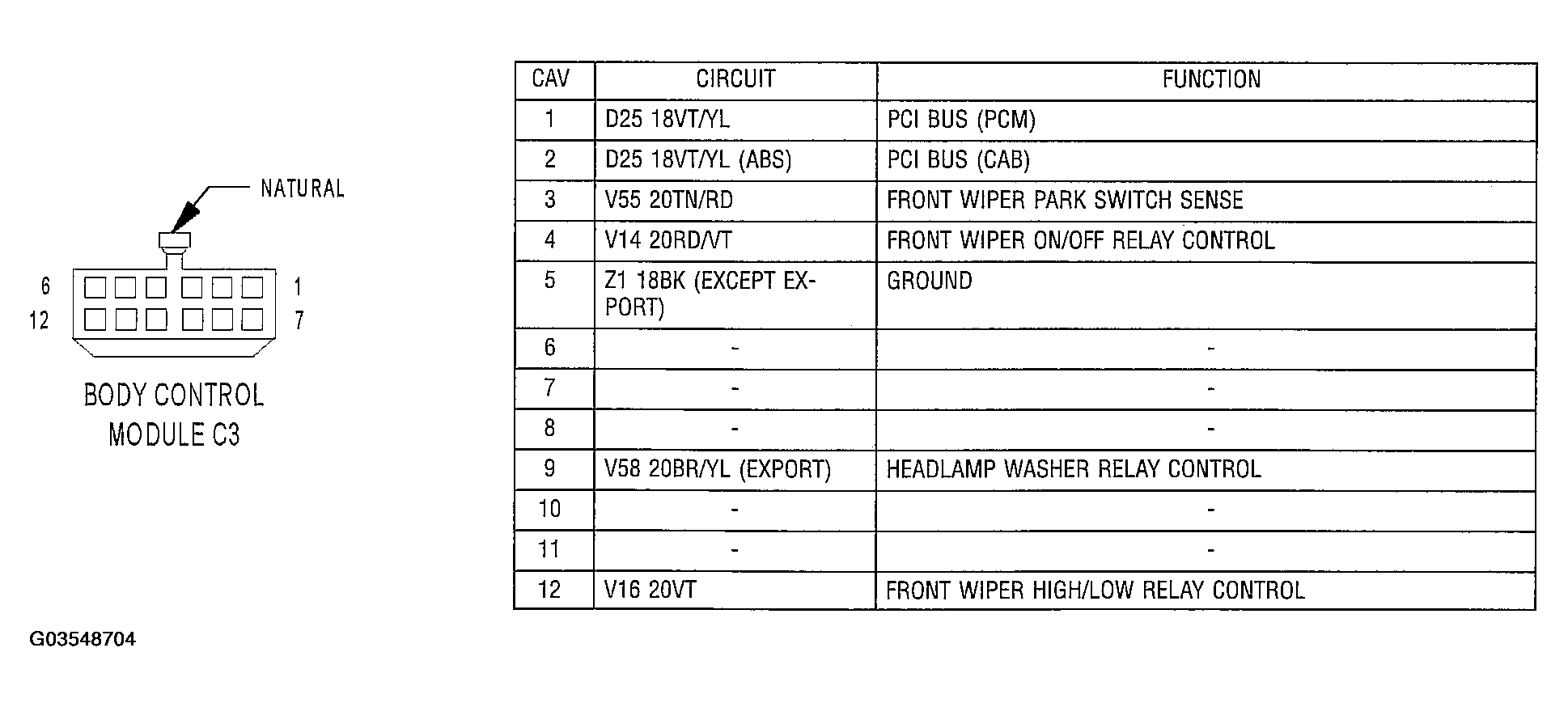

Fig 1: Body Control Module C3
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
