Compact Disc Changer (Midline/Premium) Connector End View

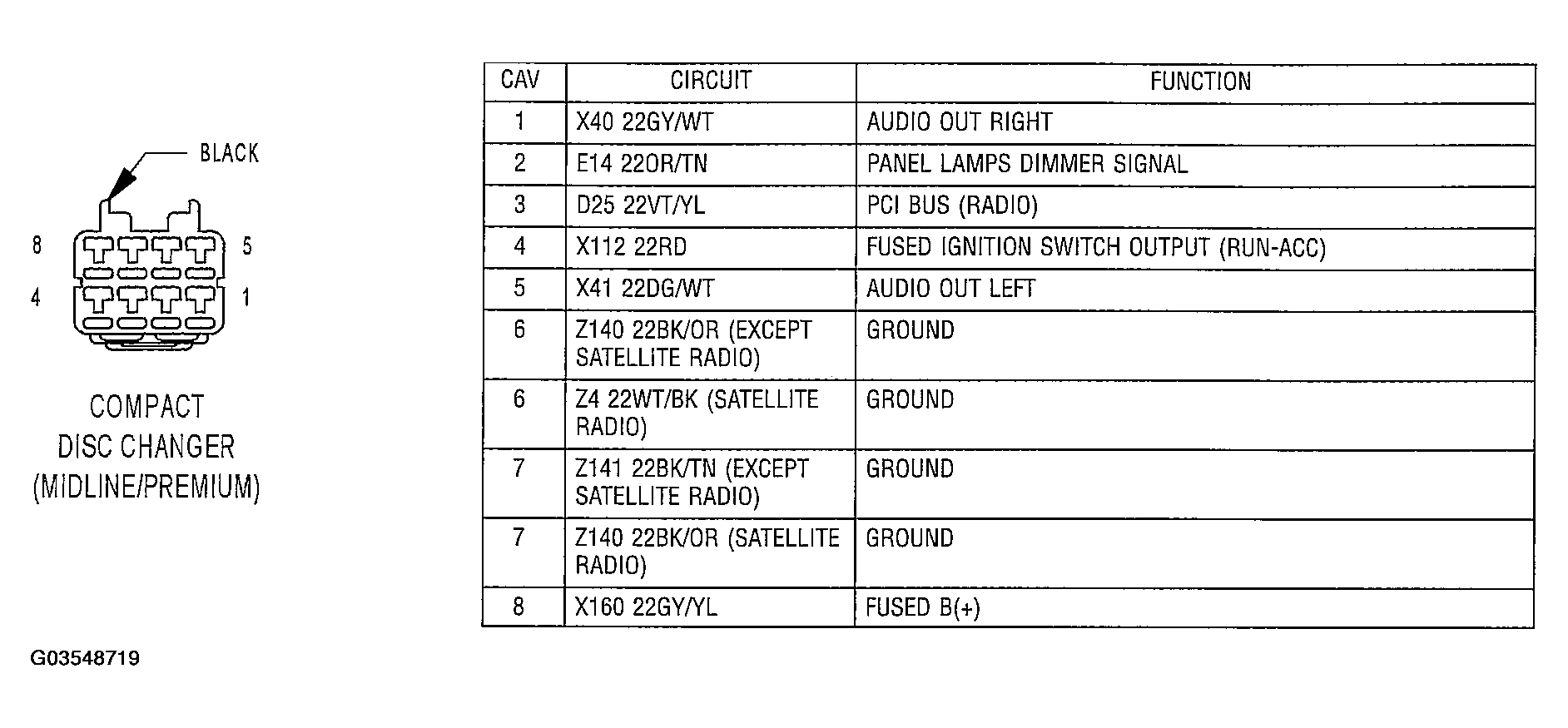

Fig 1: Compact Disc Changer (Midline/Premium)
G03548719Courtesy of CHRYSLER GROUP, LLC
