Decklid Release Switch Connector End View

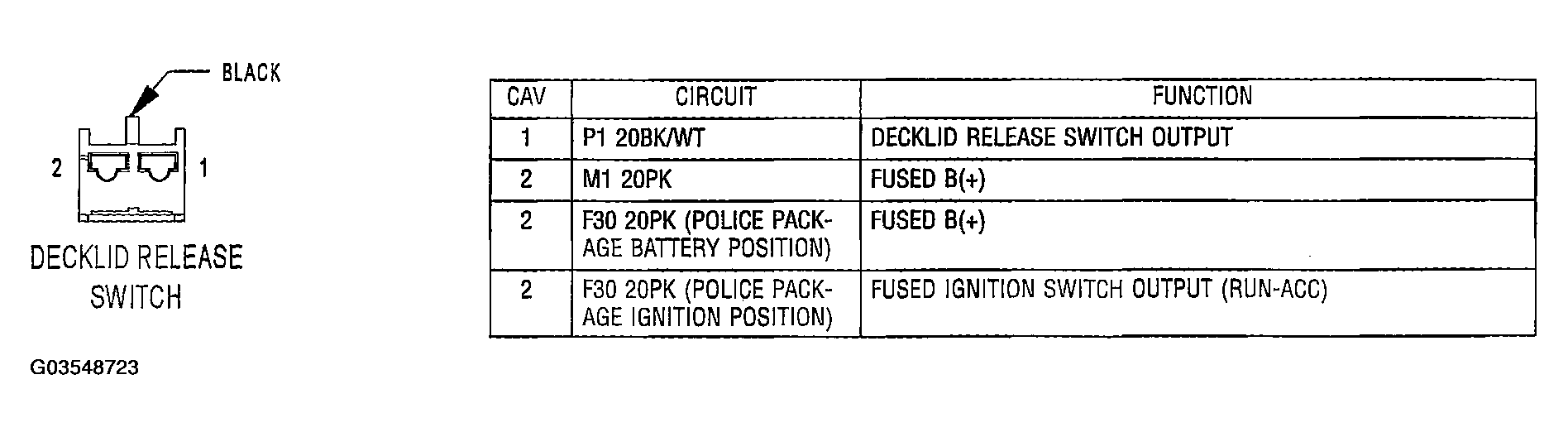

Fig 1: Decklid Release Switch
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
