Driver Door Lock Motor/Ajar Switch Connector End View

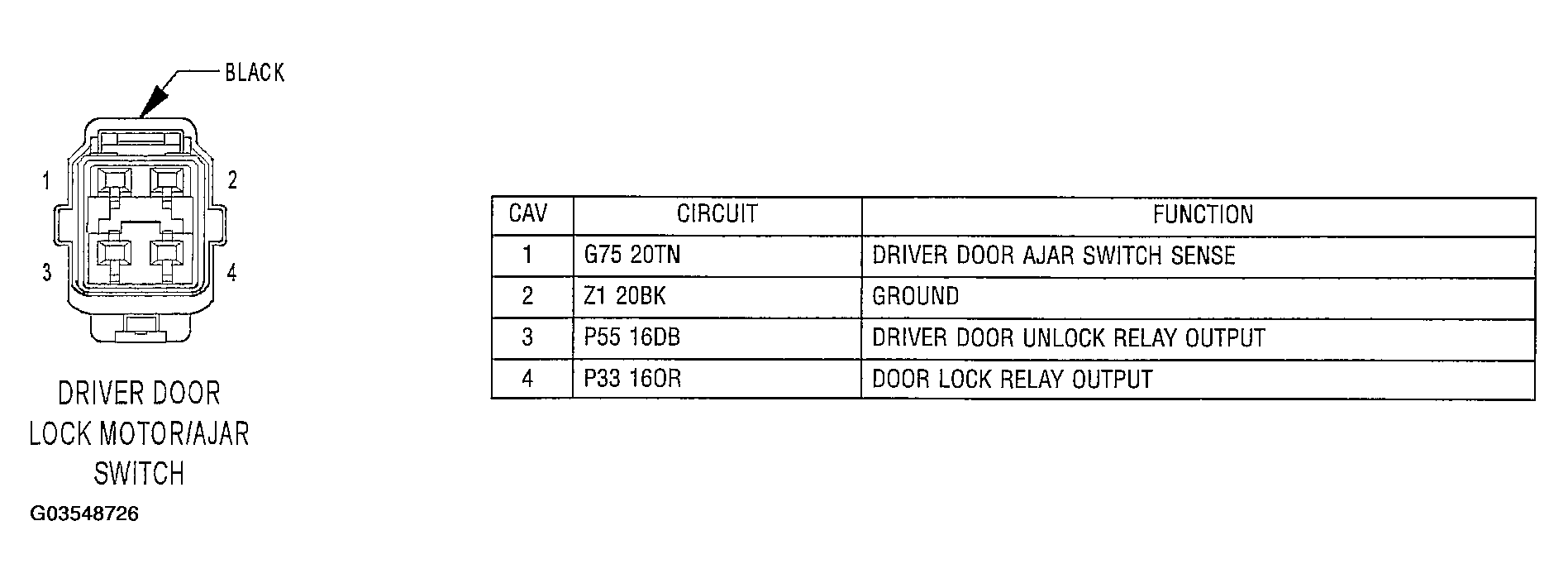

Fig 1: Driver Door Lock Motor/Ajar Switch
G03548726Courtesy of CHRYSLER GROUP, LLC
