Driver Power Seat Front Riser Motor Connector End View

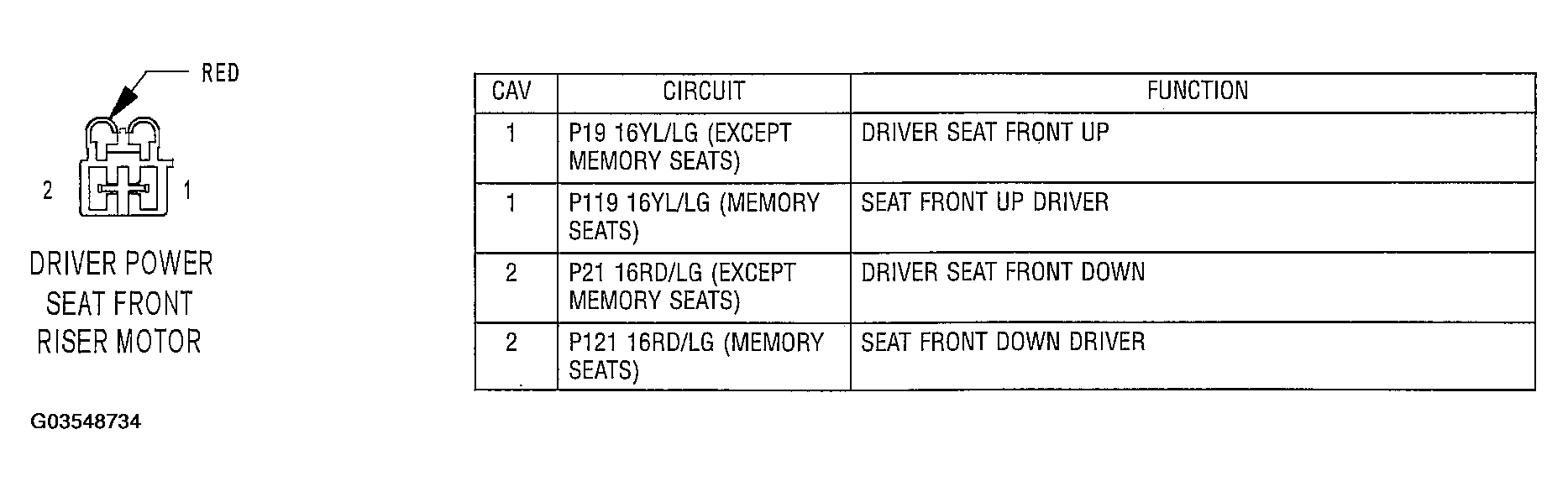

Fig 1: Driver Power Seat Front Riser Motor
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
