Driver Power Window Motor Connector End View

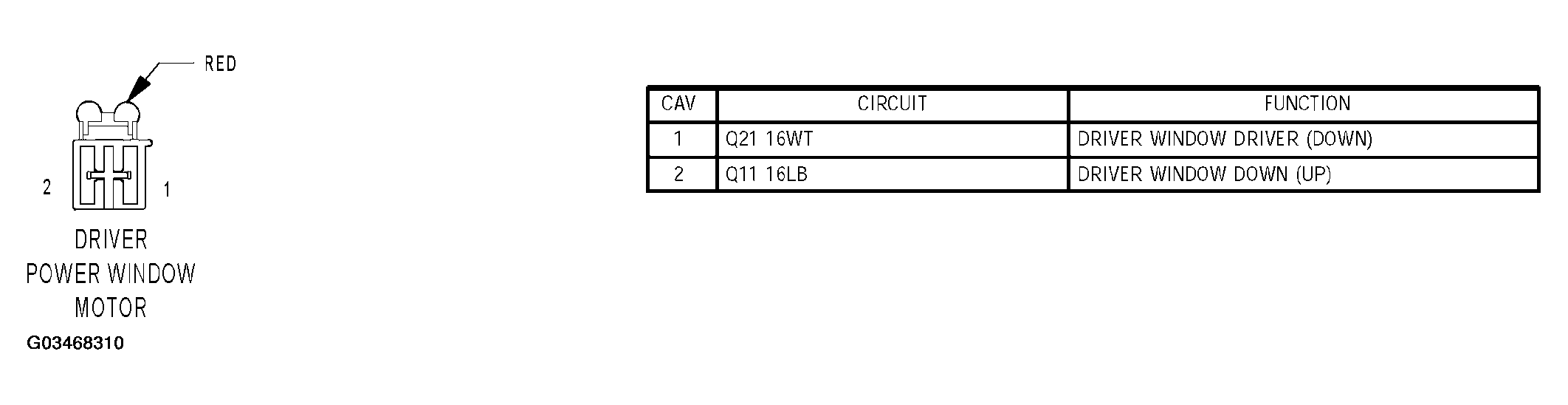

Fig 1: Driver Power Window Motor Connector End View
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
