Ignition Switch Connector End View

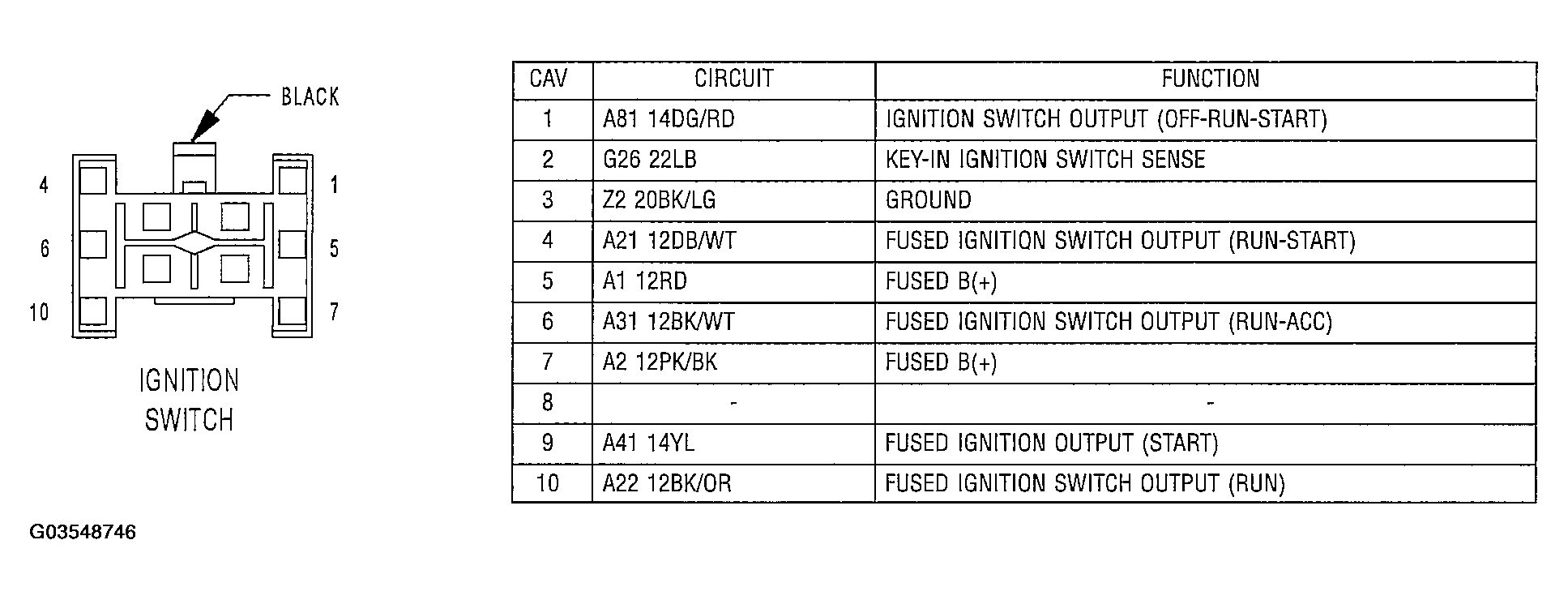

Fig 1: Ignition Switch
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
