Junction Block Body Control Module-Jb Connector End View

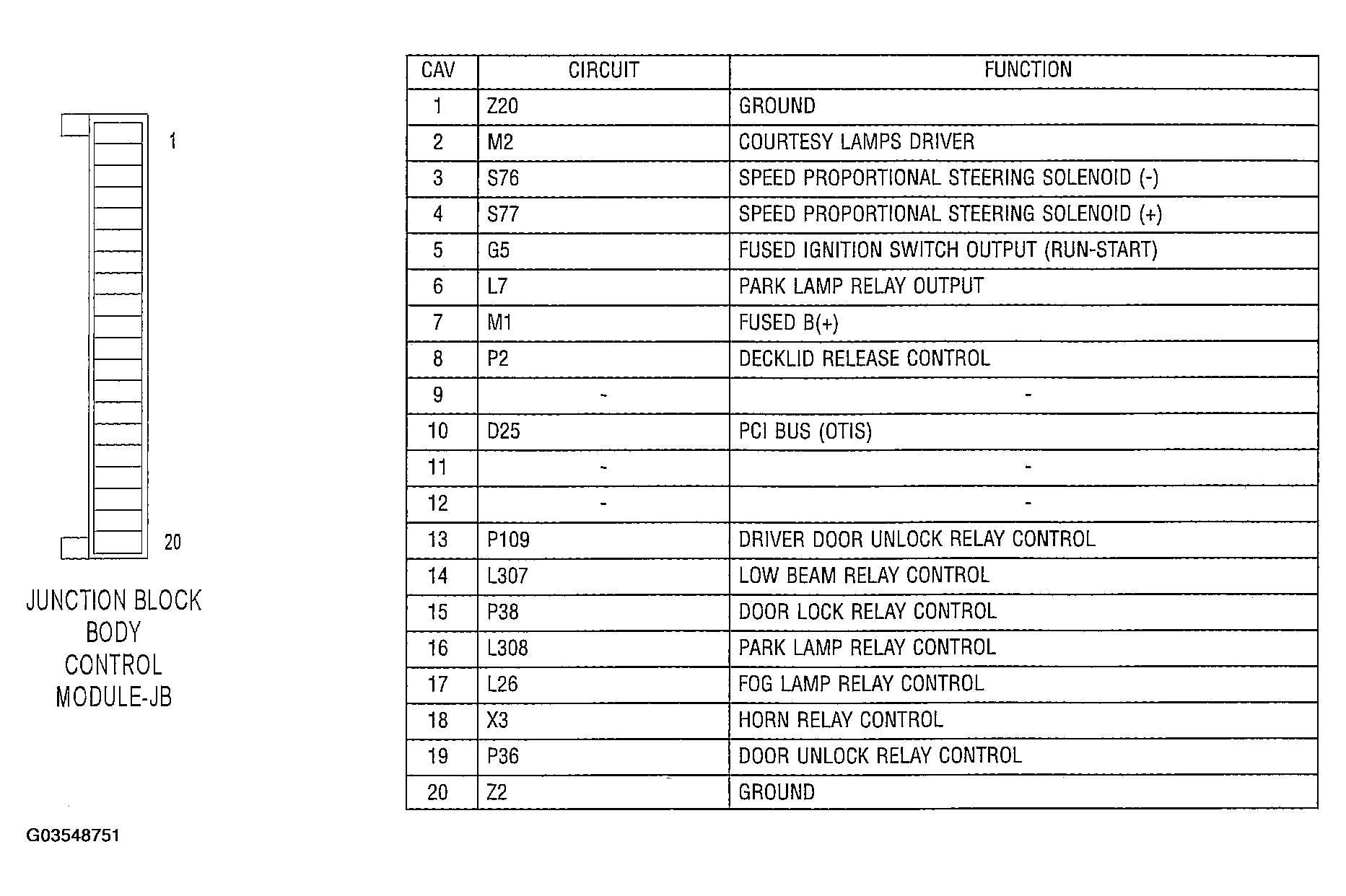

Fig 1: Junction Block Body Control Module-Jb
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
