Junction Block C4 Connector End View

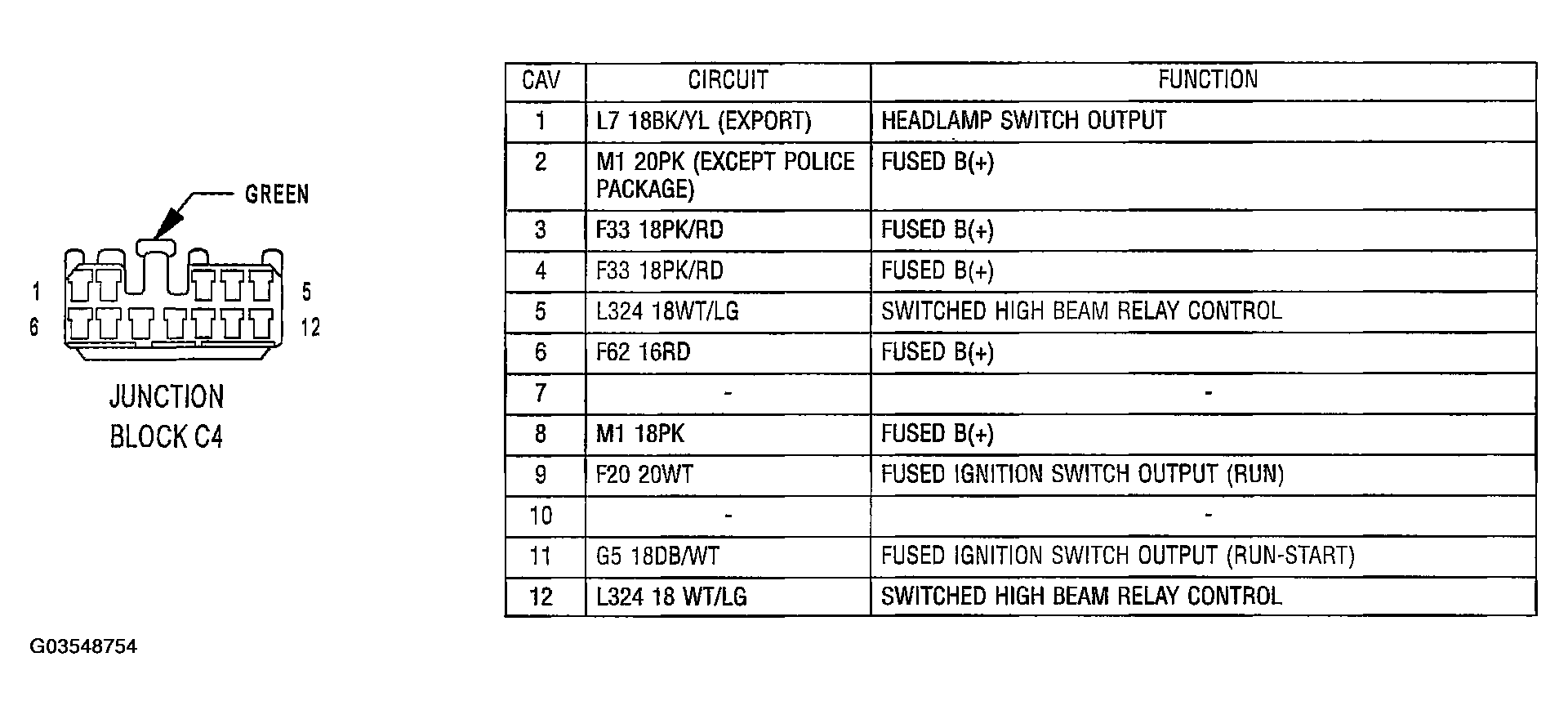

Fig 1: Junction Block C4
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
