Junction Block Connector End View (C3)

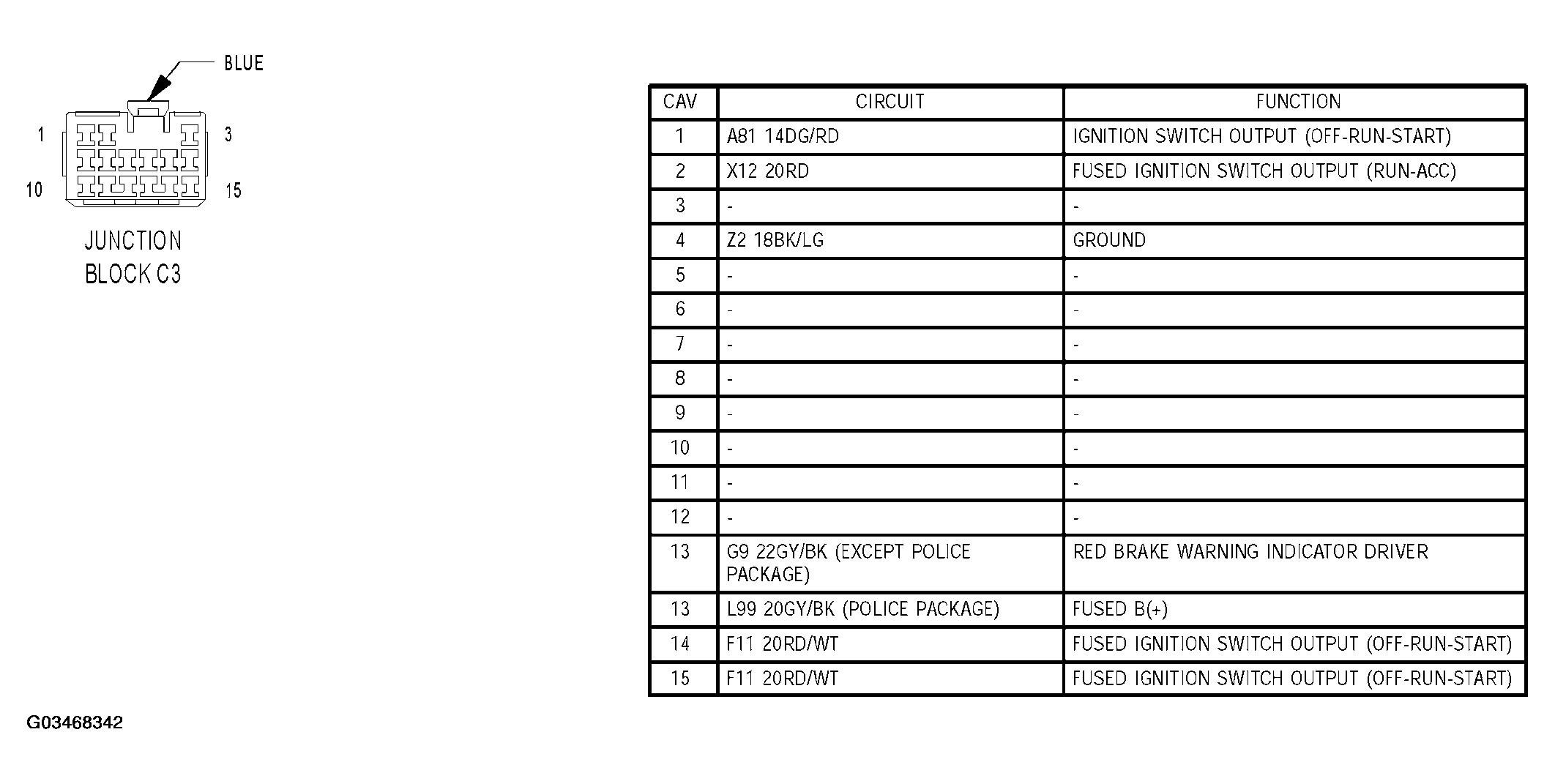

Fig 1: Junction Block Connector End View (C3)
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
