Left Front Position Lamp Connector End View

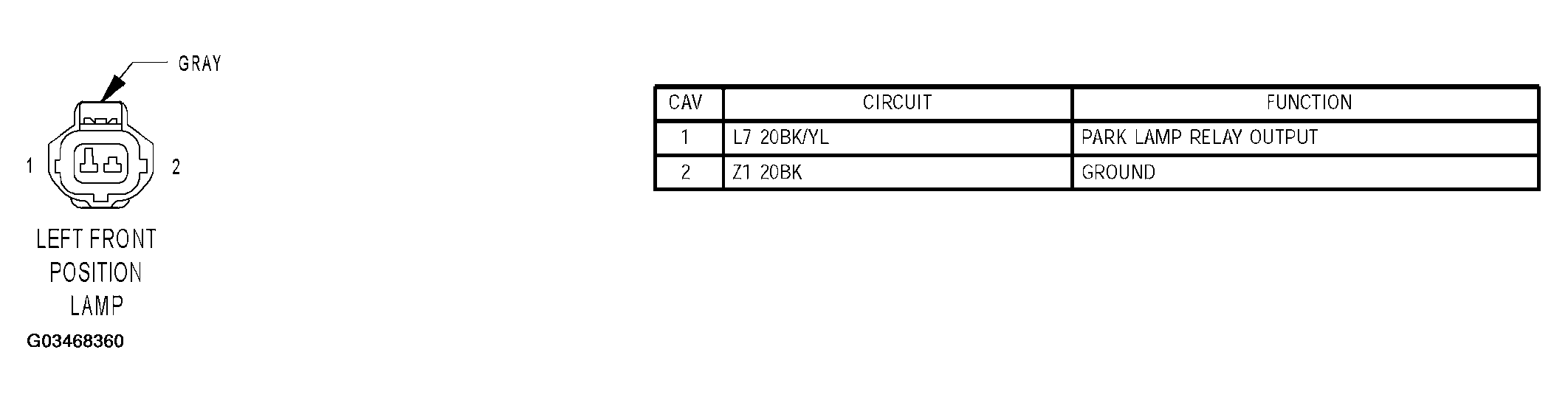

Fig 1: Left Front Position Lamp Connector End View
G03468360Courtesy of CHRYSLER GROUP, LLC

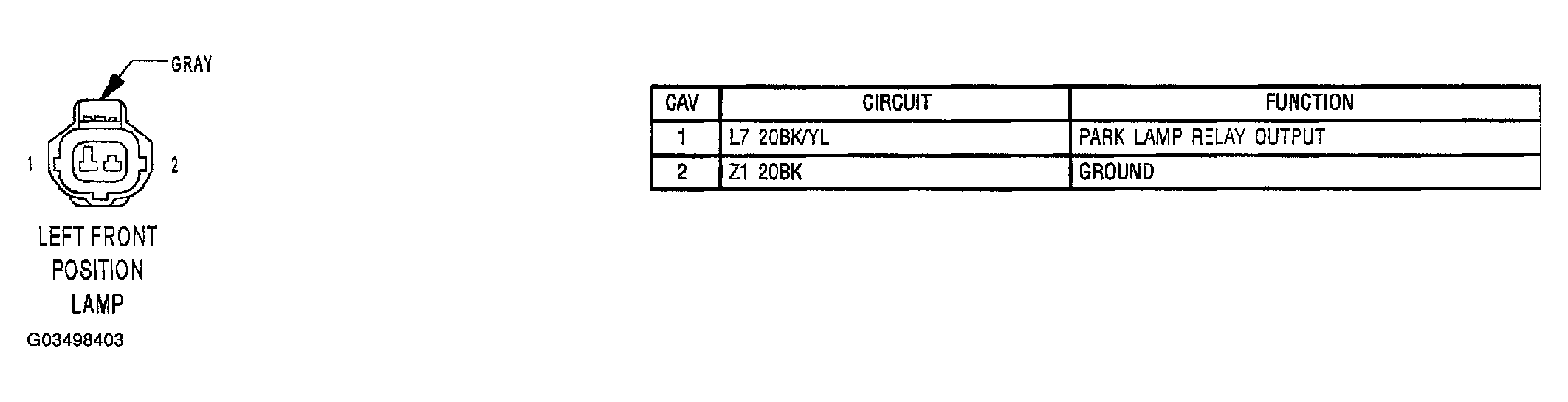

Fig 1: Left Front Position Lamp Connector End View
G03498403Courtesy of CHRYSLER GROUP, LLC
