Passenger Power Door Lock Switch Connector End View

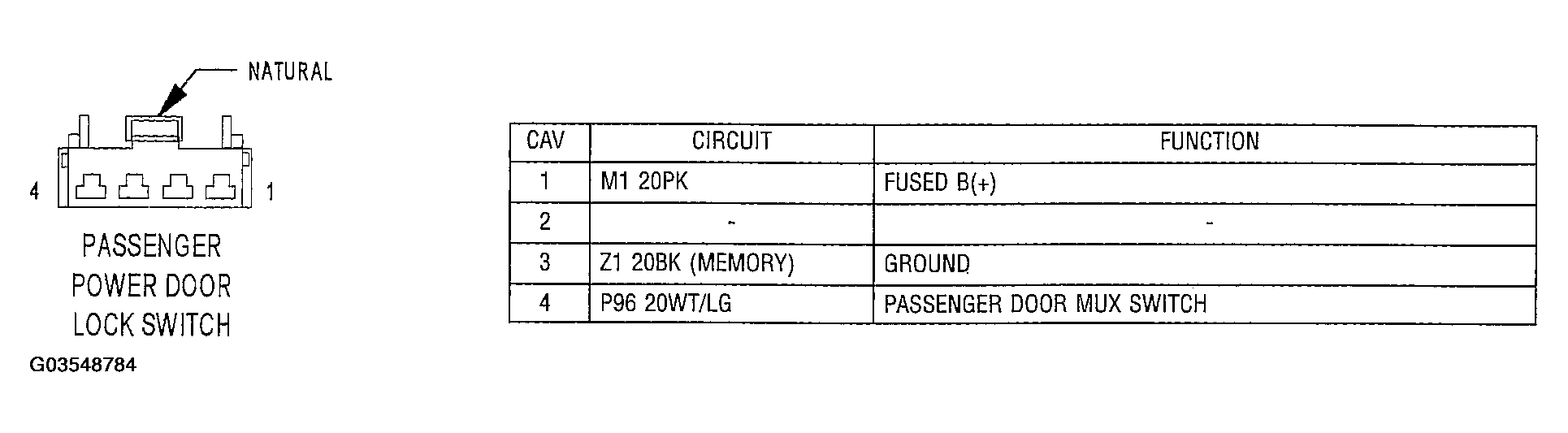

Fig 1: Passenger Power Door Lock Switch
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
