Power Amplifier Connector End View (C2)

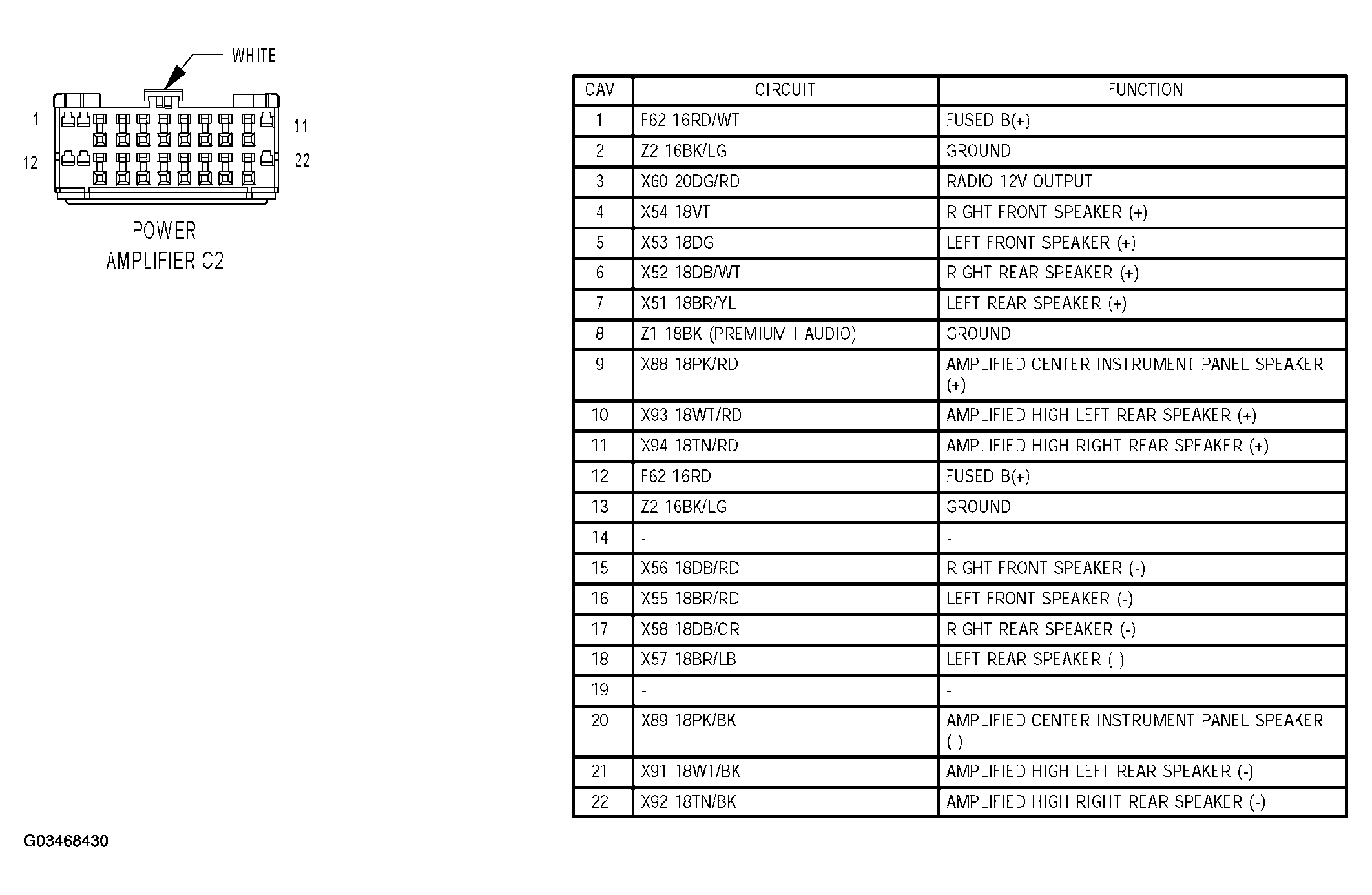

Fig 1: Power Amplifier Connector End View (C2)
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
