Powertrain Control Module C1 Connector End View

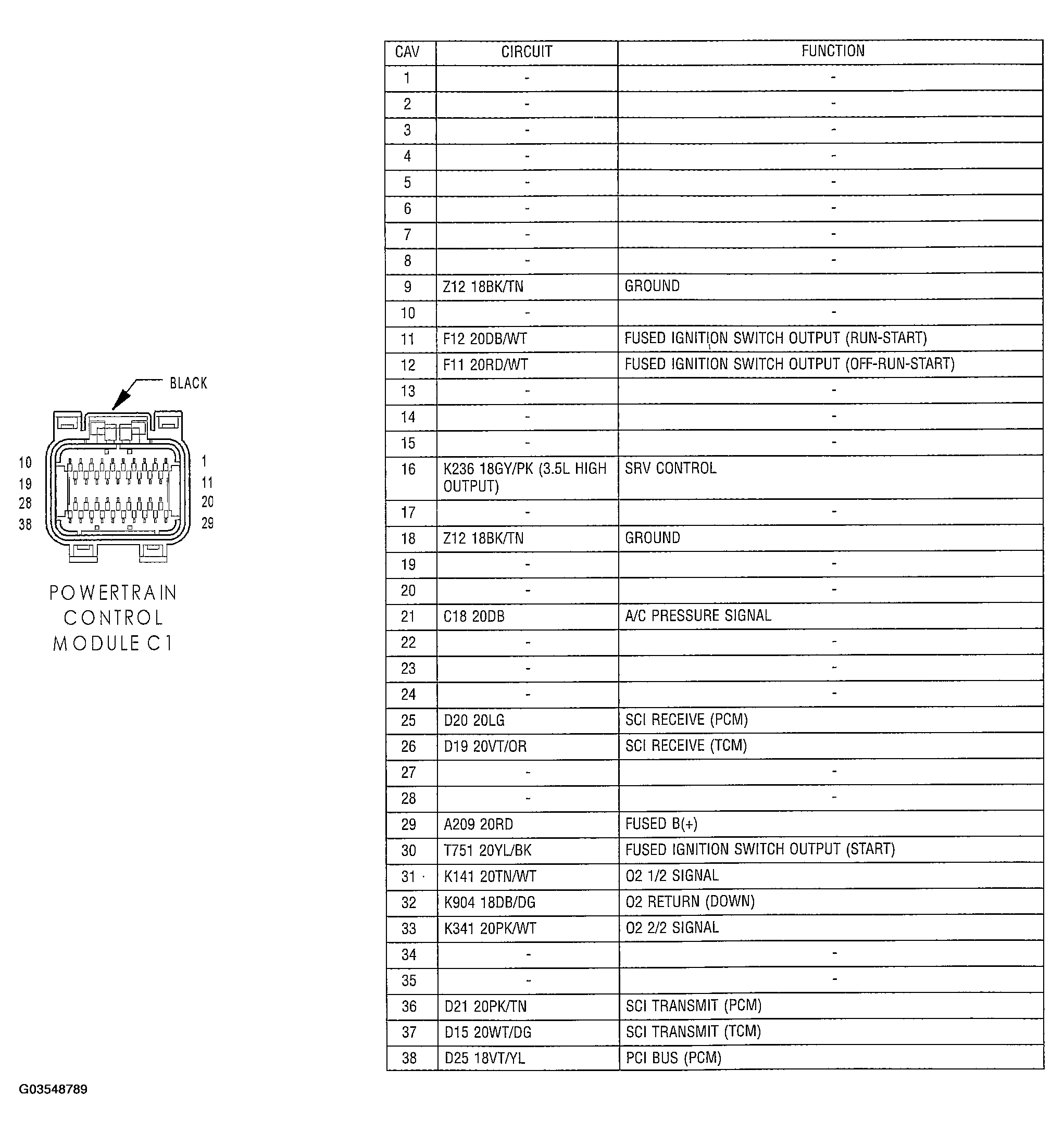

Fig 1: Powertrain Control Module C1
G03548789Courtesy of CHRYSLER GROUP, LLC
