Rear Window Defogger Relay Connector End View

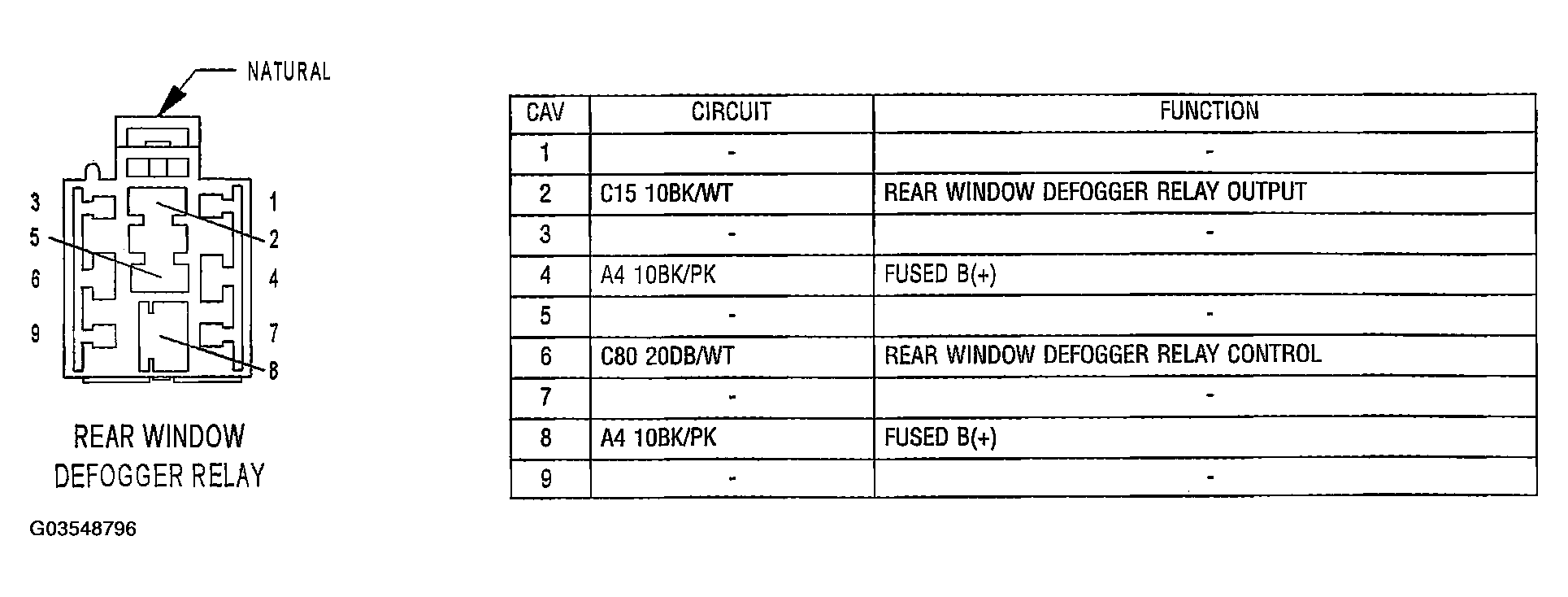

Fig 1: Rear Window Defogger Relay
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
