Right Speed Control Switch Connector End View

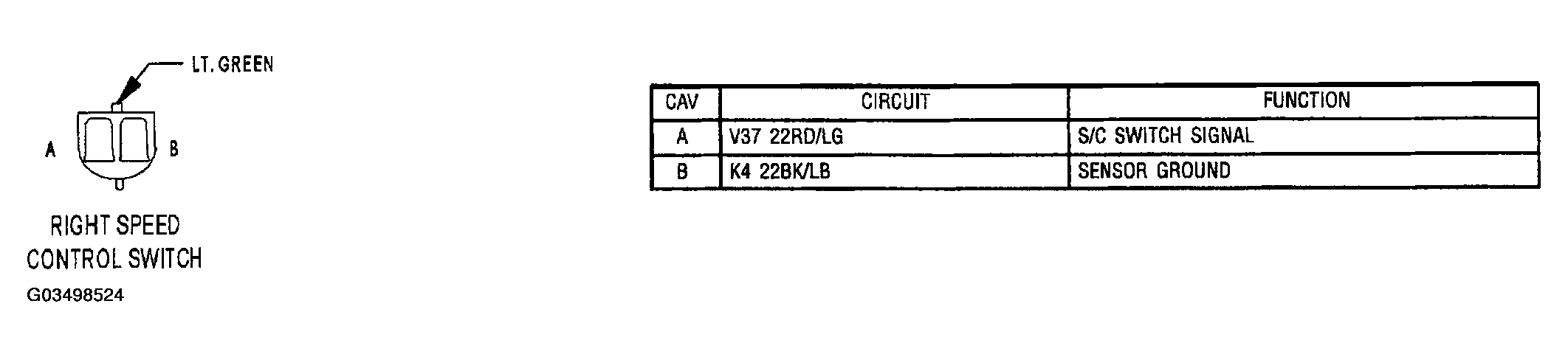

Fig 1: Right Speed Control Switch Connector End View
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
