Sentry Key Immobilizer Module Connector End View

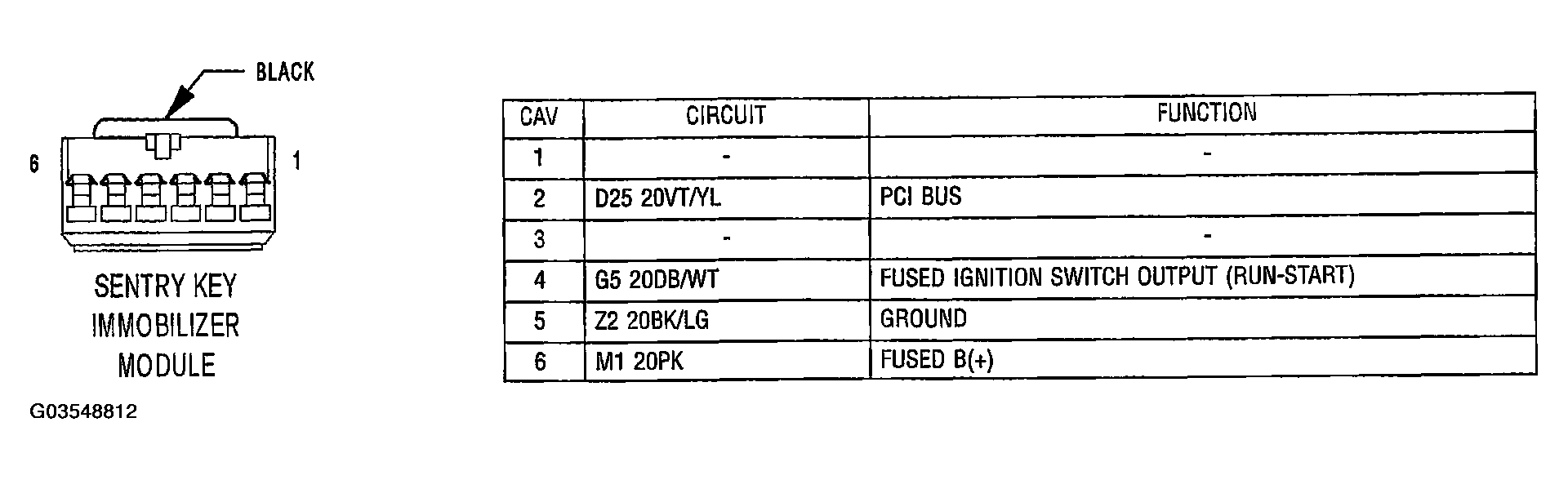

Fig 1: Sentry Key Immobilizer Module
G03548812Courtesy of CHRYSLER GROUP, LLC
