Sun Sensor/VTSS LED Connector End View

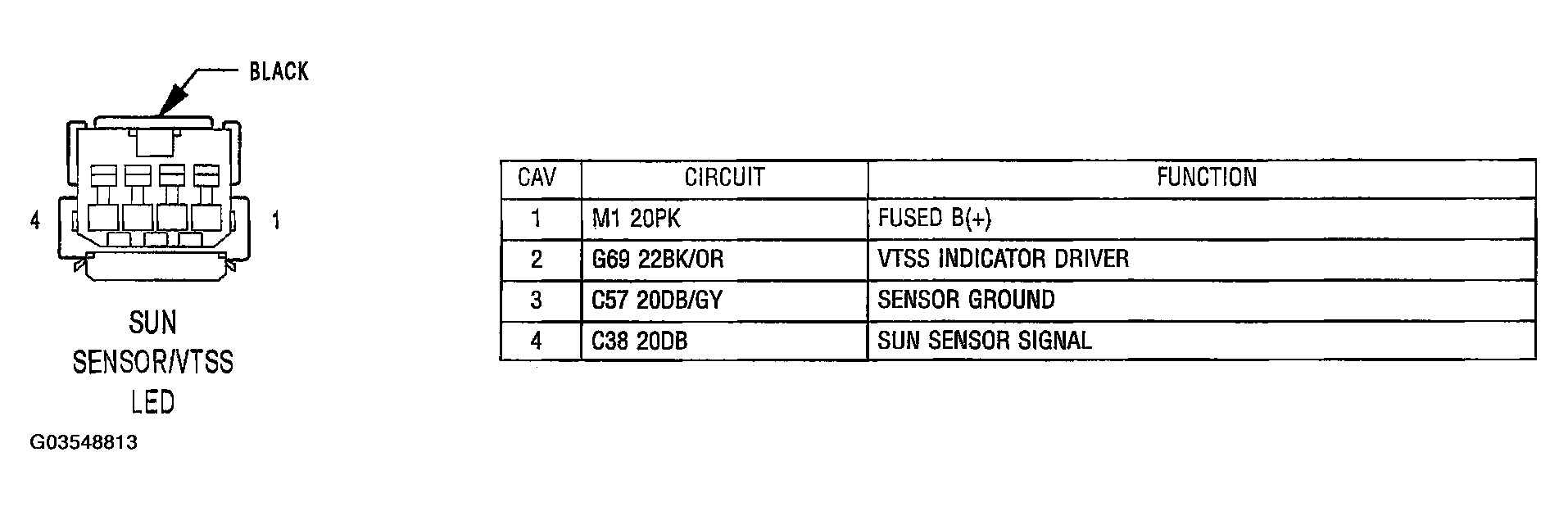

Fig 1: Sun Sensor/VTSS LED
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
