Turn Signal Switch / Hazard Switch Connector End View

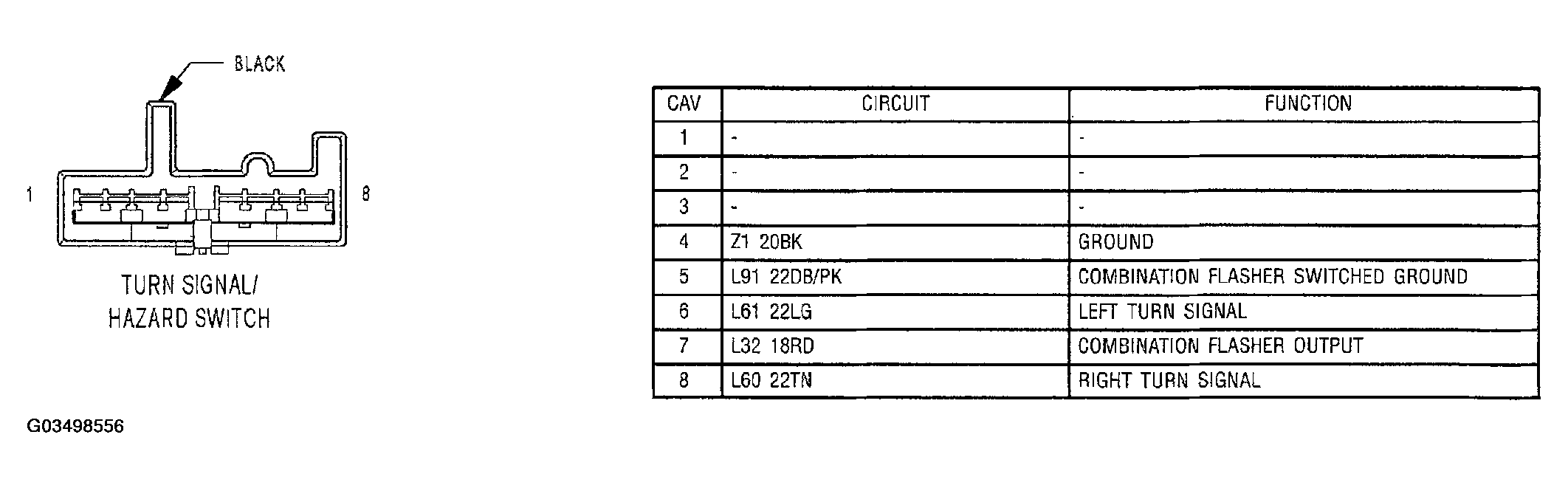

Fig 1: Turn Signal Switch / Hazard Switch Connector End View
G03498556Courtesy of CHRYSLER GROUP, LLC
